otb::MRFEnergy< TInput1, TInput2 > Class Template Reference

#include <otbMRFEnergy.h>

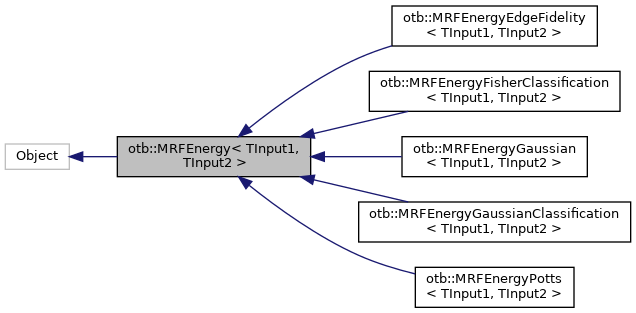

Inheritance diagram for otb::MRFEnergy< TInput1, TInput2 >:

Collaboration diagram for otb::MRFEnergy< TInput1, TInput2 >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef InputImageType::PixelType	InputImagePixelType
typedef TInput1	InputImageType
typedef itk::ConstNeighborhoodIterator< InputImageType >	InputNeighborhoodIterator
typedef LabelledImageType::PixelType	LabelledImagePixelType
typedef TInput2	LabelledImageType
typedef itk::ConstNeighborhoodIterator< LabelledImageType >	LabelledNeighborhoodIterator
typedef itk::Array< double >	ParametersType
typedef itk::SmartPointer< Self >	Pointer
typedef MRFEnergy	Self
typedef itk::Object	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
virtual unsigned int	GetNumberOfParameters () const
const ParametersType &	GetParameters (void) const
virtual double	GetSingleValue (const InputImagePixelType &, const LabelledImagePixelType &)
virtual double	GetValue (const InputImagePixelType &value1, const LabelledImagePixelType &value2)
virtual double	GetValue (const InputNeighborhoodIterator &it, const LabelledImagePixelType &value2)
virtual double	GetValue (const LabelledNeighborhoodIterator &it, const LabelledImagePixelType &value2)
virtual void	SetNumberOfParameters (unsigned int _arg)
void	SetParameters (const ParametersType &parameters)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	MRFEnergy ()
	~MRFEnergy () override

Protected Attributes
unsigned int	m_NumberOfParameters
ParametersType	m_Parameters

Detailed Description

template<class TInput1, class TInput2>
class otb::MRFEnergy< TInput1, TInput2 >

This is the base class for energy function used in the MRF framework.

Derived class must reimplement the GetSingleValue() method.

This class is meant to be used in the MRF framework with the otb::MarkovRandomFieldFilter

Definition at line 43 of file otbMRFEnergy.h.

Member Typedef Documentation

ConstPointer

template<class TInput1 , class TInput2 >

typedef itk::SmartPointer<const Self> otb::MRFEnergy< TInput1, TInput2 >::ConstPointer

Definition at line 49 of file otbMRFEnergy.h.

InputImagePixelType

template<class TInput1 , class TInput2 >

typedef InputImageType::PixelType otb::MRFEnergy< TInput1, TInput2 >::InputImagePixelType

Definition at line 53 of file otbMRFEnergy.h.

InputImageType

template<class TInput1 , class TInput2 >

typedef TInput1 otb::MRFEnergy< TInput1, TInput2 >::InputImageType

Definition at line 51 of file otbMRFEnergy.h.

InputNeighborhoodIterator

template<class TInput1 , class TInput2 >

typedef itk::ConstNeighborhoodIterator<InputImageType> otb::MRFEnergy< TInput1, TInput2 >::InputNeighborhoodIterator

Definition at line 57 of file otbMRFEnergy.h.

LabelledImagePixelType

template<class TInput1 , class TInput2 >

typedef LabelledImageType::PixelType otb::MRFEnergy< TInput1, TInput2 >::LabelledImagePixelType

Definition at line 54 of file otbMRFEnergy.h.

LabelledImageType

template<class TInput1 , class TInput2 >

typedef TInput2 otb::MRFEnergy< TInput1, TInput2 >::LabelledImageType

Definition at line 52 of file otbMRFEnergy.h.

LabelledNeighborhoodIterator

template<class TInput1 , class TInput2 >

typedef itk::ConstNeighborhoodIterator<LabelledImageType> otb::MRFEnergy< TInput1, TInput2 >::LabelledNeighborhoodIterator

Definition at line 56 of file otbMRFEnergy.h.

ParametersType

template<class TInput1 , class TInput2 >

typedef itk::Array<double> otb::MRFEnergy< TInput1, TInput2 >::ParametersType

Definition at line 59 of file otbMRFEnergy.h.

Pointer

template<class TInput1 , class TInput2 >

typedef itk::SmartPointer<Self> otb::MRFEnergy< TInput1, TInput2 >::Pointer

Definition at line 48 of file otbMRFEnergy.h.

Self

template<class TInput1 , class TInput2 >

typedef MRFEnergy otb::MRFEnergy< TInput1, TInput2 >::Self

Definition at line 46 of file otbMRFEnergy.h.

Superclass

template<class TInput1 , class TInput2 >

typedef itk::Object otb::MRFEnergy< TInput1, TInput2 >::Superclass

Definition at line 47 of file otbMRFEnergy.h.

Constructor & Destructor Documentation

MRFEnergy()

template<class TInput1 , class TInput2 >

otb::MRFEnergy< TInput1, TInput2 >::MRFEnergy ( )

inlineprotected

Definition at line 140 of file otbMRFEnergy.h.

~MRFEnergy()

template<class TInput1 , class TInput2 >

otb::MRFEnergy< TInput1, TInput2 >::~MRFEnergy ( )

inlineoverrideprotected

Definition at line 141 of file otbMRFEnergy.h.

Member Function Documentation

CreateAnother()

template<class TInput1 , class TInput2 >

virtual::itk::LightObject::Pointer otb::MRFEnergy< TInput1, TInput2 >::CreateAnother

(

void

)

const

GetNameOfClass()

template<class TInput1 , class TInput2 >

virtual const char* otb::MRFEnergy< TInput1, TInput2 >::GetNameOfClass ( ) const

virtual

Reimplemented in otb::MRFEnergyGaussian< TInput1, TInput2 >, otb::MRFEnergyPotts< TInput1, TInput2 >, otb::MRFEnergyEdgeFidelity< TInput1, TInput2 >, otb::MRFEnergyGaussianClassification< TInput1, TInput2 >, and otb::MRFEnergyFisherClassification< TInput1, TInput2 >.

GetNumberOfParameters()

template<class TInput1 , class TInput2 >

virtual unsigned int otb::MRFEnergy< TInput1, TInput2 >::GetNumberOfParameters ( ) const

virtual

GetParameters()

template<class TInput1 , class TInput2 >

const ParametersType& otb::MRFEnergy< TInput1, TInput2 >::GetParameters ( void  ) const

inline

Definition at line 69 of file otbMRFEnergy.h.

GetSingleValue()

template<class TInput1 , class TInput2 >

virtual double otb::MRFEnergy< TInput1, TInput2 >::GetSingleValue ( const InputImagePixelType &  , const LabelledImagePixelType &    )

inlinevirtual

Reimplemented in otb::MRFEnergyGaussianClassification< TInput1, TInput2 >, otb::MRFEnergyGaussian< TInput1, TInput2 >, otb::MRFEnergyPotts< TInput1, TInput2 >, otb::MRFEnergyFisherClassification< TInput1, TInput2 >, and otb::MRFEnergyEdgeFidelity< TInput1, TInput2 >.

Definition at line 84 of file otbMRFEnergy.h.

GetValue() [1/3]

template<class TInput1 , class TInput2 >

virtual double otb::MRFEnergy< TInput1, TInput2 >::GetValue ( const InputImagePixelType &  value1, const LabelledImagePixelType &  value2  )

inlinevirtual

Definition at line 89 of file otbMRFEnergy.h.

GetValue() [2/3]

template<class TInput1 , class TInput2 >

virtual double otb::MRFEnergy< TInput1, TInput2 >::GetValue ( const InputNeighborhoodIterator &  it, const LabelledImagePixelType &  value2  )

inlinevirtual

Definition at line 116 of file otbMRFEnergy.h.

GetValue() [3/3]

template<class TInput1 , class TInput2 >

virtual double otb::MRFEnergy< TInput1, TInput2 >::GetValue ( const LabelledNeighborhoodIterator &  it, const LabelledImagePixelType &  value2  )

inlinevirtual

Definition at line 94 of file otbMRFEnergy.h.

New()

template<class TInput1 , class TInput2 >

static Pointer otb::MRFEnergy< TInput1, TInput2 >::New ( )

static

SetNumberOfParameters()

template<class TInput1 , class TInput2 >

virtual void otb::MRFEnergy< TInput1, TInput2 >::SetNumberOfParameters ( unsigned int  _arg )

virtual

Reimplemented in otb::MRFEnergyGaussianClassification< TInput1, TInput2 >, and otb::MRFEnergyFisherClassification< TInput1, TInput2 >.

SetParameters()

template<class TInput1 , class TInput2 >

void otb::MRFEnergy< TInput1, TInput2 >::SetParameters ( const ParametersType &  parameters )

inline

Definition at line 74 of file otbMRFEnergy.h.

Member Data Documentation

m_NumberOfParameters

template<class TInput1 , class TInput2 >

unsigned int otb::MRFEnergy< TInput1, TInput2 >::m_NumberOfParameters

protected

Definition at line 144 of file otbMRFEnergy.h.

m_Parameters

template<class TInput1 , class TInput2 >

ParametersType otb::MRFEnergy< TInput1, TInput2 >::m_Parameters

protected

Definition at line 145 of file otbMRFEnergy.h.

---

The documentation for this class was generated from the following file:

• otbMRFEnergy.h
