otb::ogr::Field Class Reference

#include <otbOGRFieldWrapper.h>

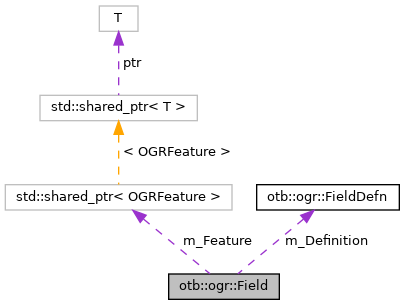

Collaboration diagram for otb::ogr::Field:

Public Member Functions
	Field (Feature &feature, int index)
FieldDefn const &	GetDefinition () const
OGRFieldType	GetType () const
std::string	GetName () const
bool	HasBeenSet () const
void	Unset () const
template<typename T >
void	SetValue (T const &value)
template<typename T >
T	GetValue () const
std::ostream &	PrintSelf (std::ostream &os, itk::Indent indent) const
void	Assign (Field const &f)
OGRField &	ogr ()
OGRField &	ogr () const

Unchecked definitions
All the definitions that follow do the real work. However, they are not the exposed public functions. The design of this class follows the principle behind the NVI (Non-Virtual Interface) pattern: The public functions are inlined and check invariants and preconditions, While the private functions do the work.
FieldDefn	m_Definition
std::shared_ptr< OGRFeature > &	m_Feature
int	m_index
bool	UncheckedHasBeenSet () const
void	UncheckedUnset () const
std::ostream &	UncheckedPrintSelf (std::ostream &os, itk::Indent indent) const
void	UncheckedAssign (Field const &f)
void	CheckInvariants () const

Detailed Description

Encapsulation of OGRField Instances of Field are expected to be built from an existing Feature with which they'll share their owning OGRFeature.

A Field instance works as a proxy. Copying a field will only have it share the actual OGRField between several instances. In order to copy a field value from another field, use Field::assign().

Invariant

m_Feature shall be valid (i.e. not wrapping a null OGRFeature).

m_index < m_Feature->GetFieldCount().

m_Feature->GetFieldDefnRef(m_index) != 0.

See also

OGRField

Since

OTB v 3.14.0

Definition at line 117 of file otbOGRFieldWrapper.h.

Constructor & Destructor Documentation

Field()

otb::ogr::Field::Field	(	Feature &	feature,
		int	index
	)

Constructor.

Parameters

[in,out]	feature	Feature from which the field is.
[in]	index	Index of the field in the Feature.

Exceptions

None

Member Function Documentation

Assign()

void otb::ogr::Field::Assign ( Field const &  f )

inline

Copies a field. As Field is a proxy type, this function is the only possible way to copy a field.

First, the field must be defined with a definition, then it could be set from another field value.

Field srcField = srcFeature[42];
Feature dstFeature(layerDefinition);
Field dst(dstFeature, 12);
dstField.Assign(srcField);

Definition at line 495 of file otbOGRFieldWrapper.hxx.

References CheckInvariants(), and GetType().

CheckInvariants()

void otb::ogr::Field::CheckInvariants ( ) const

inlineprivate

Internal function to check class invariants. If any invariant is broken, an assertion will be fired.

Definition at line 435 of file otbOGRFieldWrapper.hxx.

References m_Feature, and m_index.

Referenced by Assign().

GetDefinition()

FieldDefn const& otb::ogr::Field::GetDefinition ( ) const

inline

Field definition accessor.

Definition at line 129 of file otbOGRFieldWrapper.h.

GetName()

std::string otb::ogr::Field::GetName ( ) const

inline

Field name accessor.

Definition at line 139 of file otbOGRFieldWrapper.h.

GetType()

OGRFieldType otb::ogr::Field::GetType ( ) const

inline

Field type accessor.

Definition at line 134 of file otbOGRFieldWrapper.h.

Referenced by Assign(), and otb::OGRLayerStreamStitchingFilter< TInputImage >::ProcessStreamingLine().

GetValue()

template<typename T >

T otb::ogr::Field::GetValue

inline

Value getter.

Template Parameters

T	expected type for the stored value.

Exceptions

None

Precondition

T must match the field's type.

The field must have set.

Definition at line 463 of file otbOGRFieldWrapper.hxx.

Referenced by otb::OGRLayerStreamStitchingFilter< TInputImage >::ProcessStreamingLine(), and otb::PersistentImageToOGRLayerSegmentationFilter< TImageType, TSegmentationFilter >::ProcessTile().

HasBeenSet()

bool otb::ogr::Field::HasBeenSet ( ) const

inline

Tells whether the field value has been set.

Definition at line 483 of file otbOGRFieldWrapper.hxx.

ogr() [1/2]

OGRField & otb::ogr::Field::ogr ( )

inline

Access to the raw underlying OGR data. This function provides an abstraction leak in case deeper control on the underlying OGRFeature is required.

Warning

You must under no circumstance try to delete the OGRField obtained this way.

Definition at line 508 of file otbOGRFieldWrapper.hxx.

ogr() [2/2]

OGRField& otb::ogr::Field::ogr

(

)

const

Access to the raw underlying OGR data. This function provides an abstraction leak in case deeper control on the underlying OGRFeature is required.

Warning

You must under no circumstance try to delete the OGRField obtained this way.

PrintSelf()

std::ostream & otb::ogr::Field::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

inline

Prints self into stream.

Definition at line 477 of file otbOGRFieldWrapper.hxx.

SetValue()

template<typename T >

void otb::ogr::Field::SetValue ( T const &  value )

inline

Value setter.

Parameters

[in]

value

New value for the field.

Exceptions

None

Precondition

value's kind must match the field's type.

Definition at line 443 of file otbOGRFieldWrapper.hxx.

Referenced by otb::PersistentImageToOGRLayerSegmentationFilter< TImageType, TSegmentationFilter >::ProcessTile().

UncheckedAssign()

void otb::ogr::Field::UncheckedAssign ( Field const &  f )

private

Definition of the field.

UncheckedHasBeenSet()

bool otb::ogr::Field::UncheckedHasBeenSet ( ) const

private

Definition of the field.

UncheckedPrintSelf()

std::ostream& otb::ogr::Field::UncheckedPrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

private

Definition of the field.

UncheckedUnset()

void otb::ogr::Field::UncheckedUnset ( ) const

private

Definition of the field.

Unset()

void otb::ogr::Field::Unset ( ) const

inline

Unsets the value of the field.

Definition at line 489 of file otbOGRFieldWrapper.hxx.

Member Data Documentation

m_Definition

FieldDefn otb::ogr::Field::m_Definition

private

Definition of the field.

Definition at line 231 of file otbOGRFieldWrapper.h.

m_Feature

std::shared_ptr<OGRFeature>& otb::ogr::Field::m_Feature

private

Link to the actual OGRFeature in charge of the fields.

Definition at line 233 of file otbOGRFieldWrapper.h.

Referenced by CheckInvariants().

m_index

int otb::ogr::Field::m_index

private

Index of the field according to the feature definition.

Definition at line 240 of file otbOGRFieldWrapper.h.

Referenced by CheckInvariants().

---

The documentation for this class was generated from the following files:

• otbOGRFieldWrapper.h
• otbOGRFieldWrapper.hxx
