otb::VariadicInputsImageFilter< TOuptut, TInputs > Class Template Reference

#include <otbVariadicInputsImageFilter.h>

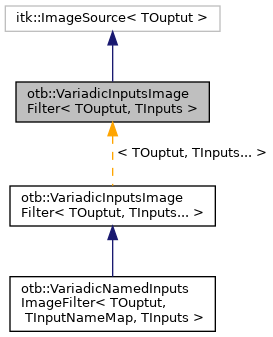

Inheritance diagram for otb::VariadicInputsImageFilter< TOuptut, TInputs >:

Collaboration diagram for otb::VariadicInputsImageFilter< TOuptut, TInputs >:

Public Types
using	ConstPointer = itk::SmartPointer< const Self >
template<vcl_size_t I>
using	InputImageType = typename std::tuple_element< I, InputTypesTupleType >::type
using	InputTypesTupleType = std::tuple< TInputs... >
using	Pointer = itk::SmartPointer< Self >
using	Self = VariadicInputsImageFilter< TOuptut, TInputs... >
using	Superclass = itk::ImageSource< TOuptut >

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static constexpr vcl_size_t	NumberOfInputs = std::tuple_size<InputTypesTupleType>::value
template<std::vcl_size_t I = 0>
void	SetInput (const InputImageType< I > *inputPtr)
	DefineLegacySetInputMacro (1)
	DefineLegacySetInputMacro (2)
	DefineLegacySetInputMacro (3)
	DefineLegacySetInputMacro (4)
	DefineLegacySetInputMacro (5)
	DefineLegacySetInputMacro (6)
	DefineLegacySetInputMacro (7)
	DefineLegacySetInputMacro (8)
	DefineLegacySetInputMacro (9)
	DefineLegacySetInputMacro (10)
template<std::vcl_size_t I = 0>
const InputImageType< I > *	GetInput ()
void	SetInputs (TInputs *... inputs)
auto	GetInputs ()
	VariadicInputsImageFilter ()
	~VariadicInputsImageFilter ()=default
template<class Tuple , vcl_size_t... Is>
void	SetInputsImpl (Tuple &t, std::index_sequence< Is... >)
template<vcl_size_t... Is>
auto	GetInputsImpl (std::index_sequence< Is... >)
	VariadicInputsImageFilter (const Self &)=delete
void	operator= (const Self &)=delete

Detailed Description

template<class TOuptut, class... TInputs>
class otb::VariadicInputsImageFilter< TOuptut, TInputs >

Base class for image filter with variadic inputs.

This filter act as a base class for all filters that will take several input images with different types and produce an output image.

Type for each input is taken from the variadic template parameter TInputs.

Inputs get be set/get with SetInput<N>() and GetInput<N>(), when N is the index (first input is 0) of the input. This is resolved at compile time: you can not call SetInput<N>() with an argument not matching the Nth input type (it will lead to type mismatch compilation error).

Note that you can also call SetInput() and GetInput() which will automatically fetch the first input.

Alternatively, you can call SetInputs() with all the input image in the same order as in the template parameters.

Last, there is a macro that generates SetInput1() ... SetInput10() (iff the number of varidic input types is large enough) for backward compatibility.

Definition at line 58 of file otbVariadicInputsImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TOuptut , class... TInputs>

using otb::VariadicInputsImageFilter< TOuptut, TInputs >::ConstPointer = itk::SmartPointer<const Self>

Definition at line 63 of file otbVariadicInputsImageFilter.h.

InputImageType

template<class TOuptut , class... TInputs>

template<vcl_size_t I>

using otb::VariadicInputsImageFilter< TOuptut, TInputs >::InputImageType = typename std::tuple_element<I, InputTypesTupleType>::type

Definition at line 70 of file otbVariadicInputsImageFilter.h.

InputTypesTupleType

template<class TOuptut , class... TInputs>

using otb::VariadicInputsImageFilter< TOuptut, TInputs >::InputTypesTupleType = std::tuple<TInputs...>

Definition at line 67 of file otbVariadicInputsImageFilter.h.

Pointer

template<class TOuptut , class... TInputs>

using otb::VariadicInputsImageFilter< TOuptut, TInputs >::Pointer = itk::SmartPointer<Self>

Definition at line 62 of file otbVariadicInputsImageFilter.h.

Self

template<class TOuptut , class... TInputs>

using otb::VariadicInputsImageFilter< TOuptut, TInputs >::Self = VariadicInputsImageFilter<TOuptut, TInputs...>

Definition at line 61 of file otbVariadicInputsImageFilter.h.

Superclass

template<class TOuptut , class... TInputs>

using otb::VariadicInputsImageFilter< TOuptut, TInputs >::Superclass = itk::ImageSource<TOuptut>

Definition at line 64 of file otbVariadicInputsImageFilter.h.

Constructor & Destructor Documentation

VariadicInputsImageFilter() [1/2]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::VariadicInputsImageFilter ( )

inlineprotected

Parameters

Set	the Ith input

Definition at line 141 of file otbVariadicInputsImageFilter.h.

~VariadicInputsImageFilter()

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::~VariadicInputsImageFilter ( )

protecteddefault

Parameters

Set	the Ith input

VariadicInputsImageFilter() [2/2]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::VariadicInputsImageFilter ( const Self &  )

privatedelete

Parameters

Set	the Ith input

Member Function Documentation

CreateAnother()

template<class TOuptut , class... TInputs>

virtual::itk::LightObject::Pointer otb::VariadicInputsImageFilter< TOuptut, TInputs >::CreateAnother

(

void

)

const

DefineLegacySetInputMacro() [1/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

1

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [2/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

10

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [3/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

2

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [4/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

3

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [5/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

4

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [6/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

5

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [7/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

6

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [8/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

7

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [9/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

8

)

Parameters

Set	the Ith input

DefineLegacySetInputMacro() [10/10]

template<class TOuptut , class... TInputs>

otb::VariadicInputsImageFilter< TOuptut, TInputs >::DefineLegacySetInputMacro

(

9

)

Parameters

Set	the Ith input

GetInput()

template<class TOuptut , class... TInputs>

template<std::vcl_size_t I = 0>

const InputImageType<I>* otb::VariadicInputsImageFilter< TOuptut, TInputs >::GetInput ( )

inline

Parameters

Set	the Ith input

Definition at line 115 of file otbVariadicInputsImageFilter.h.

Referenced by otb::VariadicInputsImageFilter< TOuptut, TInputs... >::GetInput().

GetInputs()

template<class TOuptut , class... TInputs>

auto otb::VariadicInputsImageFilter< TOuptut, TInputs >::GetInputs ( )

inline

Returns

A tuple with all inputs

Definition at line 134 of file otbVariadicInputsImageFilter.h.

GetInputsImpl()

template<class TOuptut , class... TInputs>

template<vcl_size_t... Is>

auto otb::VariadicInputsImageFilter< TOuptut, TInputs >::GetInputsImpl ( std::index_sequence< Is... >  )

inlineprivate

Parameters

Set	the Ith input

Definition at line 158 of file otbVariadicInputsImageFilter.h.

Referenced by otb::VariadicInputsImageFilter< TOuptut, TInputs... >::GetInputs().

New()

template<class TOuptut , class... TInputs>

static Pointer otb::VariadicInputsImageFilter< TOuptut, TInputs >::New ( )

static

operator=()

template<class TOuptut , class... TInputs>

void otb::VariadicInputsImageFilter< TOuptut, TInputs >::operator= ( const Self &  )

privatedelete

Parameters

Set	the Ith input

SetInput()

template<class TOuptut , class... TInputs>

template<std::vcl_size_t I = 0>

void otb::VariadicInputsImageFilter< TOuptut, TInputs >::SetInput ( const InputImageType< I > *  inputPtr )

inline

Parameters

Set	the Ith input

Definition at line 85 of file otbVariadicInputsImageFilter.h.

SetInputs()

template<class TOuptut , class... TInputs>

void otb::VariadicInputsImageFilter< TOuptut, TInputs >::SetInputs ( TInputs *...  inputs )

inline

Parameters

inputs

A vararg list of inputs

Definition at line 124 of file otbVariadicInputsImageFilter.h.

SetInputsImpl()

template<class TOuptut , class... TInputs>

template<class Tuple , vcl_size_t... Is>

void otb::VariadicInputsImageFilter< TOuptut, TInputs >::SetInputsImpl ( Tuple &  t, std::index_sequence< Is... >    )

inlineprivate

Parameters

Set	the Ith input

Definition at line 150 of file otbVariadicInputsImageFilter.h.

Referenced by otb::VariadicInputsImageFilter< TOuptut, TInputs... >::SetInputs().

Member Data Documentation

NumberOfInputs

template<class TOuptut , class... TInputs>

constexpr vcl_size_t otb::VariadicInputsImageFilter< TOuptut, TInputs >::NumberOfInputs = std::tuple_size<InputTypesTupleType>::value

staticconstexpr

Definition at line 71 of file otbVariadicInputsImageFilter.h.

Referenced by otb::VariadicInputsImageFilter< TOuptut, TInputs... >::GetInput(), and otb::VariadicInputsImageFilter< TOuptut, TInputs... >::SetInput().

---

The documentation for this class was generated from the following file:

• otbVariadicInputsImageFilter.h
