#include <otbTileImageFilter.h>

Inheritance diagram for otb::TileImageFilter< TImage >:

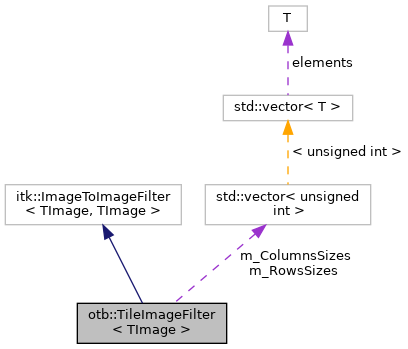

Collaboration diagram for otb::TileImageFilter< TImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef ImageType::Pointer	ImagePointerType

typedef TImage	ImageType

typedef itk::SmartPointer< Self >	Pointer

typedef ImageType::RegionType	RegionType

typedef TileImageFilter	Self

typedef ImageType::SizeType	SizeType

typedef itk::ImageToImageFilter< TImage, TImage >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const SizeType &	GetLayout () const

virtual const char *	GetNameOfClass () const

virtual void	SetLayout (SizeType _arg)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
void	GenerateInputRequestedRegion () override

void	GenerateOutputInformation () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	ThreadedGenerateData (const RegionType &outputRegionForThread, itk::ThreadIdType threadId) override

	TileImageFilter ()

void	VerifyInputInformation () override

	~TileImageFilter () override

Private Member Functions
RegionType	InputRegionToOutputRegion (unsigned int tileIndex, const RegionType &requestedRegion)

void	operator= (const Self &)=delete

RegionType	OutputRegionToInputRegion (unsigned int tileIndex, const RegionType &requestedRegion)

	TileImageFilter (const Self &)=delete

Private Attributes
std::vector< unsigned int >	m_ColumnsSizes

SizeType	m_Layout

std::vector< unsigned int >	m_RowsSizes

Detailed Description

template<class TImage>
class otb::TileImageFilter< TImage >

This filter allows making a spatial mosaic from a set of images.

This filter produces a spatial mosaic from a set of images. It supports both otb::Image and otb::VectorImage. The layout parameter allows setting up of the images will be patched together: it is a 2D array containing the number of images in the horizontal direction and vertical direction respectively.

Images can be set using the PushBackInput() or SetInput(unsigned int, Image *) methods. Please note that input images are supposed to be set in the lexicographical order.

This filter does not support missing images: the number of input images must match exactly layout[0]*layout[1]. Additional consistency checks are that the number of components and spacing must be consistent for all images, and the size of the images must match with each others.

Definition at line 53 of file otbTileImageFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TImage >

typedef itk::SmartPointer<const Self> otb::TileImageFilter< TImage >::ConstPointer

Definition at line 60 of file otbTileImageFilter.h.

◆ ImagePointerType

template<class TImage >

typedef ImageType::Pointer otb::TileImageFilter< TImage >::ImagePointerType

Definition at line 64 of file otbTileImageFilter.h.

◆ ImageType

template<class TImage >

typedef TImage otb::TileImageFilter< TImage >::ImageType

Helper typedefs

Definition at line 63 of file otbTileImageFilter.h.

◆ Pointer

template<class TImage >

typedef itk::SmartPointer<Self> otb::TileImageFilter< TImage >::Pointer

Definition at line 59 of file otbTileImageFilter.h.

◆ RegionType

template<class TImage >

typedef ImageType::RegionType otb::TileImageFilter< TImage >::RegionType

Definition at line 66 of file otbTileImageFilter.h.

◆ Self

template<class TImage >

typedef TileImageFilter otb::TileImageFilter< TImage >::Self

Standard class typedef

Definition at line 57 of file otbTileImageFilter.h.

◆ SizeType

template<class TImage >

typedef ImageType::SizeType otb::TileImageFilter< TImage >::SizeType

Definition at line 65 of file otbTileImageFilter.h.

◆ Superclass

template<class TImage >

typedef itk::ImageToImageFilter<TImage, TImage> otb::TileImageFilter< TImage >::Superclass

Definition at line 58 of file otbTileImageFilter.h.

Constructor & Destructor Documentation

◆ TileImageFilter() [1/2]

template<class TImage >

otb::TileImageFilter< TImage >::TileImageFilter

protected

Constructor

Definition at line 30 of file otbTileImageFilter.hxx.

◆ ~TileImageFilter()

template<class TImage >

otb::TileImageFilter< TImage >::~TileImageFilter

overrideprotected

Destructor

Definition at line 35 of file otbTileImageFilter.hxx.

◆ TileImageFilter() [2/2]

template<class TImage >

otb::TileImageFilter< TImage >::TileImageFilter ( const Self & )

privatedelete

Member Function Documentation

◆ CreateAnother()

template<class TImage >

virtual::itk::LightObject::Pointer otb::TileImageFilter< TImage >::CreateAnother ( void ) const

◆ GenerateInputRequestedRegion()

template<class TImage >

void otb::TileImageFilter< TImage >::GenerateInputRequestedRegion

overrideprotected

Generate input requested region method

Definition at line 134 of file otbTileImageFilter.hxx.

◆ GenerateOutputInformation()

template<class TImage >

void otb::TileImageFilter< TImage >::GenerateOutputInformation

overrideprotected

Generate input requested region method

Definition at line 47 of file otbTileImageFilter.hxx.

◆ GetLayout()

template<class TImage >

virtual const SizeType& otb::TileImageFilter< TImage >::GetLayout ( ) const

virtual

◆ GetNameOfClass()

template<class TImage >

virtual const char* otb::TileImageFilter< TImage >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented in otb::SarConcatenateBurstsImageFilter< TImage >.

◆ InputRegionToOutputRegion()

template<class TImage >

TileImageFilter< TImage >::RegionType otb::TileImageFilter< TImage >::InputRegionToOutputRegion	(	unsigned int	tileIndex,
		const RegionType &	requestedRegion
	)

private

Definition at line 241 of file otbTileImageFilter.hxx.

◆ New()

template<class TImage >

static Pointer otb::TileImageFilter< TImage >::New ( )

static

Method for creation through the object factory.

◆ operator=()

template<class TImage >

void otb::TileImageFilter< TImage >::operator= ( const Self & )

privatedelete

◆ OutputRegionToInputRegion()

template<class TImage >

TileImageFilter< TImage >::RegionType otb::TileImageFilter< TImage >::OutputRegionToInputRegion	(	unsigned int	tileIndex,
		const RegionType &	requestedRegion
	)

private

Definition at line 200 of file otbTileImageFilter.hxx.

◆ PrintSelf()

template<class TImage >

void otb::TileImageFilter< TImage >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

PrintSelf method

Definition at line 40 of file otbTileImageFilter.hxx.

◆ SetLayout()

template<class TImage >

virtual void otb::TileImageFilter< TImage >::SetLayout ( SizeType _arg )

virtual

◆ ThreadedGenerateData()

template<class TImage >

void otb::TileImageFilter< TImage >::ThreadedGenerateData	(	const RegionType &	outputRegionForThread,
		itk::ThreadIdType	threadId
	)

overrideprotected

Threaded generate data

Definition at line 160 of file otbTileImageFilter.hxx.

◆ VerifyInputInformation()

template<class TImage >

void otb::TileImageFilter< TImage >::VerifyInputInformation ( )

inlineoverrideprotected

Override VerifyInputInformation() since this filter's inputs do not need to occupy the same physical space.

See also: ProcessObject::VerifyInputInformation

Definition at line 101 of file otbTileImageFilter.h.

Member Data Documentation

◆ m_ColumnsSizes

template<class TImage >

std::vector<unsigned int> otb::TileImageFilter< TImage >::m_ColumnsSizes

private

Definition at line 120 of file otbTileImageFilter.h.

◆ m_Layout

template<class TImage >

SizeType otb::TileImageFilter< TImage >::m_Layout

private

Definition at line 117 of file otbTileImageFilter.h.

◆ m_RowsSizes

template<class TImage >

std::vector<unsigned int> otb::TileImageFilter< TImage >::m_RowsSizes

private

Definition at line 123 of file otbTileImageFilter.h.
