otb::SarDeburstImageFilter< TImage > Class Template Reference

#include <otbSarDeburstImageFilter.h>

Inheritance diagram for otb::SarDeburstImageFilter< TImage >:

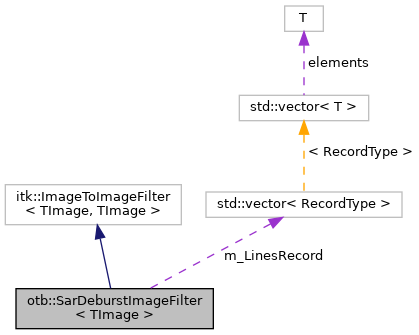

Collaboration diagram for otb::SarDeburstImageFilter< TImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef TImage	ImageType
typedef std::vector< RecordType >	LinesRecordVectorType
typedef itk::SmartPointer< Self >	Pointer
typedef ImageType::PointType	PointType
typedef std::pair< unsigned long, unsigned long >	RecordType
typedef ImageType::RegionType	RegionType
typedef SarDeburstImageFilter	Self
typedef itk::ImageToImageFilter< TImage, TImage >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
virtual void	SetOnlyValidSample (bool _arg)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
virtual void	GenerateInputRequestedRegion () override
virtual void	GenerateOutputInformation () override
RegionType	OutputRegionToInputRegion (const RegionType &outputRegion) const
	SarDeburstImageFilter ()
virtual void	ThreadedGenerateData (const RegionType &outputRegionForThread, itk::ThreadIdType threadId) override
void	ThreadedGenerateDataWithAllSamples (const RegionType &outputRegionForThread, itk::ThreadIdType threadId)
void	ThreadedGenerateDataWithOnlyValidSamples (const RegionType &outputRegionForThread, itk::ThreadIdType threadId)
virtual	~SarDeburstImageFilter () override

Private Member Functions
void	operator= (const Self &)=delete
	SarDeburstImageFilter (const Self &)=delete

Private Attributes
LinesRecordVectorType	m_LinesRecord
bool	m_OnlyValidSample
RecordType	m_SamplesRecord

Detailed Description

template<class TImage>
class otb::SarDeburstImageFilter< TImage >

Performs a deburst operation by removing redundant lines.

This filter performs a deburst operation by removing redundant lines between burst. This operation is useful when dealing with Sentinel1 IW SLC products, where each subswath is composed of several overlapping burst separated by black lines. Lines to remove are computed by SAR sensor model in OSSIM plugins. The output image is smaller in azimuth direction than the input line, because of removed lines. Note that the output sensor model is updated accordingly. This deburst filter is the perfect preprocessing step to orthorectify S1 IW SLC product with OTB without suffering from artifacts caused by bursts separation.

Note that currently only Sentinel1 IW SLC products are supported.

Definition at line 49 of file otbSarDeburstImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TImage >

typedef itk::SmartPointer<const Self> otb::SarDeburstImageFilter< TImage >::ConstPointer

Definition at line 56 of file otbSarDeburstImageFilter.h.

ImageType

template<class TImage >

typedef TImage otb::SarDeburstImageFilter< TImage >::ImageType

Definition at line 59 of file otbSarDeburstImageFilter.h.

LinesRecordVectorType

template<class TImage >

typedef std::vector<RecordType> otb::SarDeburstImageFilter< TImage >::LinesRecordVectorType

Definition at line 66 of file otbSarDeburstImageFilter.h.

Pointer

template<class TImage >

typedef itk::SmartPointer<Self> otb::SarDeburstImageFilter< TImage >::Pointer

Definition at line 55 of file otbSarDeburstImageFilter.h.

PointType

template<class TImage >

typedef ImageType::PointType otb::SarDeburstImageFilter< TImage >::PointType

Definition at line 63 of file otbSarDeburstImageFilter.h.

RecordType

template<class TImage >

typedef std::pair<unsigned long, unsigned long> otb::SarDeburstImageFilter< TImage >::RecordType

Definition at line 65 of file otbSarDeburstImageFilter.h.

RegionType

template<class TImage >

typedef ImageType::RegionType otb::SarDeburstImageFilter< TImage >::RegionType

Definition at line 62 of file otbSarDeburstImageFilter.h.

Self

template<class TImage >

typedef SarDeburstImageFilter otb::SarDeburstImageFilter< TImage >::Self

Definition at line 53 of file otbSarDeburstImageFilter.h.

Superclass

template<class TImage >

typedef itk::ImageToImageFilter<TImage, TImage> otb::SarDeburstImageFilter< TImage >::Superclass

Definition at line 54 of file otbSarDeburstImageFilter.h.

Constructor & Destructor Documentation

SarDeburstImageFilter() [1/2]

template<class TImage >

otb::SarDeburstImageFilter< TImage >::SarDeburstImageFilter

protected

Definition at line 36 of file otbSarDeburstImageFilter.hxx.

~SarDeburstImageFilter()

template<class TImage >

virtual otb::SarDeburstImageFilter< TImage >::~SarDeburstImageFilter ( )

inlineoverrideprotectedvirtual

Definition at line 76 of file otbSarDeburstImageFilter.h.

SarDeburstImageFilter() [2/2]

template<class TImage >

otb::SarDeburstImageFilter< TImage >::SarDeburstImageFilter ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

template<class TImage >

virtual::itk::LightObject::Pointer otb::SarDeburstImageFilter< TImage >::CreateAnother

(

void

)

const

GenerateInputRequestedRegion()

template<class TImage >

void otb::SarDeburstImageFilter< TImage >::GenerateInputRequestedRegion

overrideprotectedvirtual

Definition at line 207 of file otbSarDeburstImageFilter.hxx.

GenerateOutputInformation()

template<class TImage >

void otb::SarDeburstImageFilter< TImage >::GenerateOutputInformation

overrideprotectedvirtual

Definition at line 42 of file otbSarDeburstImageFilter.hxx.

References otb::SarSensorModel::Deburst(), otb::SarSensorModel::ImageLineToDeburstLine(), otb::NumberOfColumns, otb::NumberOfLines, and otb::SarSensorModel::UpdateImageMetadata().

GetNameOfClass()

template<class TImage >

virtual const char* otb::SarDeburstImageFilter< TImage >::GetNameOfClass ( ) const

virtual

New()

template<class TImage >

static Pointer otb::SarDeburstImageFilter< TImage >::New ( )

static

operator=()

template<class TImage >

void otb::SarDeburstImageFilter< TImage >::operator= ( const Self &  )

privatedelete

OutputRegionToInputRegion()

template<class TImage >

SarDeburstImageFilter< TImage >::RegionType otb::SarDeburstImageFilter< TImage >::OutputRegionToInputRegion ( const RegionType &  outputRegion ) const

protected

Definition at line 156 of file otbSarDeburstImageFilter.hxx.

References otb::SarSensorModel::DeburstLineToImageLine().

SetOnlyValidSample()

template<class TImage >

virtual void otb::SarDeburstImageFilter< TImage >::SetOnlyValidSample ( bool  _arg )

virtual

ThreadedGenerateData()

template<class TImage >

void otb::SarDeburstImageFilter< TImage >::ThreadedGenerateData ( const RegionType &  outputRegionForThread, itk::ThreadIdType  threadId  )

overrideprotectedvirtual

Definition at line 219 of file otbSarDeburstImageFilter.hxx.

ThreadedGenerateDataWithAllSamples()

template<class TImage >

void otb::SarDeburstImageFilter< TImage >::ThreadedGenerateDataWithAllSamples ( const RegionType &  outputRegionForThread, itk::ThreadIdType  threadId  )

protected

Definition at line 233 of file otbSarDeburstImageFilter.hxx.

ThreadedGenerateDataWithOnlyValidSamples()

template<class TImage >

void otb::SarDeburstImageFilter< TImage >::ThreadedGenerateDataWithOnlyValidSamples ( const RegionType &  outputRegionForThread, itk::ThreadIdType  threadId  )

protected

Definition at line 276 of file otbSarDeburstImageFilter.hxx.

Member Data Documentation

m_LinesRecord

template<class TImage >

LinesRecordVectorType otb::SarDeburstImageFilter< TImage >::m_LinesRecord

private

Definition at line 97 of file otbSarDeburstImageFilter.h.

m_OnlyValidSample

template<class TImage >

bool otb::SarDeburstImageFilter< TImage >::m_OnlyValidSample

private

Definition at line 102 of file otbSarDeburstImageFilter.h.

m_SamplesRecord

template<class TImage >

RecordType otb::SarDeburstImageFilter< TImage >::m_SamplesRecord

private

Definition at line 100 of file otbSarDeburstImageFilter.h.

---

The documentation for this class was generated from the following files:

• otbSarDeburstImageFilter.h
• otbSarDeburstImageFilter.hxx
