#include <otbSOMMap.h>

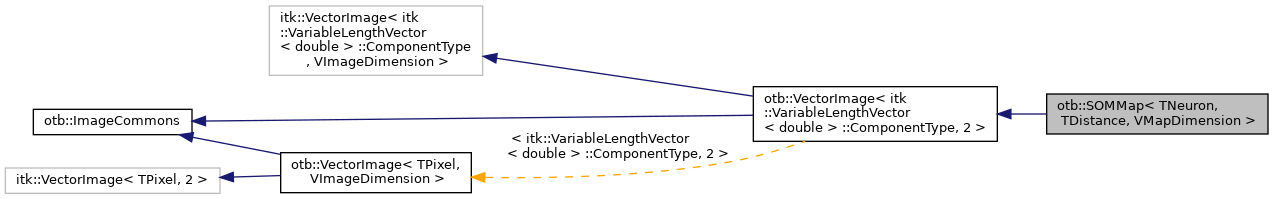

Inheritance diagram for otb::SOMMap< TNeuron, TDistance, VMapDimension >:

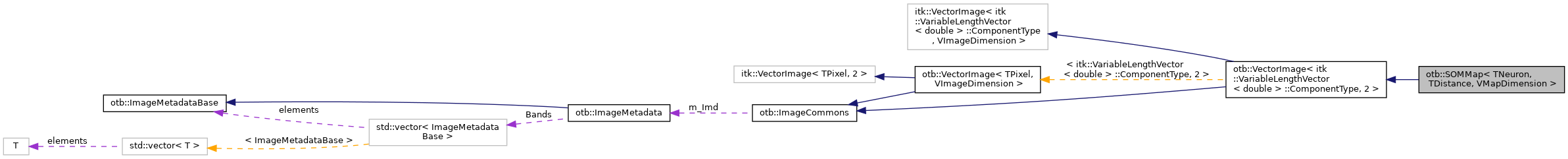

Collaboration diagram for otb::SOMMap< TNeuron, TDistance, VMapDimension >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::DirectionType	DirectionType

typedef DistanceType::Pointer	DistancePointerType

typedef TDistance	DistanceType

typedef Superclass::IndexType	IndexType

typedef TNeuron	NeuronType

typedef itk::SmartPointer< Self >	Pointer

typedef Superclass::PointType	PointType

typedef Superclass::RegionType	RegionType

typedef SOMMap	Self

typedef Superclass::SizeType	SizeType

typedef Superclass::SpacingType	SpacingType

typedef otb::VectorImage< typename TNeuron::ComponentType, VMapDimension >	Superclass

Public Types inherited from otb::VectorImage< itk::VariableLengthVector< double > ::ComponentType, 2 >
typedef itk::DefaultVectorPixelAccessorFunctor< Self >	AccessorFunctorType

using	ConstPointer = itk::SmartPointer< const Self >

using	ConstWeakPointer = itk::WeakPointer< const Self >

typedef Superclass::DirectionType	DirectionType

typedef Superclass::IndexType	IndexType

typedef Superclass::InternalPixelType	InternalPixelType

typedef Superclass::IOPixelType	IOPixelType

typedef itk::VectorImageNeighborhoodAccessorFunctor< Self >	NeighborhoodAccessorFunctorType

typedef Superclass::OffsetType	OffsetType

typedef Superclass::PixelContainer	PixelContainer

typedef Superclass::PixelType	PixelType

using	Pointer = itk::SmartPointer< Self >

typedef Superclass::PointType	PointType

typedef Superclass::RegionType	RegionType

using	Self = VectorImage

typedef Superclass::SizeType	SizeType

typedef Superclass::SpacingType	SpacingType

using	Superclass = itk::VectorImage< itk::VariableLengthVector< double > ::ComponentType, VImageDimension >

typedef Superclass::ValueType	ValueType

using	VectorType = ImageMetadataInterfaceBase::VectorType

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

IndexType	GetWinner (const NeuronType &sample)

Public Member Functions inherited from otb::VectorImage< itk::VariableLengthVector< double > ::ComponentType, 2 >
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual VectorType	GetGeoTransform (void) const

virtual const char *	GetNameOfClass () const

VectorType	GetUpperLeftCorner (void) const

VectorType	GetUpperRightCorner (void) const

VectorType	GetLowerLeftCorner (void) const

VectorType	GetLowerRightCorner (void) const

SpacingType	GetSignedSpacing () const

virtual void	SetSignedSpacing (SpacingType spacing)

virtual void	SetSignedSpacing (double spacing[VImageDimension])

virtual void	SetNumberOfComponentsPerPixel (unsigned int n) override

void	CopyInformation (const itk::DataObject *) override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

NeighborhoodAccessorFunctorType	GetNeighborhoodAccessor ()

const NeighborhoodAccessorFunctorType	GetNeighborhoodAccessor () const

Public Member Functions inherited from otb::ImageCommons
double	GetGCPCol (unsigned int GCPnum) const

unsigned int	GetGCPCount (void) const

std::string	GetGCPId (unsigned int GCPnum) const

std::string	GetGCPInfo (unsigned int GCPnum) const

std::string	GetGCPProjection (void) const

double	GetGCPRow (unsigned int GCPnum) const

const GCP &	GetGCPs (unsigned int GCPnum) const

double	GetGCPX (unsigned int GCPnum) const

double	GetGCPY (unsigned int GCPnum) const

double	GetGCPZ (unsigned int GCPnum) const

ImageMetadata &	GetImageMetadata ()

const ImageMetadata &	GetImageMetadata () const

std::string	GetProjectionRef (void) const

bool	HasSensorGeometry () const

void	SetBandImageMetadata (ImageMetadata::ImageMetadataBandsType imd)

void	SetImageMetadata (ImageMetadata imd)

void	SetProjectionRef (const std::string &wkt)

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from otb::VectorImage< itk::VariableLengthVector< double > ::ComponentType, 2 >
static Pointer	New ()

Protected Member Functions
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	SOMMap ()

	~SOMMap () override

Protected Member Functions inherited from otb::VectorImage< itk::VariableLengthVector< double > ::ComponentType, 2 >
	VectorImage ()

	~VectorImage () override

Private Member Functions
void	operator= (const Self &)=delete

	SOMMap (const Self &)=delete

Additional Inherited Members
Public Attributes inherited from otb::ImageCommons
ImageMetadata	m_Imd

Static Public Attributes inherited from otb::VectorImage< itk::VariableLengthVector< double > ::ComponentType, 2 >
static const unsigned int	ImageDimension

Detailed Description

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>
class otb::SOMMap< TNeuron, TDistance, VMapDimension >

This class represent a Self Organizing Map.

The Self organizing map (or Kohonen map) is a type of neural networks. It is based on an analogy with the visual cortex, where similar inputs activate neighbor neurons.

This class extends the Image object, where each pixel represents a neuron in the map. It is templated with a distance parameter used to compute the neuron response to an input. Thanks to the extension of the Image object, reading and writing is supported through standard image readers and writers.

The training is done via the SOM class, and the activation map can be produced with the SOMActivationBuilder class.

See also: SOM; SOMActivationBuilder

Definition at line 53 of file otbSOMMap.h.

Member Typedef Documentation

◆ ConstPointer

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef itk::SmartPointer<const Self> otb::SOMMap< TNeuron, TDistance, VMapDimension >::ConstPointer

Definition at line 61 of file otbSOMMap.h.

◆ DirectionType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef Superclass::DirectionType otb::SOMMap< TNeuron, TDistance, VMapDimension >::DirectionType

Definition at line 80 of file otbSOMMap.h.

◆ DistancePointerType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef DistanceType::Pointer otb::SOMMap< TNeuron, TDistance, VMapDimension >::DistancePointerType

Definition at line 75 of file otbSOMMap.h.

◆ DistanceType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef TDistance otb::SOMMap< TNeuron, TDistance, VMapDimension >::DistanceType

Definition at line 74 of file otbSOMMap.h.

◆ IndexType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef Superclass::IndexType otb::SOMMap< TNeuron, TDistance, VMapDimension >::IndexType

Superclass related typedefs

Definition at line 78 of file otbSOMMap.h.

◆ NeuronType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef TNeuron otb::SOMMap< TNeuron, TDistance, VMapDimension >::NeuronType

There is no runtime information macro since this class has to be considered to as a simple VectorImage // itkTypeMacro(SOMMap, VectorImage); Template parameters related typedefs

Definition at line 64 of file otbSOMMap.h.

◆ Pointer

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef itk::SmartPointer<Self> otb::SOMMap< TNeuron, TDistance, VMapDimension >::Pointer

Definition at line 60 of file otbSOMMap.h.

◆ PointType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef Superclass::PointType otb::SOMMap< TNeuron, TDistance, VMapDimension >::PointType

Definition at line 83 of file otbSOMMap.h.

◆ RegionType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef Superclass::RegionType otb::SOMMap< TNeuron, TDistance, VMapDimension >::RegionType

Definition at line 81 of file otbSOMMap.h.

◆ Self

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef SOMMap otb::SOMMap< TNeuron, TDistance, VMapDimension >::Self

Standard typedefs

Definition at line 58 of file otbSOMMap.h.

◆ SizeType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef Superclass::SizeType otb::SOMMap< TNeuron, TDistance, VMapDimension >::SizeType

Definition at line 79 of file otbSOMMap.h.

◆ SpacingType

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef Superclass::SpacingType otb::SOMMap< TNeuron, TDistance, VMapDimension >::SpacingType

Definition at line 82 of file otbSOMMap.h.

◆ Superclass

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

typedef otb::VectorImage<typename TNeuron::ComponentType, VMapDimension> otb::SOMMap< TNeuron, TDistance, VMapDimension >::Superclass

Definition at line 59 of file otbSOMMap.h.

Constructor & Destructor Documentation

◆ SOMMap() [1/2]

template<class TNeuron , class TDistance , unsigned int VMapDimension>

otb::SOMMap< TNeuron, TDistance, VMapDimension >::SOMMap

protected

Constructor

Definition at line 34 of file otbSOMMap.hxx.

◆ ~SOMMap()

template<class TNeuron , class TDistance , unsigned int VMapDimension>

otb::SOMMap< TNeuron, TDistance, VMapDimension >::~SOMMap

overrideprotected

Destructor

Definition at line 42 of file otbSOMMap.hxx.

◆ SOMMap() [2/2]

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

otb::SOMMap< TNeuron, TDistance, VMapDimension >::SOMMap ( const Self & )

privatedelete

Member Function Documentation

◆ CreateAnother()

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

virtual::itk::LightObject::Pointer otb::SOMMap< TNeuron, TDistance, VMapDimension >::CreateAnother ( void ) const

◆ GetWinner()

template<class TNeuron , class TDistance , unsigned int VMapDimension>

SOMMap< TNeuron, TDistance, VMapDimension >::IndexType otb::SOMMap< TNeuron, TDistance, VMapDimension >::GetWinner ( const NeuronType & sample )

Get The index of the winning neuron for a sample.

Parameters

sample the sample.

Returns: The index of the winning neuron.

Get The index of the winning neuron for a sample.

Parameters

sample The sample

Returns: The index of the winning neuron.

Definition at line 52 of file otbSOMMap.hxx.

◆ New()

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

static Pointer otb::SOMMap< TNeuron, TDistance, VMapDimension >::New ( )

static

Creation through object factory macro

◆ operator=()

template<class TNeuron = itk::VariableLengthVector<double>, class TDistance = itk::Statistics::EuclideanDistanceMetric<TNeuron>, unsigned int VMapDimension = 2>

void otb::SOMMap< TNeuron, TDistance, VMapDimension >::operator= ( const Self & )

privatedelete

◆ PrintSelf()

template<class TNeuron , class TDistance , unsigned int VMapDimension>

void otb::SOMMap< TNeuron, TDistance, VMapDimension >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

PrintSelf method

Definition at line 83 of file otbSOMMap.hxx.

The documentation for this class was generated from the following files:
