otb::PipelineMemoryPrintCalculator Class Reference

#include <otbPipelineMemoryPrintCalculator.h>

Inheritance diagram for otb::PipelineMemoryPrintCalculator:

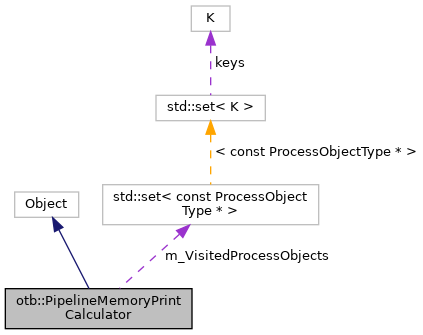

Collaboration diagram for otb::PipelineMemoryPrintCalculator:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef DataObjectType::Pointer	DataObjectPointerType
typedef itk::DataObject	DataObjectType
typedef ::itksysFundamentalType_UInt64	MemoryPrintType
typedef itk::SmartPointer< Self >	Pointer
typedef std::set< const ProcessObjectType * >	ProcessObjectPointerSetType
typedef ProcessObjectType::Pointer	ProcessObjectPointerType
typedef itk::ProcessObject	ProcessObjectType
typedef PipelineMemoryPrintCalculator	Self
typedef itk::Object	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual MemoryPrintType	GetMemoryPrint ()
virtual const char *	GetNameOfClass () const

Static Public Member Functions
static Pointer	New ()
static const double	ByteToMegabyte
static const double	MegabyteToByte
MemoryPrintType	m_MemoryPrint
DataObjectPointerType	m_DataToWrite
double	m_BiasCorrectionFactor
ProcessObjectPointerSetType	m_VisitedProcessObjects
virtual void	SetBiasCorrectionFactor (double _arg)
virtual double	GetBiasCorrectionFactor ()
virtual void	SetDataToWrite (DataObjectType *_arg)
void	Compute (bool propagate=true)
MemoryPrintType	EvaluateDataObjectPrint (DataObjectType *data)
static unsigned long	EstimateOptimalNumberOfStreamDivisions (MemoryPrintType memoryPrint, MemoryPrintType availableMemory)
	PipelineMemoryPrintCalculator ()
	~PipelineMemoryPrintCalculator () override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
MemoryPrintType	EvaluateProcessObjectPrintRecursive (ProcessObjectType *process)
	PipelineMemoryPrintCalculator (const Self &)=delete
void	operator= (const Self &)=delete

Detailed Description

Estimate pipeline memory usage and optimal stream divisions.

This class allows estimating the memory usage of a given pipeline by tracing back pipeline from a given data (in general, this data should be set to the data to write) and examining each filter to determine its memory footprint. To do so, it performs a dry run of the requested region pipeline negotiation.

The SetDataToWrite() method allows setting the data candidate for writing, and for which memory usage estimation should be performed.

Additionally, this class allows computing the optimal number of stream division to write the data. To do so, the available memory can be set via the SetAvailableMemory() method, and an optional bias correction factor can be applied to weight the estimate memory usage in case a bias occurs between estimated and real memory usage. The optimal number of stream divisions can be retrieved using the GetOptimalNumberOfStreamDivisions().

Please note that for now this calculator suffers from the following limitations:

• DataObject taken into account for memory usage estimation are only Image, VectorImage and ImageList instantiation,
• The estimator is non-intrusive regarding the pipeline high-level class, but it is not able to estimate memory usage of minipipeline within composite filter (because there is no way to trace back to these internal filters). Therefore, memory usage can be highly biased depending on the filters in the upstream pipeline. The bias correction factor parameters allows compensating this bias to the first order.

Definition at line 73 of file otbPipelineMemoryPrintCalculator.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::PipelineMemoryPrintCalculator::ConstPointer

Definition at line 80 of file otbPipelineMemoryPrintCalculator.h.

DataObjectPointerType

typedef DataObjectType::Pointer otb::PipelineMemoryPrintCalculator::DataObjectPointerType

Definition at line 86 of file otbPipelineMemoryPrintCalculator.h.

DataObjectType

typedef itk::DataObject otb::PipelineMemoryPrintCalculator::DataObjectType

Definition at line 85 of file otbPipelineMemoryPrintCalculator.h.

MemoryPrintType

typedef ::itksysFundamentalType_UInt64 otb::PipelineMemoryPrintCalculator::MemoryPrintType

Definition at line 88 of file otbPipelineMemoryPrintCalculator.h.

Pointer

typedef itk::SmartPointer<Self> otb::PipelineMemoryPrintCalculator::Pointer

Definition at line 79 of file otbPipelineMemoryPrintCalculator.h.

ProcessObjectPointerSetType

typedef std::set<const ProcessObjectType*> otb::PipelineMemoryPrintCalculator::ProcessObjectPointerSetType

Definition at line 92 of file otbPipelineMemoryPrintCalculator.h.

ProcessObjectPointerType

typedef ProcessObjectType::Pointer otb::PipelineMemoryPrintCalculator::ProcessObjectPointerType

Definition at line 84 of file otbPipelineMemoryPrintCalculator.h.

ProcessObjectType

typedef itk::ProcessObject otb::PipelineMemoryPrintCalculator::ProcessObjectType

Useful typedefs

Definition at line 83 of file otbPipelineMemoryPrintCalculator.h.

Self

typedef PipelineMemoryPrintCalculator otb::PipelineMemoryPrintCalculator::Self

Standard class typedefs

Definition at line 77 of file otbPipelineMemoryPrintCalculator.h.

Superclass

typedef itk::Object otb::PipelineMemoryPrintCalculator::Superclass

Definition at line 78 of file otbPipelineMemoryPrintCalculator.h.

Constructor & Destructor Documentation

PipelineMemoryPrintCalculator() [1/2]

otb::PipelineMemoryPrintCalculator::PipelineMemoryPrintCalculator ( )

protected

Constructor

~PipelineMemoryPrintCalculator()

otb::PipelineMemoryPrintCalculator::~PipelineMemoryPrintCalculator ( )

overrideprotected

Destructor

PipelineMemoryPrintCalculator() [2/2]

otb::PipelineMemoryPrintCalculator::PipelineMemoryPrintCalculator ( const Self &  )

privatedelete

Const conversion factor

Member Function Documentation

Compute()

void otb::PipelineMemoryPrintCalculator::Compute

(

bool

propagate = true

)

Compute pipeline memory print

CreateAnother()

virtual::itk::LightObject::Pointer otb::PipelineMemoryPrintCalculator::CreateAnother

(

void

)

const

EstimateOptimalNumberOfStreamDivisions()

static unsigned long otb::PipelineMemoryPrintCalculator::EstimateOptimalNumberOfStreamDivisions ( MemoryPrintType  memoryPrint, MemoryPrintType  availableMemory  )

static

Get the optimal number of stream division

Referenced by otb::StreamingManager< TInputImage >::EstimateOptimalNumberOfDivisions().

EvaluateDataObjectPrint()

MemoryPrintType otb::PipelineMemoryPrintCalculator::EvaluateDataObjectPrint

(

DataObjectType *

data

)

Evaluate the print (in bytes) of a single data object

EvaluateProcessObjectPrintRecursive()

MemoryPrintType otb::PipelineMemoryPrintCalculator::EvaluateProcessObjectPrintRecursive ( ProcessObjectType *  process )

protected

Recursive method to evaluate memory print in bytes

GetBiasCorrectionFactor()

virtual double otb::PipelineMemoryPrintCalculator::GetBiasCorrectionFactor ( )

virtual

Const conversion factor

GetMemoryPrint()

virtual MemoryPrintType otb::PipelineMemoryPrintCalculator::GetMemoryPrint ( )

virtual

Get the total memory print (in bytes)

GetNameOfClass()

virtual const char* otb::PipelineMemoryPrintCalculator::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

New()

static Pointer otb::PipelineMemoryPrintCalculator::New ( )

static

Method for creation through the object factory.

Referenced by otb::StreamingManager< TInputImage >::EstimateOptimalNumberOfDivisions().

operator=()

void otb::PipelineMemoryPrintCalculator::operator= ( const Self &  )

privatedelete

Const conversion factor

PrintSelf()

void otb::PipelineMemoryPrintCalculator::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

PrintSelf method

SetBiasCorrectionFactor()

virtual void otb::PipelineMemoryPrintCalculator::SetBiasCorrectionFactor ( double  _arg )

virtual

Set/Get the bias correction factor which will weight the estimated memory print (allows compensating bias between estimated and real memory print, default is 1., i.e. no correction)

SetDataToWrite()

virtual void otb::PipelineMemoryPrintCalculator::SetDataToWrite ( DataObjectType *  _arg )

virtual

Set last pipeline filter

Member Data Documentation

ByteToMegabyte

const double otb::PipelineMemoryPrintCalculator::ByteToMegabyte

static

Const conversion factor

Definition at line 120 of file otbPipelineMemoryPrintCalculator.h.

Referenced by otb::StreamingManager< TInputImage >::EstimateOptimalNumberOfDivisions().

m_BiasCorrectionFactor

double otb::PipelineMemoryPrintCalculator::m_BiasCorrectionFactor

private

Bias correction factor

Definition at line 150 of file otbPipelineMemoryPrintCalculator.h.

m_DataToWrite

DataObjectPointerType otb::PipelineMemoryPrintCalculator::m_DataToWrite

private

Pointer to the last pipeline filter

Definition at line 147 of file otbPipelineMemoryPrintCalculator.h.

m_MemoryPrint

MemoryPrintType otb::PipelineMemoryPrintCalculator::m_MemoryPrint

private

The total memory print of the pipeline

Definition at line 144 of file otbPipelineMemoryPrintCalculator.h.

m_VisitedProcessObjects

ProcessObjectPointerSetType otb::PipelineMemoryPrintCalculator::m_VisitedProcessObjects

private

Visited ProcessObject set

Definition at line 153 of file otbPipelineMemoryPrintCalculator.h.

MegabyteToByte

const double otb::PipelineMemoryPrintCalculator::MegabyteToByte

static

Const conversion factor

Definition at line 121 of file otbPipelineMemoryPrintCalculator.h.

---

The documentation for this class was generated from the following file:

• otbPipelineMemoryPrintCalculator.h
