otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage > Class Template Reference

#include <otbStreamingStatisticsMapFromLabelImageFilter.h>

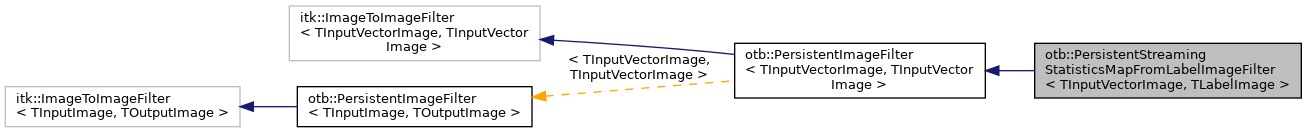

+ Inheritance diagram for otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >:

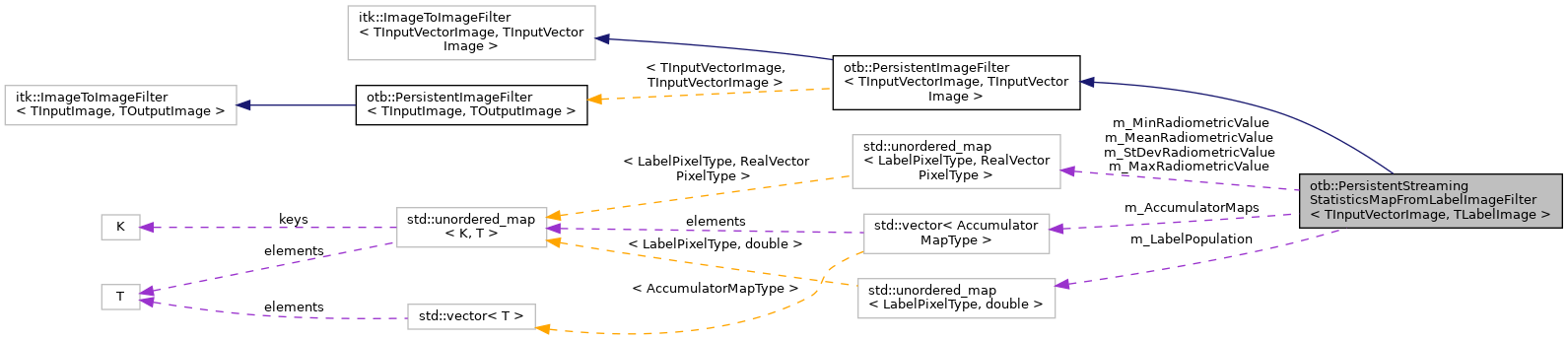

+ Collaboration diagram for otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >:

Public Types

typedef std::vector< AccumulatorMapTypeAccumulatorMapCollectionType

typedef std::unordered_map< LabelPixelType, AccumulatorTypeAccumulatorMapType

typedef StatisticsAccumulator< RealVectorPixelTypeAccumulatorType

typedef itk::SmartPointer< const SelfConstPointer

typedef itk::DataObject::Pointer DataObjectPointer

typedef itk::ProcessObject::DataObjectPointerArraySizeType DataObjectPointerArraySizeType

typedef itk::ImageBase< InputImageDimensionImageBaseType

typedef ImageBaseType::RegionType InputImageRegionType

typedef TInputVectorImage::Pointer InputVectorImagePointer

typedef TLabelImage::Pointer LabelImagePointer

typedef TLabelImage LabelImageType

typedef LabelImageType::PixelType LabelPixelType

typedef std::unordered_map< LabelPixelType, double > LabelPopulationMapType

typedef itk::SimpleDataObjectDecorator< PixelValueMapTypePixelValueMapObjectType

typedef std::unordered_map< LabelPixelType, RealVectorPixelTypePixelValueMapType

typedef itk::SmartPointer< SelfPointer

typedef itk::VariableLengthVector< double > RealVectorPixelType

typedef VectorImageType::RegionType RegionType

typedef PersistentStreamingStatisticsMapFromLabelImageFilter Self

typedef PersistentImageFilter< TInputVectorImage, TInputVectorImage > Superclass

typedef TInputVectorImage VectorImageType

typedef VectorImageType::PixelType VectorPixelType

typedef VectorImageType::PixelType::ValueType VectorPixelValueType

- Public Types inherited from otb::PersistentImageFilter< TInputVectorImage, TInputVectorImage >
typedef itk::SmartPointer< const SelfConstPointer

typedef TInputVectorImage InputImageType

typedef TInputVectorImage OutputImageType

typedef itk::SmartPointer< SelfPointer

typedef PersistentImageFilter Self

typedef itk::ImageToImageFilter< TInputVectorImage, TInputVectorImage > Superclass


Public Member Functions

void AllocateOutputs () override

virtual ::itk::LightObject::Pointer CreateAnother (void) const

void GenerateInputRequestedRegion () override

void GenerateOutputInformation () override

virtual const LabelImageTypeGetInputLabelImage ()

LabelPopulationMapType GetLabelPopulationMap () const

PixelValueMapType GetMaxValueMap () const

PixelValueMapType GetMeanValueMap () const

PixelValueMapType GetMinValueMap () const

virtual const char * GetNameOfClass () const

virtual VectorPixelValueType GetNoDataValue ()

PixelValueMapType GetStandardDeviationValueMap () const

virtual bool GetUseNoDataValue ()

DataObjectPointer MakeOutput (DataObjectPointerArraySizeType idx) override

void Reset (void) override

virtual void SetInputLabelImage (const LabelImageType *image)

virtual void SetNoDataValue (VectorPixelValueType _arg)

virtual void SetUseNoDataValue (bool _arg)

void Synthetize (void) override

- Public Member Functions inherited from otb::PersistentImageFilter< TInputVectorImage, TInputVectorImage >
virtual const char * GetNameOfClass () const


Static Public Member Functions

static Pointer New ()


Static Public Attributes

static const unsigned int ImageDimension = TInputVectorImage::ImageDimension

static const unsigned int InputImageDimension = TInputVectorImage::ImageDimension


Protected Member Functions

 PersistentStreamingStatisticsMapFromLabelImageFilter ()

void PrintSelf (std::ostream &os, itk::Indent indent) const override

 ~PersistentStreamingStatisticsMapFromLabelImageFilter () override

void ThreadedGenerateData (const RegionType &outputRegionForThread, itk::ThreadIdType threadId) override

- Protected Member Functions inherited from otb::PersistentImageFilter< TInputVectorImage, TInputVectorImage >
 PersistentImageFilter ()

void PrintSelf (std::ostream &os, itk::Indent indent) const override

 ~PersistentImageFilter () override


Private Member Functions

void operator= (const Self &)=delete

 PersistentStreamingStatisticsMapFromLabelImageFilter (const Self &)=delete


Private Attributes

AccumulatorMapCollectionType m_AccumulatorMaps

LabelPopulationMapType m_LabelPopulation

PixelValueMapType m_MaxRadiometricValue

PixelValueMapType m_MeanRadiometricValue

PixelValueMapType m_MinRadiometricValue

VectorPixelValueType m_NoDataValue

PixelValueMapType m_StDevRadiometricValue

bool m_UseNoDataValue


Detailed Description

template<class TInputVectorImage, class TLabelImage>
class otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >

Computes mean radiometric value for each label of a label image, based on a support VectorImage.

This filter persists its temporary data. It means that if you Update it n times on n different requested regions, the output statistics will be the statistics of the whole set of n regions.

To reset the temporary data, one should call the Reset() function.

To get the statistics once the regions have been processed via the pipeline, use the Synthetize() method.

See also
StreamingStatisticsMapFromLabelImageFilter

Definition at line 177 of file otbStreamingStatisticsMapFromLabelImageFilter.h.

Member Typedef Documentation

◆ AccumulatorMapCollectionType

template<class TInputVectorImage , class TLabelImage >
typedef std::vector<AccumulatorMapType> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::AccumulatorMapCollectionType

◆ AccumulatorMapType

template<class TInputVectorImage , class TLabelImage >
typedef std::unordered_map<LabelPixelType, AccumulatorType> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::AccumulatorMapType

◆ AccumulatorType

template<class TInputVectorImage , class TLabelImage >
typedef StatisticsAccumulator<RealVectorPixelType> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::AccumulatorType

◆ ConstPointer

template<class TInputVectorImage , class TLabelImage >
typedef itk::SmartPointer<const Self> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::ConstPointer

◆ DataObjectPointer

template<class TInputVectorImage , class TLabelImage >
typedef itk::DataObject::Pointer otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::DataObjectPointer

Smart Pointer type to a DataObject.

Definition at line 217 of file otbStreamingStatisticsMapFromLabelImageFilter.h.

◆ DataObjectPointerArraySizeType

template<class TInputVectorImage , class TLabelImage >
typedef itk::ProcessObject::DataObjectPointerArraySizeType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::DataObjectPointerArraySizeType

◆ ImageBaseType

template<class TInputVectorImage , class TLabelImage >
typedef itk::ImageBase<InputImageDimension> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::ImageBaseType

◆ InputImageRegionType

template<class TInputVectorImage , class TLabelImage >
typedef ImageBaseType::RegionType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::InputImageRegionType

◆ InputVectorImagePointer

template<class TInputVectorImage , class TLabelImage >
typedef TInputVectorImage::Pointer otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::InputVectorImagePointer

◆ LabelImagePointer

template<class TInputVectorImage , class TLabelImage >
typedef TLabelImage::Pointer otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::LabelImagePointer

◆ LabelImageType

template<class TInputVectorImage , class TLabelImage >
typedef TLabelImage otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::LabelImageType

◆ LabelPixelType

template<class TInputVectorImage , class TLabelImage >
typedef LabelImageType::PixelType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::LabelPixelType

◆ LabelPopulationMapType

template<class TInputVectorImage , class TLabelImage >
typedef std::unordered_map<LabelPixelType, double> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::LabelPopulationMapType

◆ PixelValueMapObjectType

template<class TInputVectorImage , class TLabelImage >
typedef itk::SimpleDataObjectDecorator<PixelValueMapType> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PixelValueMapObjectType

Type of DataObjects used for scalar outputs

Definition at line 227 of file otbStreamingStatisticsMapFromLabelImageFilter.h.

◆ PixelValueMapType

template<class TInputVectorImage , class TLabelImage >
typedef std::unordered_map<LabelPixelType, RealVectorPixelType> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PixelValueMapType

◆ Pointer

template<class TInputVectorImage , class TLabelImage >
typedef itk::SmartPointer<Self> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::Pointer

◆ RealVectorPixelType

template<class TInputVectorImage , class TLabelImage >
typedef itk::VariableLengthVector<double> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::RealVectorPixelType

◆ RegionType

template<class TInputVectorImage , class TLabelImage >
typedef VectorImageType::RegionType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::RegionType

◆ Self

template<class TInputVectorImage , class TLabelImage >
typedef PersistentStreamingStatisticsMapFromLabelImageFilter otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::Self

Standard Self typedef

Definition at line 181 of file otbStreamingStatisticsMapFromLabelImageFilter.h.

◆ Superclass

template<class TInputVectorImage , class TLabelImage >
typedef PersistentImageFilter<TInputVectorImage, TInputVectorImage> otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::Superclass

◆ VectorImageType

template<class TInputVectorImage , class TLabelImage >
typedef TInputVectorImage otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::VectorImageType

Image related typedefs.

Definition at line 190 of file otbStreamingStatisticsMapFromLabelImageFilter.h.

◆ VectorPixelType

template<class TInputVectorImage , class TLabelImage >
typedef VectorImageType::PixelType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::VectorPixelType

◆ VectorPixelValueType

template<class TInputVectorImage , class TLabelImage >
typedef VectorImageType::PixelType::ValueType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::VectorPixelValueType

Constructor & Destructor Documentation

◆ PersistentStreamingStatisticsMapFromLabelImageFilter() [1/2]

template<class TInputVectorImage , class TLabelImage >
otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PersistentStreamingStatisticsMapFromLabelImageFilter
protected

◆ ~PersistentStreamingStatisticsMapFromLabelImageFilter()

template<class TInputVectorImage , class TLabelImage >
otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::~PersistentStreamingStatisticsMapFromLabelImageFilter ( )
inlineoverrideprotected

◆ PersistentStreamingStatisticsMapFromLabelImageFilter() [2/2]

template<class TInputVectorImage , class TLabelImage >
otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PersistentStreamingStatisticsMapFromLabelImageFilter ( const Self )
privatedelete

Member Function Documentation

◆ AllocateOutputs()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::AllocateOutputs
override

Pass the input through unmodified. Do this by Grafting in the AllocateOutputs method.

Definition at line 125 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ CreateAnother()

template<class TInputVectorImage , class TLabelImage >
virtual::itk::LightObject::Pointer otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::CreateAnother ( void  ) const

◆ GenerateInputRequestedRegion()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GenerateInputRequestedRegion
override

Due to heterogeneous input template GenerateInputRequestedRegion must be reimplemented using explicit cast This new implementation is inspired by the one of itk::ImageToImageFilter

Definition at line 215 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ GenerateOutputInformation()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GenerateOutputInformation
override

◆ GetInputLabelImage()

template<class TInputVectorImage , class TLabelImage >
const PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::LabelImageType * otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetInputLabelImage
virtual

Get input label image

Definition at line 67 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ GetLabelPopulationMap()

template<class TInputVectorImage , class TLabelImage >
PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::LabelPopulationMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetLabelPopulationMap

Return the computed number of labeled pixels for each label in the input label image

Definition at line 102 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ GetMaxValueMap()

template<class TInputVectorImage , class TLabelImage >
PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetMaxValueMap

Return the computed Max for each label in the input label image

Definition at line 95 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ GetMeanValueMap()

template<class TInputVectorImage , class TLabelImage >
PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetMeanValueMap

Return the computed Mean for each label in the input label image

Definition at line 74 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ GetMinValueMap()

template<class TInputVectorImage , class TLabelImage >
PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetMinValueMap

Return the computed Min for each label in the input label image

Definition at line 88 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ GetNameOfClass()

template<class TInputVectorImage , class TLabelImage >
virtual const char* otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetNameOfClass ( ) const
virtual

Runtime information support.

◆ GetNoDataValue()

template<class TInputVectorImage , class TLabelImage >
virtual VectorPixelValueType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetNoDataValue ( )
virtual

◆ GetStandardDeviationValueMap()

template<class TInputVectorImage , class TLabelImage >
PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetStandardDeviationValueMap

Return the computed Standard Deviation for each label in the input label image

Definition at line 81 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ GetUseNoDataValue()

template<class TInputVectorImage , class TLabelImage >
virtual bool otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::GetUseNoDataValue ( )
virtual

◆ MakeOutput()

template<class TInputVectorImage , class TLabelImage >
itk::DataObject::Pointer otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::MakeOutput ( DataObjectPointerArraySizeType  idx)
override

◆ New()

template<class TInputVectorImage , class TLabelImage >
static Pointer otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::New ( )
static

Method for creation through the object factory.

◆ operator=()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::operator= ( const Self )
privatedelete

◆ PrintSelf()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

◆ Reset()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::Reset ( void  )
overridevirtual

◆ SetInputLabelImage()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::SetInputLabelImage ( const LabelImageType image)
virtual

Set input label image

Definition at line 59 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ SetNoDataValue()

template<class TInputVectorImage , class TLabelImage >
virtual void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::SetNoDataValue ( VectorPixelValueType  _arg)
virtual

◆ SetUseNoDataValue()

template<class TInputVectorImage , class TLabelImage >
virtual void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::SetUseNoDataValue ( bool  _arg)
virtual

◆ Synthetize()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::Synthetize ( void  )
overridevirtual

Synthesize the persistent data of the filter.

Implements otb::PersistentImageFilter< TInputVectorImage, TInputVectorImage >.

Definition at line 135 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

◆ ThreadedGenerateData()

template<class TInputVectorImage , class TLabelImage >
void otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::ThreadedGenerateData ( const RegionType outputRegionForThread,
itk::ThreadIdType  threadId
)
overrideprotected

Grab the input

Definition at line 243 of file otbStreamingStatisticsMapFromLabelImageFilter.hxx.

Member Data Documentation

◆ ImageDimension

template<class TInputVectorImage , class TLabelImage >
const unsigned int otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::ImageDimension = TInputVectorImage::ImageDimension
static

Image related typedefs.

Definition at line 212 of file otbStreamingStatisticsMapFromLabelImageFilter.h.

◆ InputImageDimension

template<class TInputVectorImage , class TLabelImage >
const unsigned int otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::InputImageDimension = TInputVectorImage::ImageDimension
static

◆ m_AccumulatorMaps

template<class TInputVectorImage , class TLabelImage >
AccumulatorMapCollectionType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_AccumulatorMaps
private

◆ m_LabelPopulation

template<class TInputVectorImage , class TLabelImage >
LabelPopulationMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_LabelPopulation
private

◆ m_MaxRadiometricValue

template<class TInputVectorImage , class TLabelImage >
PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_MaxRadiometricValue
private

◆ m_MeanRadiometricValue

template<class TInputVectorImage , class TLabelImage >
PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_MeanRadiometricValue
private

◆ m_MinRadiometricValue

template<class TInputVectorImage , class TLabelImage >
PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_MinRadiometricValue
private

◆ m_NoDataValue

template<class TInputVectorImage , class TLabelImage >
VectorPixelValueType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_NoDataValue
private

◆ m_StDevRadiometricValue

template<class TInputVectorImage , class TLabelImage >
PixelValueMapType otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_StDevRadiometricValue
private

◆ m_UseNoDataValue

template<class TInputVectorImage , class TLabelImage >
bool otb::PersistentStreamingStatisticsMapFromLabelImageFilter< TInputVectorImage, TLabelImage >::m_UseNoDataValue
private

The documentation for this class was generated from the following files:
