otb::NormalizeVectorImageFilter< TInputImage, TOutputImage > Class Template Reference

#include <otbNormalizeVectorImageFilter.h>

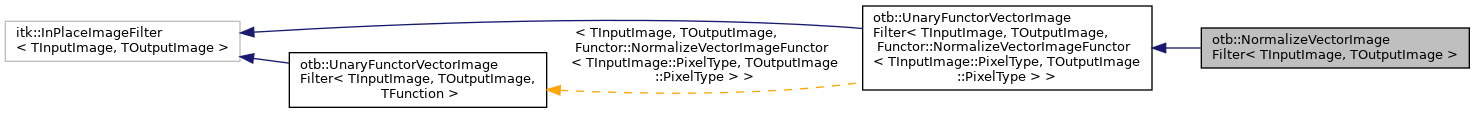

Inheritance diagram for otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >:

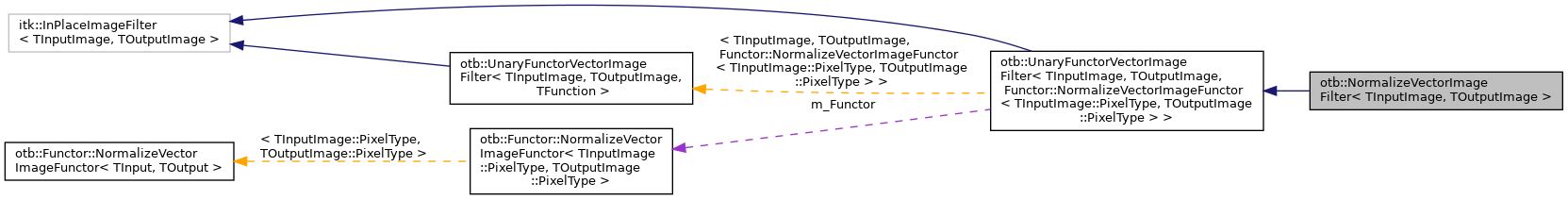

Collaboration diagram for otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef CovarianceEstimatorFilterType::Pointer	CovarianceEstimatorFilterPointerType
typedef StreamingStatisticsVectorImageFilter< InputImageType >	CovarianceEstimatorFilterType
typedef TInputImage	InputImageType
typedef TOutputImage	OutputImageType
typedef itk::SmartPointer< Self >	Pointer
typedef itk::NumericTraits< typename RealVectorType::ValueType >::RealType	RealType
typedef itk::NumericTraits< typename TInputImage::PixelType >::RealType	RealVectorType
typedef NormalizeVectorImageFilter	Self
typedef UnaryFunctorVectorImageFilter< TInputImage, TOutputImage, Functor::NormalizeVectorImageFunctor< typename TInputImage::PixelType, typename TOutputImage::PixelType > >	Superclass
Public Types inherited from otb::UnaryFunctorVectorImageFilter< TInputImage, TOutputImage, Functor::NormalizeVectorImageFunctor< TInputImage::PixelType, TOutputImage::PixelType > >
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::SmartPointer< Self >	Pointer
typedef UnaryFunctorVectorImageFilter	Self
typedef itk::InPlaceImageFilter< TInputImage, TOutputImage >	Superclass
typedef Functor::NormalizeVectorImageFunctor< TInputImage::PixelType, TOutputImage::PixelType >	FunctorType
typedef TInputImage	InputImageType
typedef InputImageType::ConstPointer	InputImagePointer
typedef InputImageType::RegionType	InputImageRegionType
typedef InputImageType::PixelType	InputImagePixelType
typedef TOutputImage	OutputImageType
typedef OutputImageType::Pointer	OutputImagePointer
typedef OutputImageType::RegionType	OutputImageRegionType
typedef OutputImageType::PixelType	OutputImagePixelType
typedef itk::ProcessObject	ProcessObjectType

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual CovarianceEstimatorFilterType *	GetCovarianceEstimator () const
virtual const char *	GetNameOfClass () const
template<class T >
void	SetMean (const itk::VariableLengthVector< T > &m)
template<class T >
void	SetStdDev (const itk::VariableLengthVector< T > &sigma)
virtual void	SetUseMean (bool _arg)
virtual void	SetUseStdDev (bool _arg)
template<class T >
void	SetVariance (const itk::VariableLengthVector< T > &var)
Public Member Functions inherited from otb::UnaryFunctorVectorImageFilter< TInputImage, TOutputImage, Functor::NormalizeVectorImageFunctor< TInputImage::PixelType, TOutputImage::PixelType > >
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
FunctorType &	GetFunctor ()
void	SetFunctor (const FunctorType &functor)

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from otb::UnaryFunctorVectorImageFilter< TInputImage, TOutputImage, Functor::NormalizeVectorImageFunctor< TInputImage::PixelType, TOutputImage::PixelType > >
static Pointer	New ()

Protected Member Functions
void	GenerateOutputInformation () override
	NormalizeVectorImageFilter ()
	~NormalizeVectorImageFilter () override
Protected Member Functions inherited from otb::UnaryFunctorVectorImageFilter< TInputImage, TOutputImage, Functor::NormalizeVectorImageFunctor< TInputImage::PixelType, TOutputImage::PixelType > >
	UnaryFunctorVectorImageFilter ()
	~UnaryFunctorVectorImageFilter () override
void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) override
void	GenerateOutputInformation (void) override

Private Member Functions
	NormalizeVectorImageFilter (const Self &)
void	operator= (const Self &)

Private Attributes
CovarianceEstimatorFilterPointerType	m_CovarianceEstimator
bool	m_IsGivenMean
bool	m_IsGivenStdDev
bool	m_UseMean
bool	m_UseStdDev

Additional Inherited Members
Static Public Attributes inherited from otb::UnaryFunctorVectorImageFilter< TInputImage, TOutputImage, Functor::NormalizeVectorImageFunctor< TInputImage::PixelType, TOutputImage::PixelType > >
static const unsigned int	InputImageDimension
static const unsigned int	OutputImageDimension

Detailed Description

template<class TInputImage, class TOutputImage>
class otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >

Normalize an VectorImage by setting its mean to zero and possibly variance to one (band by band).

NormalizeVectorImageFilter shifts and scales an image so that the pixels in the image have a zero mean and unit variance.

This filter uses StreamingStatisticsVectorImageFilter to compute the mean and variance of the input and then applies the dedicated functor.

See also

StreamingStatisticsVectorImageFilter

Definition at line 132 of file otbNormalizeVectorImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TInputImage , class TOutputImage >

typedef itk::SmartPointer<const Self> otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::ConstPointer

Definition at line 143 of file otbNormalizeVectorImageFilter.h.

CovarianceEstimatorFilterPointerType

template<class TInputImage , class TOutputImage >

typedef CovarianceEstimatorFilterType::Pointer otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::CovarianceEstimatorFilterPointerType

Definition at line 158 of file otbNormalizeVectorImageFilter.h.

CovarianceEstimatorFilterType

template<class TInputImage , class TOutputImage >

typedef StreamingStatisticsVectorImageFilter<InputImageType> otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::CovarianceEstimatorFilterType

Definition at line 157 of file otbNormalizeVectorImageFilter.h.

InputImageType

template<class TInputImage , class TOutputImage >

typedef TInputImage otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::InputImageType

Definition at line 149 of file otbNormalizeVectorImageFilter.h.

OutputImageType

template<class TInputImage , class TOutputImage >

typedef TOutputImage otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::OutputImageType

Definition at line 152 of file otbNormalizeVectorImageFilter.h.

Pointer

template<class TInputImage , class TOutputImage >

typedef itk::SmartPointer<Self> otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::Pointer

Definition at line 142 of file otbNormalizeVectorImageFilter.h.

RealType

template<class TInputImage , class TOutputImage >

typedef itk::NumericTraits<typename RealVectorType::ValueType>::RealType otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::RealType

Definition at line 155 of file otbNormalizeVectorImageFilter.h.

RealVectorType

template<class TInputImage , class TOutputImage >

typedef itk::NumericTraits<typename TInputImage::PixelType>::RealType otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::RealVectorType

Definition at line 154 of file otbNormalizeVectorImageFilter.h.

Self

template<class TInputImage , class TOutputImage >

typedef NormalizeVectorImageFilter otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::Self

Standard class typedefs

Definition at line 138 of file otbNormalizeVectorImageFilter.h.

Superclass

template<class TInputImage , class TOutputImage >

typedef UnaryFunctorVectorImageFilter<TInputImage, TOutputImage, Functor::NormalizeVectorImageFunctor<typename TInputImage::PixelType, typename TOutputImage::PixelType> > otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::Superclass

Definition at line 141 of file otbNormalizeVectorImageFilter.h.

Constructor & Destructor Documentation

NormalizeVectorImageFilter() [1/2]

template<class TInputImage , class TOutputImage >

otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::NormalizeVectorImageFilter

protected

Definition at line 29 of file otbNormalizeVectorImageFilter.hxx.

~NormalizeVectorImageFilter()

template<class TInputImage , class TOutputImage >

otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::~NormalizeVectorImageFilter ( )

inlineoverrideprotected

Definition at line 195 of file otbNormalizeVectorImageFilter.h.

NormalizeVectorImageFilter() [2/2]

template<class TInputImage , class TOutputImage >

otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::NormalizeVectorImageFilter ( const Self &  )

private

Member Function Documentation

CreateAnother()

template<class TInputImage , class TOutputImage >

virtual::itk::LightObject::Pointer otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::CreateAnother

(

void

)

const

GenerateOutputInformation()

template<class TInputImage , class TOutputImage >

void otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::GenerateOutputInformation

overrideprotected

Definition at line 42 of file otbNormalizeVectorImageFilter.hxx.

GetCovarianceEstimator()

template<class TInputImage , class TOutputImage >

virtual CovarianceEstimatorFilterType* otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::GetCovarianceEstimator ( ) const

virtual

GetNameOfClass()

template<class TInputImage , class TOutputImage >

virtual const char* otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::GetNameOfClass ( ) const

virtual

Creation through object factory macro

New()

template<class TInputImage , class TOutputImage >

static Pointer otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::New ( )

static

Method for creation through the object factory.

operator=()

template<class TInputImage , class TOutputImage >

void otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::operator= ( const Self &  )

private

SetMean()

template<class TInputImage , class TOutputImage >

template<class T >

void otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::SetMean ( const itk::VariableLengthVector< T > &  m )

inline

Definition at line 163 of file otbNormalizeVectorImageFilter.h.

SetStdDev()

template<class TInputImage , class TOutputImage >

template<class T >

void otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::SetStdDev ( const itk::VariableLengthVector< T > &  sigma )

inline

Definition at line 172 of file otbNormalizeVectorImageFilter.h.

SetUseMean()

template<class TInputImage , class TOutputImage >

virtual void otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::SetUseMean ( bool  _arg )

virtual

SetUseStdDev()

template<class TInputImage , class TOutputImage >

virtual void otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::SetUseStdDev ( bool  _arg )

virtual

SetVariance()

template<class TInputImage , class TOutputImage >

template<class T >

void otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::SetVariance ( const itk::VariableLengthVector< T > &  var )

inline

Definition at line 181 of file otbNormalizeVectorImageFilter.h.

Member Data Documentation

m_CovarianceEstimator

template<class TInputImage , class TOutputImage >

CovarianceEstimatorFilterPointerType otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::m_CovarianceEstimator

private

Definition at line 212 of file otbNormalizeVectorImageFilter.h.

m_IsGivenMean

template<class TInputImage , class TOutputImage >

bool otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::m_IsGivenMean

private

Definition at line 206 of file otbNormalizeVectorImageFilter.h.

m_IsGivenStdDev

template<class TInputImage , class TOutputImage >

bool otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::m_IsGivenStdDev

private

Definition at line 207 of file otbNormalizeVectorImageFilter.h.

m_UseMean

template<class TInputImage , class TOutputImage >

bool otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::m_UseMean

private

Definition at line 209 of file otbNormalizeVectorImageFilter.h.

m_UseStdDev

template<class TInputImage , class TOutputImage >

bool otb::NormalizeVectorImageFilter< TInputImage, TOutputImage >::m_UseStdDev

private

Definition at line 210 of file otbNormalizeVectorImageFilter.h.

---

The documentation for this class was generated from the following files:

• otbNormalizeVectorImageFilter.h
• otbNormalizeVectorImageFilter.hxx
