#include <otbMultiChannelsPolarimetricSynthesisFilter.h>

Inheritance diagram for otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >:

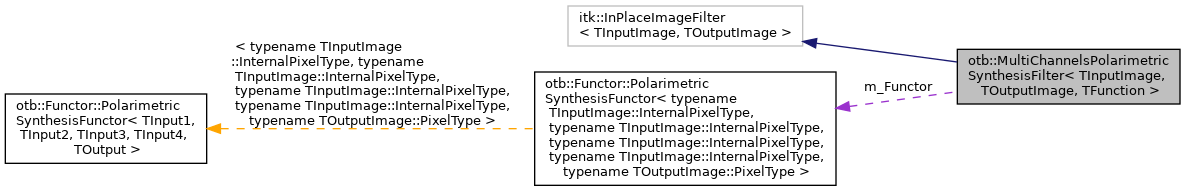

Collaboration diagram for otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >:

Public Types
typedef itk::FixedArray< ComplexType, 2 >	ComplexArrayType

typedef std::complex< double >	ComplexType

typedef itk::SmartPointer< const Self >	ConstPointer

typedef TFunction	FunctorType

typedef itk::FixedArray< int, 4 >	IndexArrayType

typedef InputImageType::PixelType	InputImagePixelType

typedef InputImageType::ConstPointer	InputImagePointer

typedef InputImageType::RegionType	InputImageRegionType

typedef TInputImage	InputImageType

typedef std::complex< double >	InputPixelType

typedef OutputImageType::PixelType	OutputImagePixelType

typedef OutputImageType::Pointer	OutputImagePointer

typedef OutputImageType::RegionType	OutputImageRegionType

typedef TOutputImage	OutputImageType

typedef itk::SmartPointer< Self >	Pointer

typedef MultiChannelsPolarimetricSynthesisFilter	Self

typedef itk::InPlaceImageFilter< TInputImage, TOutputImage >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

Static Public Member Functions
static Pointer	New ()

double	m_PsiI

double	m_KhiI

double	m_PsiR

double	m_KhiR

double	m_Gain

int	m_Mode

ComplexArrayType	m_Ei

ComplexArrayType	m_Er

PolarimetricData::Pointer	m_ArchitectureType

FunctorType	m_Functor

bool	m_EmissionH

bool	m_EmissionV

FunctorType &	GetFunctor ()

const FunctorType &	GetFunctor () const

void	SetFunctor (const FunctorType &functor)

void	SetEi (ComplexArrayType ei)

void	SetEr (ComplexArrayType er)

virtual void	SetPsiI (double _arg)

virtual double	GetPsiI ()

virtual void	SetKhiI (double _arg)

virtual double	GetKhiI ()

virtual void	SetPsiR (double _arg)

virtual double	GetPsiR ()

virtual void	SetKhiR (double _arg)

virtual double	GetKhiR ()

virtual void	SetEmissionH (bool _arg)

virtual bool	GetEmissionH ()

virtual void	SetEmissionV (bool _arg)

virtual bool	GetEmissionV ()

virtual void	SetMode (int _arg)

virtual int	GetMode ()

virtual void	SetGain (double _arg)

virtual double	GetGain ()

void	ForceCoPolar ()

void	ForceCrossPolar ()

	MultiChannelsPolarimetricSynthesisFilter ()

	~MultiChannelsPolarimetricSynthesisFilter () override

void	GenerateOutputInformation () override

void	BeforeThreadedGenerateData () override

void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) override

void	ComputeElectromagneticFields ()

void	VerifyAndForceInputs ()

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	MultiChannelsPolarimetricSynthesisFilter (const Self &)=delete

Detailed Description

template<class TInputImage, class TOutputImage, class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>
class otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >

This class computes the polarimetric synthesis from two to four radar images, depending on the polarimetric architecture.

It has the same behaviour as the PolarimetricSynthesisImageFilter expect the fact that it considers a VectorImage as input which each channels is HH, HV, VH and VV (in this particular order).

See also: PolarimetricSynthesisFilter; PolarimetricSynthesisFunctor

Definition at line 50 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

Member Typedef Documentation

◆ ComplexArrayType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef itk::FixedArray<ComplexType, 2> otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::ComplexArrayType

Definition at line 77 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ ComplexType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef std::complex<double> otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::ComplexType

Definition at line 76 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ ConstPointer

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef itk::SmartPointer<const Self> otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::ConstPointer

Definition at line 57 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ FunctorType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef TFunction otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::FunctorType

Definition at line 67 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ IndexArrayType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef itk::FixedArray<int, 4> otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::IndexArrayType

Definition at line 78 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ InputImagePixelType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef InputImageType::PixelType otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::InputImagePixelType

Definition at line 71 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ InputImagePointer

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef InputImageType::ConstPointer otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::InputImagePointer

Definition at line 69 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ InputImageRegionType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef InputImageType::RegionType otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::InputImageRegionType

Definition at line 70 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ InputImageType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef TInputImage otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::InputImageType

Definition at line 68 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ InputPixelType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef std::complex<double> otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::InputPixelType

Some typedefs.

Definition at line 63 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ OutputImagePixelType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef OutputImageType::PixelType otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::OutputImagePixelType

Definition at line 75 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ OutputImagePointer

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef OutputImageType::Pointer otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::OutputImagePointer

Definition at line 73 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ OutputImageRegionType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef OutputImageType::RegionType otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::OutputImageRegionType

Definition at line 74 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ OutputImageType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef TOutputImage otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::OutputImageType

Definition at line 72 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ Pointer

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef itk::SmartPointer<Self> otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::Pointer

Definition at line 56 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ Self

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef MultiChannelsPolarimetricSynthesisFilter otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::Self

Standard class typedefs.

Definition at line 54 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ Superclass

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

typedef itk::InPlaceImageFilter<TInputImage, TOutputImage> otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::Superclass

Definition at line 55 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

Constructor & Destructor Documentation

◆ MultiChannelsPolarimetricSynthesisFilter() [1/2]

template<class TInputImage , class TOutputImage , class TFunction >

otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::MultiChannelsPolarimetricSynthesisFilter

protected

Constructor

Definition at line 38 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

References otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_ArchitectureType, and otb::PolarimetricData::New().

◆ ~MultiChannelsPolarimetricSynthesisFilter()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::~MultiChannelsPolarimetricSynthesisFilter ( )

inlineoverrideprotected

Destructor

Definition at line 169 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ MultiChannelsPolarimetricSynthesisFilter() [2/2]

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::MultiChannelsPolarimetricSynthesisFilter ( const Self & )

privatedelete

Psi Incident

Member Function Documentation

◆ BeforeThreadedGenerateData()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::BeforeThreadedGenerateData

overrideprotected

BeforeThreadedGenerateData

Definition at line 304 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

◆ ComputeElectromagneticFields()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::ComputeElectromagneticFields

protected

Computation of the electromagnetic fields Ei Er

Conversion coefficient Degre To Radian

Definition at line 222 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

References otb::CONST_PI_180.

◆ CreateAnother()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual::itk::LightObject::Pointer otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::CreateAnother ( void ) const

◆ ForceCoPolar()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::ForceCoPolar

Force the copolar mode

Force Copolar mode

Definition at line 323 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

◆ ForceCrossPolar()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::ForceCrossPolar

Force the crosspolar mode

Force Crosspolar mode

Definition at line 334 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

◆ GenerateOutputInformation()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GenerateOutputInformation

overrideprotected

MultiChannelsPolarimetricSynthesisFilter can produce an image which is a synthesis of channels HH, HV, VH and VV.

As such, MultiChannelsPolarimetricSynthesisFilter needs to provide an implementation for GenerateOutputInformation() in order to inform the pipeline execution model. The original documentation of this method is below.

See also: ProcessObject::GenerateOutputInformation()

GenerateOutputInformation()

Definition at line 51 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

◆ GetEmissionH()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual bool otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetEmissionH ( )

virtual

Psi Incident

◆ GetEmissionV()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual bool otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetEmissionV ( )

virtual

Psi Incident

◆ GetFunctor() [1/2]

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

FunctorType& otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetFunctor ( )

inline

Get the functor object. The functor is returned by reference. (Functors do not have to derive from itk::LightObject, so they do not necessarily have a reference count. So we cannot return a SmartPointer.)

Definition at line 84 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ GetFunctor() [2/2]

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

const FunctorType& otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetFunctor ( ) const

inline

Psi Incident

Definition at line 88 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ GetGain()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetGain ( )

virtual

Psi Incident

◆ GetKhiI()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetKhiI ( )

virtual

Psi Incident

◆ GetKhiR()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetKhiR ( )

virtual

Psi Incident

◆ GetMode()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual int otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetMode ( )

virtual

Psi Incident

◆ GetNameOfClass()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual const char* otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

◆ GetPsiI()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetPsiI ( )

virtual

Psi Incident

◆ GetPsiR()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::GetPsiR ( )

virtual

Psi Incident

◆ New()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

static Pointer otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::New ( )

static

Method for creation through the object factory.

◆ PrintSelf()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Printself

Definition at line 346 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

◆ SetEi()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetEi ( ComplexArrayType ei )

inline

Set the Incident ElectroMagneticField

Definition at line 110 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ SetEmissionH()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetEmissionH ( bool _arg )

virtual

Set/Get EmissionH

◆ SetEmissionV()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetEmissionV ( bool _arg )

virtual

Set/Get EmissionV

◆ SetEr()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetEr ( ComplexArrayType er )

inline

Set the Reflected ElectroMagneticField

Definition at line 118 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ SetFunctor()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetFunctor ( const FunctorType & functor )

inline

Set the functor object. This replaces the current Functor with a copy of the specified Functor. This allows the user to specify a functor that has ivars set differently than the default functor. This method requires an operator!=() be defined on the functor (or the compiler's default implementation of operator!=() being appropriate).

Definition at line 100 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ SetGain()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetGain ( double _arg )

virtual

Set the gain

◆ SetKhiI()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetKhiI ( double _arg )

virtual

Set/Get KhiI

◆ SetKhiR()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetKhiR ( double _arg )

virtual

Set/Get KhiR

◆ SetMode()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetMode ( int _arg )

virtual

Set/Get Mode

◆ SetPsiI()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetPsiI ( double _arg )

virtual

Set/Get PsiI

◆ SetPsiR()

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

virtual void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::SetPsiR ( double _arg )

virtual

Set/Get PsiR

◆ ThreadedGenerateData()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::ThreadedGenerateData	(	const OutputImageRegionType &	outputRegionForThread,
		itk::ThreadIdType	threadId
	)

overrideprotected

MultiChannelsPolarimetricSynthesisFilter can be implemented as a multithreaded filter. Therefore, this implementation provides a ThreadedGenerateData() routine which is called for each processing thread. The output image data is allocated automatically by the superclass prior to calling ThreadedGenerateData(). ThreadedGenerateData can only write to the portion of the output image specified by the parameter "outputRegionForThread"

See also: ImageToImageFilter::ThreadedGenerateData(), ImageToImageFilter::GenerateData()

ThreadedGenerateData Performs the pixel-wise addition

Definition at line 142 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

References otb::HH_HV, otb::HH_HV_VH_VV, otb::HH_HV_VV, and otb::VH_VV.

◆ VerifyAndForceInputs()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::VerifyAndForceInputs

protected

Verify and force the inputs, if only 2 or 3 channels are present

Definition at line 259 of file otbMultiChannelsPolarimetricSynthesisFilter.hxx.

References otb::HH_HV, otb::HH_HV_VH_VV, otb::HH_HV_VV, otb::HH_VH_VV, and otb::VH_VV.

Member Data Documentation

◆ m_ArchitectureType

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

PolarimetricData::Pointer otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_ArchitectureType

private

Architecture Type

Definition at line 235 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

Referenced by otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::MultiChannelsPolarimetricSynthesisFilter().

◆ m_Ei

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

ComplexArrayType otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_Ei

private

Champs Electromagnetic Incident

Definition at line 229 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_EmissionH

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

bool otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_EmissionH

private

Emission mode

Definition at line 240 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_EmissionV

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

bool otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_EmissionV

private

Psi Incident

Definition at line 241 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_Er

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

ComplexArrayType otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_Er

private

Champs Electromagnetic Reflechi

Definition at line 232 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_Functor

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

FunctorType otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_Functor

private

Psi Incident

Definition at line 237 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_Gain

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_Gain

private

Gain

Definition at line 223 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_KhiI

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_KhiI

private

Khi Incident

Definition at line 214 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_KhiR

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_KhiR

private

Khi Reflected

Definition at line 220 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_Mode

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

int otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_Mode

private

None = 0 , copolar = 1 , crosspolar = 2

Definition at line 226 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_PsiI

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_PsiI

private

Psi Incident

Definition at line 211 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

◆ m_PsiR

template<class TInputImage , class TOutputImage , class TFunction = Functor::PolarimetricSynthesisFunctor<typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TInputImage::InternalPixelType, typename TOutputImage::PixelType>>

double otb::MultiChannelsPolarimetricSynthesisFilter< TInputImage, TOutputImage, TFunction >::m_PsiR

private

Psi Reflected

Definition at line 217 of file otbMultiChannelsPolarimetricSynthesisFilter.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Typedef Documentation

◆ ComplexArrayType

◆ ComplexType

◆ ConstPointer

◆ FunctorType

◆ IndexArrayType

◆ InputImagePixelType

◆ InputImagePointer

◆ InputImageRegionType

◆ InputImageType

◆ InputPixelType

◆ OutputImagePixelType

◆ OutputImagePointer

◆ OutputImageRegionType

◆ OutputImageType

◆ Pointer

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ MultiChannelsPolarimetricSynthesisFilter() [1/2]

◆ ~MultiChannelsPolarimetricSynthesisFilter()

◆ MultiChannelsPolarimetricSynthesisFilter() [2/2]

Member Function Documentation

◆ BeforeThreadedGenerateData()

◆ ComputeElectromagneticFields()

◆ CreateAnother()

◆ ForceCoPolar()

◆ ForceCrossPolar()

◆ GenerateOutputInformation()

◆ GetEmissionH()

◆ GetEmissionV()

◆ GetFunctor() [1/2]

◆ GetFunctor() [2/2]

◆ GetGain()

◆ GetKhiI()

◆ GetKhiR()

◆ GetMode()

◆ GetNameOfClass()

◆ GetPsiI()

◆ GetPsiR()

◆ New()

◆ PrintSelf()

◆ SetEi()

◆ SetEmissionH()

◆ SetEmissionV()

◆ SetEr()

◆ SetFunctor()

◆ SetGain()

◆ SetKhiI()

◆ SetKhiR()

◆ SetMode()

◆ SetPsiI()

◆ SetPsiR()

◆ ThreadedGenerateData()

◆ VerifyAndForceInputs()

Member Data Documentation

◆ m_ArchitectureType

◆ m_Ei

◆ m_EmissionH

◆ m_EmissionV

◆ m_Er

◆ m_Functor

◆ m_Gain

◆ m_KhiI

◆ m_KhiR

◆ m_Mode

◆ m_PsiI

◆ m_PsiR
