otb::MetaImageFunction< TOutputPrecision, TCoordRep > Class Template Reference

#include <otbMetaImageFunction.h>

Inheritance diagram for otb::MetaImageFunction< TOutputPrecision, TCoordRep >:

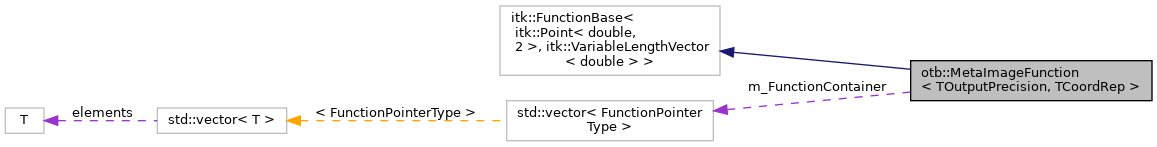

Collaboration diagram for otb::MetaImageFunction< TOutputPrecision, TCoordRep >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef TCoordRep	CoordRepType
typedef std::vector< FunctionPointerType >	FunctionContainerType
typedef FunctionType::Pointer	FunctionPointerType
typedef Superclass	FunctionType
typedef itk::VariableLengthVector< ValueType >	OutputType
typedef itk::SmartPointer< Self >	Pointer
typedef itk::Point< CoordRepType, 2 >	PointType
typedef MetaImageFunction	Self
typedef itk::FunctionBase< itk::Point< TCoordRep, 2 >, itk::VariableLengthVector< TOutputPrecision > >	Superclass
typedef TOutputPrecision	ValueType

Public Member Functions
void	AddFunction (FunctionType *function)
void	ClearFunctions ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
OutputType	Evaluate (const PointType &point) const override
virtual const char *	GetNameOfClass () const
FunctionType *	GetNthFunction (unsigned int index)
unsigned int	GetNumberOfFunctions () const
void	RemoveNthFunction (unsigned int index)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	MetaImageFunction ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~MetaImageFunction () override

Private Member Functions
	MetaImageFunction (const Self &)=delete
void	operator= (const Self &)=delete

Private Attributes
FunctionContainerType	m_FunctionContainer

Detailed Description

template<class TOutputPrecision = double, class TCoordRep = double>
class otb::MetaImageFunction< TOutputPrecision, TCoordRep >

Concatenate results from multiple ImageFunction.

The MetaImageFunction class allows calling multiple ImageFunction at the same location and to concatenate their result into a single VariableLengthVector.

In the case of ImageFunction which do not produce VariableLengthVector, one can wrap these function using the ImageFunctionAdaptor class, which will translate the image function output to a VariableLengthVector.

Definition at line 48 of file otbMetaImageFunction.h.

Member Typedef Documentation

ConstPointer

template<class TOutputPrecision = double, class TCoordRep = double>

typedef itk::SmartPointer<const Self> otb::MetaImageFunction< TOutputPrecision, TCoordRep >::ConstPointer

Definition at line 55 of file otbMetaImageFunction.h.

CoordRepType

template<class TOutputPrecision = double, class TCoordRep = double>

typedef TCoordRep otb::MetaImageFunction< TOutputPrecision, TCoordRep >::CoordRepType

Definition at line 61 of file otbMetaImageFunction.h.

FunctionContainerType

template<class TOutputPrecision = double, class TCoordRep = double>

typedef std::vector<FunctionPointerType> otb::MetaImageFunction< TOutputPrecision, TCoordRep >::FunctionContainerType

Definition at line 72 of file otbMetaImageFunction.h.

FunctionPointerType

template<class TOutputPrecision = double, class TCoordRep = double>

typedef FunctionType::Pointer otb::MetaImageFunction< TOutputPrecision, TCoordRep >::FunctionPointerType

Definition at line 71 of file otbMetaImageFunction.h.

FunctionType

template<class TOutputPrecision = double, class TCoordRep = double>

typedef Superclass otb::MetaImageFunction< TOutputPrecision, TCoordRep >::FunctionType

Definition at line 70 of file otbMetaImageFunction.h.

OutputType

template<class TOutputPrecision = double, class TCoordRep = double>

typedef itk::VariableLengthVector<ValueType> otb::MetaImageFunction< TOutputPrecision, TCoordRep >::OutputType

Definition at line 67 of file otbMetaImageFunction.h.

Pointer

template<class TOutputPrecision = double, class TCoordRep = double>

typedef itk::SmartPointer<Self> otb::MetaImageFunction< TOutputPrecision, TCoordRep >::Pointer

Definition at line 54 of file otbMetaImageFunction.h.

PointType

template<class TOutputPrecision = double, class TCoordRep = double>

typedef itk::Point<CoordRepType, 2> otb::MetaImageFunction< TOutputPrecision, TCoordRep >::PointType

Definition at line 65 of file otbMetaImageFunction.h.

Self

template<class TOutputPrecision = double, class TCoordRep = double>

typedef MetaImageFunction otb::MetaImageFunction< TOutputPrecision, TCoordRep >::Self

Definition at line 52 of file otbMetaImageFunction.h.

Superclass

template<class TOutputPrecision = double, class TCoordRep = double>

typedef itk::FunctionBase<itk::Point<TCoordRep, 2>, itk::VariableLengthVector<TOutputPrecision> > otb::MetaImageFunction< TOutputPrecision, TCoordRep >::Superclass

Definition at line 53 of file otbMetaImageFunction.h.

ValueType

template<class TOutputPrecision = double, class TCoordRep = double>

typedef TOutputPrecision otb::MetaImageFunction< TOutputPrecision, TCoordRep >::ValueType

Definition at line 66 of file otbMetaImageFunction.h.

Constructor & Destructor Documentation

MetaImageFunction() [1/2]

template<class TOutputPrecision , class TCoordRep >

otb::MetaImageFunction< TOutputPrecision, TCoordRep >::MetaImageFunction

protected

Constructor

Definition at line 32 of file otbMetaImageFunction.hxx.

~MetaImageFunction()

template<class TOutputPrecision , class TCoordRep >

otb::MetaImageFunction< TOutputPrecision, TCoordRep >::~MetaImageFunction

overrideprotected

Destructor

Definition at line 37 of file otbMetaImageFunction.hxx.

MetaImageFunction() [2/2]

template<class TOutputPrecision = double, class TCoordRep = double>

otb::MetaImageFunction< TOutputPrecision, TCoordRep >::MetaImageFunction ( const Self &  )

privatedelete

Member Function Documentation

AddFunction()

template<class TOutputPrecision , class TCoordRep >

void otb::MetaImageFunction< TOutputPrecision, TCoordRep >::AddFunction

(

FunctionType *

function

)

Add a new function to the functions vector

Definition at line 43 of file otbMetaImageFunction.hxx.

ClearFunctions()

template<class TOutputPrecision , class TCoordRep >

void otb::MetaImageFunction< TOutputPrecision, TCoordRep >::ClearFunctions

Add a new function the functions vector (compatibility via adapters) Clear functions vector

Definition at line 49 of file otbMetaImageFunction.hxx.

CreateAnother()

template<class TOutputPrecision = double, class TCoordRep = double>

virtual::itk::LightObject::Pointer otb::MetaImageFunction< TOutputPrecision, TCoordRep >::CreateAnother

(

void

)

const

Evaluate()

template<class TOutputPrecision , class TCoordRep >

MetaImageFunction< TOutputPrecision, TCoordRep >::OutputType otb::MetaImageFunction< TOutputPrecision, TCoordRep >::Evaluate ( const PointType &  point ) const

override

Evaluate the function at the given location

Definition at line 74 of file otbMetaImageFunction.hxx.

GetNameOfClass()

template<class TOutputPrecision = double, class TCoordRep = double>

virtual const char* otb::MetaImageFunction< TOutputPrecision, TCoordRep >::GetNameOfClass ( ) const

virtual

GetNthFunction()

template<class TOutputPrecision , class TCoordRep >

MetaImageFunction< TOutputPrecision, TCoordRep >::FunctionType * otb::MetaImageFunction< TOutputPrecision, TCoordRep >::GetNthFunction

(

unsigned int

index

)

Retrieve the nth function

Definition at line 61 of file otbMetaImageFunction.hxx.

GetNumberOfFunctions()

template<class TOutputPrecision , class TCoordRep >

unsigned int otb::MetaImageFunction< TOutputPrecision, TCoordRep >::GetNumberOfFunctions

Get the number of function registered

Definition at line 55 of file otbMetaImageFunction.hxx.

New()

template<class TOutputPrecision = double, class TCoordRep = double>

static Pointer otb::MetaImageFunction< TOutputPrecision, TCoordRep >::New ( )

static

operator=()

template<class TOutputPrecision = double, class TCoordRep = double>

void otb::MetaImageFunction< TOutputPrecision, TCoordRep >::operator= ( const Self &  )

privatedelete

PrintSelf()

template<class TOutputPrecision , class TCoordRep >

void otb::MetaImageFunction< TOutputPrecision, TCoordRep >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

PrintSelf method

Definition at line 110 of file otbMetaImageFunction.hxx.

RemoveNthFunction()

template<class TOutputPrecision , class TCoordRep >

void otb::MetaImageFunction< TOutputPrecision, TCoordRep >::RemoveNthFunction

(

unsigned int

index

)

Remove the nth function

Definition at line 67 of file otbMetaImageFunction.hxx.

Member Data Documentation

m_FunctionContainer

template<class TOutputPrecision = double, class TCoordRep = double>

FunctionContainerType otb::MetaImageFunction< TOutputPrecision, TCoordRep >::m_FunctionContainer

private

Definition at line 109 of file otbMetaImageFunction.h.

---

The documentation for this class was generated from the following files:

• otbMetaImageFunction.h
• otbMetaImageFunction.hxx
