otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator > Class Template Reference
Group Core » Module OTBEdge

#include <otbLineRatioDetectorImageFilter.h>

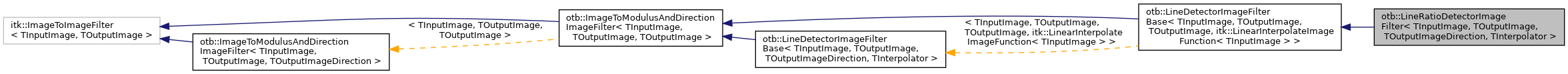

+ Inheritance diagram for otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >:
+ Collaboration diagram for otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >:
typedef LineRatioDetectorImageFilter Self

typedef LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator > Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef Superclass::InputImageType InputImageType

typedef Superclass::OutputImageType OutputImageType

typedef Superclass::OutputImageDirectionType OutputImageDirectionType

typedef Superclass::InterpolatorType InterpolatorType

typedef InterpolatorType::Pointer InterpolatorPointer

typedef InterpolatorType::CoordRepType CoordRepType

typedef InputImageType::PointType TPoint

typedef InputImageType::PixelType InputPixelType

typedef OutputImageType::PixelType OutputPixelType

typedef InputImageType::RegionType InputImageRegionType

typedef OutputImageType::RegionType OutputImageRegionType

typedef InputImageType::SizeType SizeType

static const unsigned int InputImageDimension = TInputImage::ImageDimension

static const unsigned int OutputImageDimension = TOutputImage::ImageDimension

static Pointer New ()

virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const

 LineRatioDetectorImageFilter ()

 ~LineRatioDetectorImageFilter () override

void PrintSelf (std::ostream &os, itk::Indent indent) const override

double ComputeMeasure (std::vector< double > *m1, std::vector< double > *m2, std::vector< double > *m3) override

 LineRatioDetectorImageFilter (const Self &)=delete

void operator= (const Self &)=delete


Additional Inherited Members

- Public Types inherited from otb::LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImage, itk::LinearInterpolateImageFunction< TInputImage > >
typedef LineDetectorImageFilterBase Self

typedef ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImage > Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef Superclass::InputImageType InputImageType

typedef Superclass::OutputImageType OutputImageType

typedef Superclass::OutputImageDirectionType OutputImageDirectionType

typedef itk::LinearInterpolateImageFunction< TInputImage > InterpolatorType

typedef InterpolatorType::Pointer InterpolatorPointer

typedef InterpolatorType::CoordRepType CoordRepType

typedef InputImageType::PointType TPoint

typedef InputImageType::PixelType InputPixelType

typedef OutputImageType::PixelType OutputPixelType

typedef OutputImageType::Pointer OutputImagePointerType

typedef InputImageType::RegionType InputImageRegionType

typedef OutputImageType::RegionType OutputImageRegionType

typedef InputImageType::SizeType SizeType

- Public Types inherited from otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImage >
typedef ImageToModulusAndDirectionImageFilter Self

typedef itk::ImageToImageFilter< TInputImage, TOutputImage > Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef Superclass::InputImageType InputImageType

typedef Superclass::OutputImageType OutputImageType

typedef TOutputImage OutputImageDirectionType

typedef InputImageType::Pointer InputImagePointer

typedef InputImageType::ConstPointer InputImageConstPointer

typedef InputImageType::RegionType InputImageRegionType

typedef OutputImageType::Pointer OutputImagePointer

typedef OutputImageType::ConstPointer OutputImageConstPointer

typedef OutputImageType::RegionType OutputImageRegionType

- Public Member Functions inherited from otb::LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImage, itk::LinearInterpolateImageFunction< TInputImage > >
virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const

virtual void SetLengthLine (unsigned int _arg)

virtual const unsigned int & GetLengthLine () const

virtual void SetWidthLine (unsigned int _arg)

virtual const unsigned int & GetWidthLine () const

virtual void SetRadius (SizeType _arg)

virtual const SizeType & GetRadius () const

virtual void SetThreshold (OutputPixelType _arg)

virtual const OutputPixelType & GetThreshold () const

virtual void SetNumberOfDirections (unsigned int _arg)

virtual const unsigned int & GetNumberOfDirections () const

void GenerateInputRequestedRegion () override

- Public Member Functions inherited from otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImage >
virtual ::itk::LightObject::Pointer CreateAnother (void) const

const OutputImageType * GetOutput () const

OutputImageType * GetOutput ()

const OutputImageDirectionType * GetOutputDirection () const

OutputImageDirectionType * GetOutputDirection ()

void GenerateInputRequestedRegion () override

- Static Public Member Functions inherited from otb::LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImage, itk::LinearInterpolateImageFunction< TInputImage > >
static Pointer New ()

- Static Public Member Functions inherited from otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImage >
static Pointer New ()

- Static Public Attributes inherited from otb::LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImage, itk::LinearInterpolateImageFunction< TInputImage > >
static const unsigned int InputImageDimension

static const unsigned int OutputImageDimension

- Static Public Attributes inherited from otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImage >
static const unsigned int InputImageDimension

static const unsigned int OutputImageDimension

- Protected Member Functions inherited from otb::LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImage, itk::LinearInterpolateImageFunction< TInputImage > >
 LineDetectorImageFilterBase ()

 ~LineDetectorImageFilterBase () override

void PrintSelf (std::ostream &os, itk::Indent indent) const override

void BeforeThreadedGenerateData () override

void ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) override

- Protected Member Functions inherited from otb::ImageToModulusAndDirectionImageFilter< TInputImage, TOutputImage, TOutputImage >
 ImageToModulusAndDirectionImageFilter ()

 ~ImageToModulusAndDirectionImageFilter () override

void PrintSelf (std::ostream &os, itk::Indent indent) const override

- Protected Attributes inherited from otb::LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImage, itk::LinearInterpolateImageFunction< TInputImage > >
unsigned int m_LengthLine

unsigned int m_WidthLine

SizeType m_Radius

SizeType m_FaceList

OutputPixelType m_Threshold

unsigned int m_NumberOfDirections


Detailed Description

template<class TInputImage, class TOutputImage, class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
class otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >

Application of detection of linear features based on the ratio of local means.

This class implements the Tupin's detector D1 used to detect two parallel lines. This detector is derived from the coupling of two ratio edge detectors (Touzi detector) on both side of a region.

The region is divided in three zones to delimite two parallel lines. The size of one zone is defined by the product of the width of the linear feature by its length.

For each vertical line, we calculate the intensity of detection $ R_{12}(\theta_{0}) $ between zones 1 and 2 and $ R_{13}(\theta_{0})$ between zones 1 and 3 according to the principle of the Touzi's filter.

The response of the edge detector between two zones i and j is:

\[R_{ij}=1-\min (\frac{\mu_{i}}{\mu_{j}};\frac{\mu_{j}}{\mu_{i}}) \]

The intensity of detection in the three other directions $ R(\theta_{i}) $ is determined by rotation of the pixels of each zone around the central pixel of the region considered. By default, the pixel location after rotation is determined by the Spline interpolator.

Finally, the intensity of detection formed by the two parallel lines is determined by the minimum response of a ration edge detector on both sides of the linear structure:

\[ R = \min (R_{12}; R_{13}) \]

where $ R_{12} $ and $ R_{13}$ are the maximum response of the ratio edge detector of $ R(\theta_{i}) $. The intensity of detection lies in the interval $ [0, 1] $.

Definition at line 67 of file otbLineRatioDetectorImageFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef itk::SmartPointer<const Self> otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::ConstPointer

typedef for the classes standards.

Definition at line 79 of file otbLineRatioDetectorImageFilter.h.

◆ CoordRepType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef InterpolatorType::CoordRepType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::CoordRepType

typedef for the classes standards.

Definition at line 94 of file otbLineRatioDetectorImageFilter.h.

◆ InputImageRegionType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef InputImageType::RegionType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::InputImageRegionType

typedef for the classes standards.

Definition at line 102 of file otbLineRatioDetectorImageFilter.h.

◆ InputImageType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef Superclass::InputImageType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::InputImageType

typedef for the classes standards.

Definition at line 85 of file otbLineRatioDetectorImageFilter.h.

◆ InputPixelType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef InputImageType::PixelType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::InputPixelType

Definition of the input and output images

Definition at line 99 of file otbLineRatioDetectorImageFilter.h.

◆ InterpolatorPointer

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef InterpolatorType::Pointer otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::InterpolatorPointer

Typedefs to describe and access Interpolator

Definition at line 93 of file otbLineRatioDetectorImageFilter.h.

◆ InterpolatorType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef Superclass::InterpolatorType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::InterpolatorType

typedef for the classes standards.

Definition at line 90 of file otbLineRatioDetectorImageFilter.h.

◆ OutputImageDirectionType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef Superclass::OutputImageDirectionType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::OutputImageDirectionType

typedef for the classes standards.

Definition at line 89 of file otbLineRatioDetectorImageFilter.h.

◆ OutputImageRegionType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef OutputImageType::RegionType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::OutputImageRegionType

typedef for the classes standards.

Definition at line 103 of file otbLineRatioDetectorImageFilter.h.

◆ OutputImageType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef Superclass::OutputImageType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::OutputImageType

typedef for the classes standards.

Definition at line 88 of file otbLineRatioDetectorImageFilter.h.

◆ OutputPixelType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef OutputImageType::PixelType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::OutputPixelType

typedef for the classes standards.

Definition at line 100 of file otbLineRatioDetectorImageFilter.h.

◆ Pointer

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef itk::SmartPointer<Self> otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::Pointer

typedef for the classes standards.

Definition at line 78 of file otbLineRatioDetectorImageFilter.h.

◆ Self

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef LineRatioDetectorImageFilter otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::Self

typedef for the classes standards.

Definition at line 76 of file otbLineRatioDetectorImageFilter.h.

◆ SizeType

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef InputImageType::SizeType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::SizeType

Definition of the size of the images.

Definition at line 106 of file otbLineRatioDetectorImageFilter.h.

◆ Superclass

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef LineDetectorImageFilterBase<TInputImage, TOutputImage, TOutputImageDirection, TInterpolator> otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::Superclass

typedef for the classes standards.

Definition at line 77 of file otbLineRatioDetectorImageFilter.h.

◆ TPoint

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
typedef InputImageType::PointType otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::TPoint

typedef for the classes standards.

Definition at line 96 of file otbLineRatioDetectorImageFilter.h.

Constructor & Destructor Documentation

◆ LineRatioDetectorImageFilter() [1/2]

template<class TInputImage , class TOutputImage , class TOutputImageDirection , class TInterpolator >
otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::LineRatioDetectorImageFilter
protected

typedef for the classes standards.

Definition at line 42 of file otbLineRatioDetectorImageFilter.hxx.

◆ ~LineRatioDetectorImageFilter()

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::~LineRatioDetectorImageFilter ( )
inlineoverrideprotected

typedef for the classes standards.

Definition at line 110 of file otbLineRatioDetectorImageFilter.h.

◆ LineRatioDetectorImageFilter() [2/2]

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::LineRatioDetectorImageFilter ( const Self &  )
privatedelete

typedef for the classes standards.

Member Function Documentation

◆ ComputeMeasure()

template<class TInputImage , class TOutputImage , class TOutputImageDirection , class TInterpolator >
double otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::ComputeMeasure ( std::vector< double > *  m1,
std::vector< double > *  m2,
std::vector< double > *  m3
)
overrideprotectedvirtual

typedef for the classes standards.

Reimplemented from otb::LineDetectorImageFilterBase< TInputImage, TOutputImage, TOutputImage, itk::LinearInterpolateImageFunction< TInputImage > >.

Definition at line 52 of file otbLineRatioDetectorImageFilter.hxx.

◆ CreateAnother()

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
virtual::itk::LightObject::Pointer otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::CreateAnother ( void  ) const

typedef for the classes standards.

◆ GetNameOfClass()

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
virtual const char* otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::GetNameOfClass ( ) const
virtual

Return the name of the class.

◆ New()

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
static Pointer otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::New ( )
static

Method for management of the "object factory".

◆ operator=()

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
void otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::operator= ( const Self &  )
privatedelete

typedef for the classes standards.

◆ PrintSelf()

template<class TInputImage , class TOutputImage , class TOutputImageDirection , class TInterpolator >
void otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

Standard "PrintSelf" method

Definition at line 113 of file otbLineRatioDetectorImageFilter.hxx.

Member Data Documentation

◆ InputImageDimension

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
const unsigned int otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::InputImageDimension = TInputImage::ImageDimension
static

Extract dimensions as well of the images of entry of exit.

Definition at line 71 of file otbLineRatioDetectorImageFilter.h.

◆ OutputImageDimension

template<class TInputImage , class TOutputImage , class TOutputImageDirection = TOutputImage, class TInterpolator = itk::LinearInterpolateImageFunction<TInputImage>>
const unsigned int otb::LineRatioDetectorImageFilter< TInputImage, TOutputImage, TOutputImageDirection, TInterpolator >::OutputImageDimension = TOutputImage::ImageDimension
static

typedef for the classes standards.

Definition at line 72 of file otbLineRatioDetectorImageFilter.h.

The documentation for this class was generated from the following files:
Generated at Wed Feb 28 2024 15:25:12 for OTB with   doxygen 1.8.17
