#include <otbKNearestNeighborsMachineLearningModel.h>

Inheritance diagram for otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >:

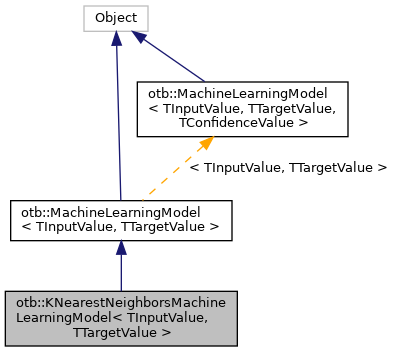

Collaboration diagram for otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >:

Public Types
typedef Superclass::ConfidenceValueType	ConfidenceValueType

typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::InputListSampleType	InputListSampleType

typedef Superclass::InputSampleType	InputSampleType

typedef Superclass::InputValueType	InputValueType

typedef itk::SmartPointer< Self >	Pointer

typedef Superclass::ProbaSampleType	ProbaSampleType

typedef KNearestNeighborsMachineLearningModel	Self

typedef MachineLearningModel< TInputValue, TTargetValue >	Superclass

typedef Superclass::TargetListSampleType	TargetListSampleType

typedef Superclass::TargetSampleType	TargetSampleType

typedef Superclass::TargetValueType	TargetValueType

Public Types inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
typedef MachineLearningModel	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef MLMSampleTraits< TInputValue >::ValueType	InputValueType

typedef MLMSampleTraits< TInputValue >::SampleType	InputSampleType

typedef itk::Statistics::ListSample< InputSampleType >	InputListSampleType

typedef MLMTargetTraits< TTargetValue >::ValueType	TargetValueType

typedef MLMTargetTraits< TTargetValue >::SampleType	TargetSampleType

typedef itk::Statistics::ListSample< TargetSampleType >	TargetListSampleType

typedef MLMTargetTraits< double >::ValueType	ConfidenceValueType

typedef MLMTargetTraits< double >::SampleType	ConfidenceSampleType

typedef itk::Statistics::ListSample< ConfidenceSampleType >	ConfidenceListSampleType

typedef itk::VariableLengthVector< double >	ProbaSampleType

typedef itk::Statistics::ListSample< ProbaSampleType >	ProbaListSampleType

enum	{ KNN_VOTING, KNN_MEAN, KNN_MEDIAN }

static Pointer	New ()

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

virtual int	GetK ()

virtual void	SetK (int _arg)

virtual int	GetDecisionRule ()

virtual void	SetDecisionRule (int _arg)

void	Train () override

void	Save (const std::string &filename, const std::string &name="") override

void	Load (const std::string &filename, const std::string &name="") override

Classification model file compatibility tests
cv::Ptr< cv::ml::KNearest >	m_KNearestModel

int	m_K

int	m_DecisionRule

bool	CanReadFile (const std::string &) override

bool	CanWriteFile (const std::string &) override

	KNearestNeighborsMachineLearningModel ()

	~KNearestNeighborsMachineLearningModel () override=default

TargetSampleType	DoPredict (const InputSampleType &input, ConfidenceValueType quality=nullptr, ProbaSampleType proba=nullptr) const override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	KNearestNeighborsMachineLearningModel (const Self &)=delete

void	operator= (const Self &)=delete

Additional Inherited Members
Public Member Functions inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
virtual const char *	GetNameOfClass () const

TargetSampleType	Predict (const InputSampleType &input, ConfidenceValueType quality=nullptr, ProbaSampleType proba=nullptr) const

virtual void	SetDimension (unsigned int _arg)

virtual unsigned int	GetDimension ()

TargetListSampleType::Pointer	PredictBatch (const InputListSampleType input, ConfidenceListSampleType quality=nullptr, ProbaListSampleType *proba=nullptr) const

bool	HasConfidenceIndex () const

bool	HasProbaIndex () const

virtual void	SetInputListSample (InputListSampleType *_arg)

	itkGetObjectMacro (InputListSample, InputListSampleType)

virtual const InputListSampleType *	GetInputListSample () const

	itkGetObjectMacro (TargetListSample, TargetListSampleType)

	itkGetObjectMacro (ConfidenceListSample, ConfidenceListSampleType)

virtual void	SetTargetListSample (TargetListSampleType *_arg)

virtual bool	GetRegressionMode ()

void	SetRegressionMode (bool flag)

Protected Member Functions inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
	MachineLearningModel ()

	~MachineLearningModel () override=default

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Protected Attributes inherited from otb::MachineLearningModel< TInputValue, TTargetValue >
InputListSampleType::Pointer	m_InputListSample

InputListSampleType::Pointer	m_ValidationListSample

TargetListSampleType::Pointer	m_TargetListSample

ConfidenceListSampleType::Pointer	m_ConfidenceListSample

bool	m_RegressionMode

bool	m_IsRegressionSupported

bool	m_ConfidenceIndex

bool	m_ProbaIndex

bool	m_IsDoPredictBatchMultiThreaded

unsigned int	m_Dimension

Detailed Description

template<class TInputValue, class TTargetValue>
class otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >

Definition at line 35 of file otbKNearestNeighborsMachineLearningModel.h.

Member Typedef Documentation

◆ ConfidenceValueType

template<class TInputValue , class TTargetValue >

typedef Superclass::ConfidenceValueType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::ConfidenceValueType

Definition at line 50 of file otbKNearestNeighborsMachineLearningModel.h.

◆ ConstPointer

template<class TInputValue , class TTargetValue >

typedef itk::SmartPointer<const Self> otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::ConstPointer

Definition at line 42 of file otbKNearestNeighborsMachineLearningModel.h.

◆ InputListSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::InputListSampleType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::InputListSampleType

Definition at line 46 of file otbKNearestNeighborsMachineLearningModel.h.

◆ InputSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::InputSampleType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::InputSampleType

Definition at line 45 of file otbKNearestNeighborsMachineLearningModel.h.

◆ InputValueType

template<class TInputValue , class TTargetValue >

typedef Superclass::InputValueType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::InputValueType

Definition at line 44 of file otbKNearestNeighborsMachineLearningModel.h.

◆ Pointer

template<class TInputValue , class TTargetValue >

typedef itk::SmartPointer<Self> otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::Pointer

Definition at line 41 of file otbKNearestNeighborsMachineLearningModel.h.

◆ ProbaSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::ProbaSampleType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::ProbaSampleType

Definition at line 51 of file otbKNearestNeighborsMachineLearningModel.h.

◆ Self

template<class TInputValue , class TTargetValue >

typedef KNearestNeighborsMachineLearningModel otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::Self

Standard class typedefs.

Definition at line 39 of file otbKNearestNeighborsMachineLearningModel.h.

◆ Superclass

template<class TInputValue , class TTargetValue >

typedef MachineLearningModel<TInputValue, TTargetValue> otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::Superclass

Definition at line 40 of file otbKNearestNeighborsMachineLearningModel.h.

◆ TargetListSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::TargetListSampleType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::TargetListSampleType

Definition at line 49 of file otbKNearestNeighborsMachineLearningModel.h.

◆ TargetSampleType

template<class TInputValue , class TTargetValue >

typedef Superclass::TargetSampleType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::TargetSampleType

Definition at line 48 of file otbKNearestNeighborsMachineLearningModel.h.

◆ TargetValueType

template<class TInputValue , class TTargetValue >

typedef Superclass::TargetValueType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::TargetValueType

Definition at line 47 of file otbKNearestNeighborsMachineLearningModel.h.

Member Enumeration Documentation

◆ anonymous enum

template<class TInputValue , class TTargetValue >

anonymous enum

Decision rule once the KNN are found : [for classification]

KNN_VOTING : output value with maximum occurrences (for classification) [for regression]
KNN_MEAN : output mean value of neighbors
KNN_MEDIAN : output median value of neighbors

Enumerator
KNN_VOTING
KNN_MEAN
KNN_MEDIAN

Definition at line 72 of file otbKNearestNeighborsMachineLearningModel.h.

Constructor & Destructor Documentation

◆ KNearestNeighborsMachineLearningModel() [1/2]

template<class TInputValue , class TTargetValue >

otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::KNearestNeighborsMachineLearningModel

protected

Constructor

Definition at line 36 of file otbKNearestNeighborsMachineLearningModel.hxx.

References otb::MachineLearningModel< TInputValue, TTargetValue >::m_ConfidenceIndex, and otb::MachineLearningModel< TInputValue, TTargetValue >::m_IsRegressionSupported.

◆ ~KNearestNeighborsMachineLearningModel()

template<class TInputValue , class TTargetValue >

otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::~KNearestNeighborsMachineLearningModel ( )

overrideprotecteddefault

Destructor

◆ KNearestNeighborsMachineLearningModel() [2/2]

template<class TInputValue , class TTargetValue >

otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::KNearestNeighborsMachineLearningModel ( const Self & )

privatedelete

Is the input model file readable and compatible with the corresponding classifier ?

Member Function Documentation

◆ CanReadFile()

template<class TInputValue , class TTargetValue >

bool otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::CanReadFile ( const std::string & file )

overridevirtual

Is the input model file readable and compatible with the corresponding classifier ?

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 257 of file otbKNearestNeighborsMachineLearningModel.hxx.

◆ CanWriteFile()

template<class TInputValue , class TTargetValue >

bool otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::CanWriteFile ( const std::string & )

overridevirtual

Is the input model file writable and compatible with the corresponding classifier ?

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 271 of file otbKNearestNeighborsMachineLearningModel.hxx.

◆ CreateAnother()

template<class TInputValue , class TTargetValue >

virtual::itk::LightObject::Pointer otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::CreateAnother ( void ) const

Decision rule once the KNN are found : [for classification]

KNN_VOTING : output value with maximum occurrences (for classification) [for regression]
KNN_MEAN : output mean value of neighbors
KNN_MEDIAN : output median value of neighbors

◆ DoPredict()

template<class TInputValue , class TTargetValue >

KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::TargetSampleType otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::DoPredict	(	const InputSampleType &	input,
		ConfidenceValueType *	quality = `nullptr`,
		ProbaSampleType *	proba = `nullptr`
	)		const

overrideprotected

Predict values using the model

Definition at line 84 of file otbKNearestNeighborsMachineLearningModel.hxx.

◆ GetDecisionRule()

template<class TInputValue , class TTargetValue >

virtual int otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::GetDecisionRule ( )

virtual

Setters/Getters to the decision rule

◆ GetK()

template<class TInputValue , class TTargetValue >

virtual int otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::GetK ( )

virtual

Setters/Getters to the number of neighbors to use Default is 32

See also: http://docs.opencv.org/modules/ml/doc/k_nearest_neighbors.html

◆ GetNameOfClass()

template<class TInputValue , class TTargetValue >

virtual const char* otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::GetNameOfClass ( ) const

virtual

Decision rule once the KNN are found : [for classification]

KNN_VOTING : output value with maximum occurrences (for classification) [for regression]
KNN_MEAN : output mean value of neighbors
KNN_MEDIAN : output median value of neighbors

◆ Load()

template<class TInputValue , class TTargetValue >

void otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::Load	(	const std::string &	filename,
		const std::string &	name = `""`
	)

overridevirtual

Load the model from file

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 149 of file otbKNearestNeighborsMachineLearningModel.hxx.

◆ New()

template<class TInputValue , class TTargetValue >

static Pointer otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::New ( )

static

Run-time type information (and related methods).

◆ operator=()

template<class TInputValue , class TTargetValue >

void otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::operator= ( const Self & )

privatedelete

Is the input model file readable and compatible with the corresponding classifier ?

◆ PrintSelf()

template<class TInputValue , class TTargetValue >

void otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

PrintSelf method

Definition at line 278 of file otbKNearestNeighborsMachineLearningModel.hxx.

◆ Save()

template<class TInputValue , class TTargetValue >

void otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::Save	(	const std::string &	filename,
		const std::string &	name = `""`
	)

overridevirtual

Save the model to file

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 138 of file otbKNearestNeighborsMachineLearningModel.hxx.

◆ SetDecisionRule()

template<class TInputValue , class TTargetValue >

virtual void otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::SetDecisionRule ( int _arg )

virtual

Decision rule once the KNN are found : [for classification]

KNN_VOTING : output value with maximum occurrences (for classification) [for regression]
KNN_MEAN : output mean value of neighbors
KNN_MEDIAN : output median value of neighbors

◆ SetK()

template<class TInputValue , class TTargetValue >

virtual void otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::SetK ( int _arg )

virtual

Decision rule once the KNN are found : [for classification]

KNN_VOTING : output value with maximum occurrences (for classification) [for regression]
KNN_MEAN : output mean value of neighbors
KNN_MEDIAN : output median value of neighbors

◆ Train()

template<class TInputValue , class TTargetValue >

void otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::Train

overridevirtual

Train the machine learning model

Implements otb::MachineLearningModel< TInputValue, TTargetValue >.

Definition at line 48 of file otbKNearestNeighborsMachineLearningModel.hxx.

Member Data Documentation

◆ m_DecisionRule

template<class TInputValue , class TTargetValue >

int otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::m_DecisionRule

private

Is the input model file readable and compatible with the corresponding classifier ?

Definition at line 124 of file otbKNearestNeighborsMachineLearningModel.h.

◆ m_K

template<class TInputValue , class TTargetValue >

int otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::m_K

private

Is the input model file readable and compatible with the corresponding classifier ?

Definition at line 122 of file otbKNearestNeighborsMachineLearningModel.h.

◆ m_KNearestModel

template<class TInputValue , class TTargetValue >

cv::Ptr<cv::ml::KNearest> otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >::m_KNearestModel

private

Is the input model file readable and compatible with the corresponding classifier ?

Definition at line 120 of file otbKNearestNeighborsMachineLearningModel.h.

The documentation for this class was generated from the following files:

Public Types

Classification model file compatibility tests

Additional Inherited Members

Detailed Description

template<class TInputValue, class TTargetValue> class otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >

Member Typedef Documentation

◆ ConfidenceValueType

◆ ConstPointer

◆ InputListSampleType

◆ InputSampleType

◆ InputValueType

◆ Pointer

◆ ProbaSampleType

◆ Self

◆ Superclass

◆ TargetListSampleType

◆ TargetSampleType

◆ TargetValueType

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ KNearestNeighborsMachineLearningModel() [1/2]

◆ ~KNearestNeighborsMachineLearningModel()

◆ KNearestNeighborsMachineLearningModel() [2/2]

Member Function Documentation

◆ CanReadFile()

◆ CanWriteFile()

◆ CreateAnother()

◆ DoPredict()

◆ GetDecisionRule()

◆ GetK()

◆ GetNameOfClass()

◆ Load()

◆ New()

◆ operator=()

◆ PrintSelf()

◆ Save()

◆ SetDecisionRule()

◆ SetK()

◆ Train()

Member Data Documentation

◆ m_DecisionRule

◆ m_K

◆ m_KNearestModel

template<class TInputValue, class TTargetValue>
class otb::KNearestNeighborsMachineLearningModel< TInputValue, TTargetValue >
