#include <otbImageToSIFTKeyPointSetFilter.h>

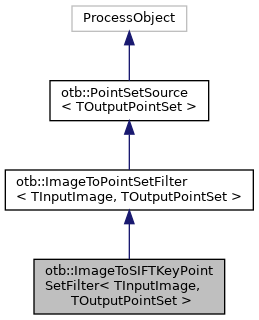

Inheritance diagram for otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >:

Collaboration diagram for otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef TInputImage::Pointer	InputImagePointerType

typedef TInputImage	InputImageType

typedef TOutputPointSet::PixelType	OutputPixelType

typedef TOutputPointSet::PointIdentifier	OutputPointIdentifierType

typedef TOutputPointSet::Pointer	OutputPointSetPointerType

typedef TOutputPointSet	OutputPointSetType

typedef TOutputPointSet::PointType	OutputPointType

typedef TInputImage::PixelType	PixelType

typedef itk::SmartPointer< Self >	Pointer

typedef ImageToSIFTKeyPointSetFilter	Self

typedef ImageToPointSetFilter< TInputImage, TOutputPointSet >	Superclass

typedef itk::Vector< PixelType, 3 >	VectorPointType

Public Types inherited from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
typedef itk::SmartPointer< const Self >	ConstPointer

typedef InputImageType::ConstPointer	InputImageConstPointer

typedef InputImageType::PixelType	InputImagePixelType

typedef InputImageType::Pointer	InputImagePointer

typedef InputImageType::RegionType	InputImageRegionType

typedef TInputImage	InputImageType

typedef Superclass::OutputPointSetPointer	OutputPointSetPointer

typedef Superclass::OutputPointSetType	OutputPointSetType

typedef Superclass::PointDataContainerType	PointDataContainerType

typedef itk::SmartPointer< Self >	Pointer

typedef Superclass::PointsContainerType	PointsContainerType

typedef itk::ProcessObject	ProcessObjectType

typedef ImageToPointSetFilter	Self

typedef PointSetSource< TOutputPointSet >	Superclass

Public Types inherited from otb::PointSetSource< TOutputPointSet >
typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::DataObject::Pointer	DataObjectPointer

typedef itk::ProcessObject::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType

typedef OutputPointSetType::Pointer	OutputPointSetPointer

typedef TOutputPointSet	OutputPointSetType

typedef OutputPointSetType::PointDataContainer	PointDataContainerType

typedef itk::SmartPointer< Self >	Pointer

typedef OutputPointSetType::PointsContainer	PointsContainerType

typedef PointSetSource	Self

typedef itk::ProcessObject	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

Public Member Functions inherited from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
void	SetInput (unsigned int idx, const InputImageType *input)

void	SetInput (const InputImageType *input)

const InputImageType *	GetInput (unsigned int idx)

const InputImageType *	GetInput ()

void	GenerateOutputInformation (void) override

Public Member Functions inherited from otb::PointSetSource< TOutputPointSet >
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

OutputPointSetType *	GetOutput (void)

OutputPointSetType *	GetOutput (DataObjectPointerArraySizeType idx)

void	SetOutput (OutputPointSetType *output)

virtual void	GraftOutput (itk::DataObject *output)

virtual void	GraftNthOutput (DataObjectPointerArraySizeType idx, itk::DataObject *output)

DataObjectPointer	MakeOutput (DataObjectPointerArraySizeType idx) override

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from otb::PointSetSource< TOutputPointSet >
static Pointer	New ()

typedef itk::ExpandImageFilter< TInputImage, TInputImage >	ExpandFilterType

typedef ExpandFilterType::Pointer	ExpandFilterPointerType

typedef itk::ShrinkImageFilter< InputImageType, InputImageType >	ShrinkFilterType

typedef ShrinkFilterType::Pointer	ShrinkFilterPointerType

typedef itk::RecursiveGaussianImageFilter< InputImageType, InputImageType >	GaussianFilterType

typedef GaussianFilterType::Pointer	GaussianFilterPointerType

typedef otb::ImageList< InputImageType >	ImageListType

typedef ImageListType::Pointer	ImageListPointerType

typedef itk::SubtractImageFilter< InputImageType, InputImageType, InputImageType >	SubtractFilterType

typedef SubtractFilterType::Pointer	SubtractFilterPointerType

typedef itk::ConstNeighborhoodIterator< InputImageType >	NeighborhoodIteratorType

typedef NeighborhoodIteratorType::NeighborhoodType	NeighborhoodType

typedef NeighborhoodType::OffsetType	OffsetType

typedef itk::ImageRegionConstIterator< InputImageType >	RegionIteratorType

typedef itk::MinimumMaximumImageCalculator< InputImageType >	MinimumMaximumCalculatorType

typedef MinimumMaximumCalculatorType::Pointer	MinimumMaximumCalculatorPointerType

typedef itk::GradientImageFilter< InputImageType, PixelType, PixelType >	GradientFilterType

typedef GradientFilterType::Pointer	GradientFilterPointerType

typedef GradientFilterType::OutputImageType	GradientOutputImageType

typedef itk::UnaryFunctorImageFilter< GradientOutputImageType, InputImageType, Functor::MagnitudeFunctor< typename GradientOutputImageType::PixelType, typename InputImageType::PixelType > >	MagnitudeFilterType

typedef MagnitudeFilterType::Pointer	MagnitudeFilterPointerType

typedef itk::UnaryFunctorImageFilter< GradientOutputImageType, InputImageType, Functor::OrientationFunctor< typename GradientOutputImageType::PixelType, typename InputImageType::PixelType > >	OrientationFilterType

typedef OrientationFilterType::Pointer	OrientationFilterPointerType

unsigned int	m_OctavesNumber

unsigned int	m_ScalesNumber

unsigned int	m_ExpandFactors

unsigned int	m_ShrinkFactors

double	m_DoGThreshold

double	m_EdgeThreshold

double	m_RatioEdgeThreshold

PixelType	m_GradientMagnitudeThreshold

GaussianFilterType::ScalarRealType	m_Sigma0

double	m_Sigmak

double	m_SigmaFactorOrientation

double	m_SigmaFactorDescriptor

ExpandFilterPointerType	m_ExpandFilter

ShrinkFilterPointerType	m_ShrinkFilter

GaussianFilterPointerType	m_XGaussianFilter

GaussianFilterPointerType	m_YGaussianFilter

InputImagePointerType	m_LastGaussian

ImageListPointerType	m_DoGList

ImageListPointerType	m_MagnitudeList

ImageListPointerType	m_OrientationList

SubtractFilterPointerType	m_SubtractFilter

GradientFilterPointerType	m_GradientFilter

MagnitudeFilterPointerType	m_MagnitudeFilter

OrientationFilterPointerType	m_OrientationFilter

OutputPointIdentifierType	m_ValidatedKeyPoints

unsigned int	m_DifferentSamplePoints

unsigned int	m_DiscardedKeyPoints

unsigned int	m_ChangeSamplePointsMax

std::vector< double >	m_HistogramGaussianWeights

OffsetType	m_Offsets [8]

virtual void	SetOctavesNumber (unsigned int _arg)

virtual unsigned int	GetOctavesNumber ()

virtual void	SetScalesNumber (unsigned int _arg)

virtual unsigned int	GetScalesNumber ()

virtual void	SetExpandFactors (unsigned int _arg)

virtual unsigned int	GetExpandFactors ()

virtual void	SetShrinkFactors (unsigned int _arg)

virtual unsigned int	GetShrinkFactors ()

virtual void	SetSigma0 (double _arg)

virtual double	GetSigma0 ()

virtual void	SetDoGThreshold (double _arg)

virtual double	GetDoGThreshold ()

virtual void	SetEdgeThreshold (double _arg)

virtual double	GetEdgeThreshold ()

virtual void	SetSigmaFactorOrientation (double _arg)

virtual double	GetSigmaFactorOrientation ()

virtual void	SetSigmaFactorDescriptor (double _arg)

virtual double	GetSigmaFactorDescriptor ()

void	GenerateData () override

	ImageToSIFTKeyPointSetFilter ()

	~ImageToSIFTKeyPointSetFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	InitializeInputImage ()

void	ComputeDifferenceOfGaussian (InputImagePointerType input)

void	DetectKeyPoint (const unsigned int octave)

bool	IsLocalExtremum (const NeighborhoodIteratorType &currentScale, const NeighborhoodIteratorType &previousScale, const NeighborhoodIteratorType &nextScale) const

bool	RefineLocationKeyPoint (const NeighborhoodIteratorType &currentScale, const NeighborhoodIteratorType &previousScale, const NeighborhoodIteratorType &nextScale, VectorPointType &solution)

std::vector< PixelType >	ComputeKeyPointOrientations (const NeighborhoodIteratorType &currentScale, const unsigned int scale, const PixelType translation)

std::vector< PixelType >	ComputeKeyPointDescriptor (const NeighborhoodIteratorType &currentScale, const unsigned int scale, const PixelType &orientation)

	ImageToSIFTKeyPointSetFilter (const Self &)=delete

void	operator= (const Self &)=delete

Additional Inherited Members
Static Public Attributes inherited from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
static const unsigned int	InputImageDimension = TInputImage::ImageDimension

Protected Types inherited from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
typedef std::vector< typename OutputPointSetType::PointsContainer::Pointer >	OutputPointsContainerForThreadType

typedef std::vector< typename OutputPointSetType::PointDataContainer::Pointer >	OutputPointDataContainerForThreadType

typedef RAMDrivenAdaptativeStreamingManager< InputImageType >	StreamingManagerType

typedef StreamingManagerType::Pointer	StreamingManagerPointer

Protected Member Functions inherited from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
	ImageToPointSetFilter ()

	~ImageToPointSetFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	GenerateData (void) override

virtual void	BeforeThreadedGenerateData ()

virtual void	AfterThreadedGenerateData ()

virtual int	SplitRequestedRegion (int i, int num, InputImageRegionType &splitRegion)

virtual void	ThreadedGenerateData (const InputImageRegionType &inputRegionForThread, itk::ThreadIdType threadId)

Protected Member Functions inherited from otb::PointSetSource< TOutputPointSet >
	PointSetSource ()

	~PointSetSource () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	GenerateInputRequestedRegion () override

Static Protected Member Functions inherited from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
static ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)

Protected Attributes inherited from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >
OutputPointsContainerForThreadType	m_PointsContainerPerThread

OutputPointDataContainerForThreadType	m_PointDataContainerPerThread

StreamingManagerPointer	m_StreamingManager

Detailed Description

template<class TInputImage, class TOutputPointSet>
class otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >

This class extracts key points from an input image, trough a pyramidal decomposition.

This class implements the SIFT key point detector proposed by David G. Lowe in proceedings of International Conference on Computer Vision, Corfu, september 1999.

Input image is downsample by factor 2
Pyramid of gaussians is obtained by filtering input image with variable length sigma, each separated by a constant k = 2^(1/S) where S is the number of scales
Difference of gaussian are compute with the difference of two adjacent gaussian image results
Detector is laucnched on each difference of gaussian to find key point
A key point is a local minimum or a local maximum on 3*3 neighborhood
An interpolated location of the maximum key point is compute with fitting a 3D quadratic function
DoG low contrast are discarded (DoG < 3%)
High edge responses key point are discarded

Selected key points are stored in a itk::PointSet structure. Data points contains a list of (magnitude, main orientation) for each level of the pyramidal decomposition.

Orientation is expressed in degree in the range [0, 360] with a precision of 10 degrees.

Examples: Patented/SIFTExample.cxx.

Definition at line 116 of file otbImageToSIFTKeyPointSetFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImage , class TOutputPointSet >

typedef itk::SmartPointer<const Self> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ConstPointer

Definition at line 123 of file otbImageToSIFTKeyPointSetFilter.h.

◆ ExpandFilterPointerType

template<class TInputImage , class TOutputPointSet >

typedef ExpandFilterType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ExpandFilterPointerType

Internal typedefs

Definition at line 195 of file otbImageToSIFTKeyPointSetFilter.h.

◆ ExpandFilterType

template<class TInputImage , class TOutputPointSet >

typedef itk::ExpandImageFilter<TInputImage, TInputImage> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ExpandFilterType

Internal typedefs

Definition at line 190 of file otbImageToSIFTKeyPointSetFilter.h.

◆ GaussianFilterPointerType

template<class TInputImage , class TOutputPointSet >

typedef GaussianFilterType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GaussianFilterPointerType

Internal typedefs

Definition at line 201 of file otbImageToSIFTKeyPointSetFilter.h.

◆ GaussianFilterType

template<class TInputImage , class TOutputPointSet >

typedef itk::RecursiveGaussianImageFilter<InputImageType, InputImageType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GaussianFilterType

Internal typedefs

Definition at line 200 of file otbImageToSIFTKeyPointSetFilter.h.

◆ GradientFilterPointerType

template<class TInputImage , class TOutputPointSet >

typedef GradientFilterType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GradientFilterPointerType

Internal typedefs

Definition at line 219 of file otbImageToSIFTKeyPointSetFilter.h.

◆ GradientFilterType

template<class TInputImage , class TOutputPointSet >

typedef itk::GradientImageFilter<InputImageType, PixelType, PixelType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GradientFilterType

Internal typedefs

Definition at line 218 of file otbImageToSIFTKeyPointSetFilter.h.

◆ GradientOutputImageType

template<class TInputImage , class TOutputPointSet >

typedef GradientFilterType::OutputImageType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GradientOutputImageType

Internal typedefs

Definition at line 220 of file otbImageToSIFTKeyPointSetFilter.h.

◆ ImageListPointerType

template<class TInputImage , class TOutputPointSet >

typedef ImageListType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ImageListPointerType

Internal typedefs

Definition at line 204 of file otbImageToSIFTKeyPointSetFilter.h.

◆ ImageListType

template<class TInputImage , class TOutputPointSet >

typedef otb::ImageList<InputImageType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ImageListType

Internal typedefs

Definition at line 203 of file otbImageToSIFTKeyPointSetFilter.h.

◆ InputImagePointerType

template<class TInputImage , class TOutputPointSet >

typedef TInputImage::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::InputImagePointerType

Definition at line 133 of file otbImageToSIFTKeyPointSetFilter.h.

◆ InputImageType

template<class TInputImage , class TOutputPointSet >

typedef TInputImage otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::InputImageType

Template parameters typedefs

Definition at line 129 of file otbImageToSIFTKeyPointSetFilter.h.

◆ MagnitudeFilterPointerType

template<class TInputImage , class TOutputPointSet >

typedef MagnitudeFilterType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::MagnitudeFilterPointerType

Internal typedefs

Definition at line 225 of file otbImageToSIFTKeyPointSetFilter.h.

◆ MagnitudeFilterType

template<class TInputImage , class TOutputPointSet >

typedef itk::UnaryFunctorImageFilter<GradientOutputImageType, InputImageType, Functor::MagnitudeFunctor<typename GradientOutputImageType::PixelType, typename InputImageType::PixelType> > otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::MagnitudeFilterType

Internal typedefs

Definition at line 224 of file otbImageToSIFTKeyPointSetFilter.h.

◆ MinimumMaximumCalculatorPointerType

template<class TInputImage , class TOutputPointSet >

typedef MinimumMaximumCalculatorType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::MinimumMaximumCalculatorPointerType

Internal typedefs

Definition at line 216 of file otbImageToSIFTKeyPointSetFilter.h.

◆ MinimumMaximumCalculatorType

template<class TInputImage , class TOutputPointSet >

typedef itk::MinimumMaximumImageCalculator<InputImageType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::MinimumMaximumCalculatorType

Internal typedefs

Definition at line 215 of file otbImageToSIFTKeyPointSetFilter.h.

◆ NeighborhoodIteratorType

template<class TInputImage , class TOutputPointSet >

typedef itk::ConstNeighborhoodIterator<InputImageType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::NeighborhoodIteratorType

Internal typedefs

Definition at line 209 of file otbImageToSIFTKeyPointSetFilter.h.

◆ NeighborhoodType

template<class TInputImage , class TOutputPointSet >

typedef NeighborhoodIteratorType::NeighborhoodType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::NeighborhoodType

Internal typedefs

Definition at line 210 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OffsetType

template<class TInputImage , class TOutputPointSet >

typedef NeighborhoodType::OffsetType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OffsetType

Internal typedefs

Definition at line 211 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OrientationFilterPointerType

template<class TInputImage , class TOutputPointSet >

typedef OrientationFilterType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OrientationFilterPointerType

Internal typedefs

Definition at line 230 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OrientationFilterType

template<class TInputImage , class TOutputPointSet >

typedef itk::UnaryFunctorImageFilter<GradientOutputImageType, InputImageType, Functor::OrientationFunctor<typename GradientOutputImageType::PixelType, typename InputImageType::PixelType> > otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OrientationFilterType

Internal typedefs

Definition at line 229 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OutputPixelType

template<class TInputImage , class TOutputPointSet >

typedef TOutputPointSet::PixelType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OutputPixelType

Definition at line 138 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OutputPointIdentifierType

template<class TInputImage , class TOutputPointSet >

typedef TOutputPointSet::PointIdentifier otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OutputPointIdentifierType

Definition at line 140 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OutputPointSetPointerType

template<class TInputImage , class TOutputPointSet >

typedef TOutputPointSet::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OutputPointSetPointerType

Definition at line 137 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OutputPointSetType

template<class TInputImage , class TOutputPointSet >

typedef TOutputPointSet otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OutputPointSetType

Definition at line 136 of file otbImageToSIFTKeyPointSetFilter.h.

◆ OutputPointType

template<class TInputImage , class TOutputPointSet >

typedef TOutputPointSet::PointType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::OutputPointType

Definition at line 139 of file otbImageToSIFTKeyPointSetFilter.h.

◆ PixelType

template<class TInputImage , class TOutputPointSet >

typedef TInputImage::PixelType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::PixelType

Definition at line 134 of file otbImageToSIFTKeyPointSetFilter.h.

◆ Pointer

template<class TInputImage , class TOutputPointSet >

typedef itk::SmartPointer<Self> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::Pointer

Definition at line 122 of file otbImageToSIFTKeyPointSetFilter.h.

◆ RegionIteratorType

template<class TInputImage , class TOutputPointSet >

typedef itk::ImageRegionConstIterator<InputImageType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::RegionIteratorType

Internal typedefs

Definition at line 213 of file otbImageToSIFTKeyPointSetFilter.h.

◆ Self

template<class TInputImage , class TOutputPointSet >

typedef ImageToSIFTKeyPointSetFilter otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::Self

Standard typedefs

Definition at line 120 of file otbImageToSIFTKeyPointSetFilter.h.

◆ ShrinkFilterPointerType

template<class TInputImage , class TOutputPointSet >

typedef ShrinkFilterType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ShrinkFilterPointerType

Internal typedefs

Definition at line 198 of file otbImageToSIFTKeyPointSetFilter.h.

◆ ShrinkFilterType

template<class TInputImage , class TOutputPointSet >

typedef itk::ShrinkImageFilter<InputImageType, InputImageType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ShrinkFilterType

Internal typedefs

Definition at line 197 of file otbImageToSIFTKeyPointSetFilter.h.

◆ SubtractFilterPointerType

template<class TInputImage , class TOutputPointSet >

typedef SubtractFilterType::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SubtractFilterPointerType

Internal typedefs

Definition at line 207 of file otbImageToSIFTKeyPointSetFilter.h.

◆ SubtractFilterType

template<class TInputImage , class TOutputPointSet >

typedef itk::SubtractImageFilter<InputImageType, InputImageType, InputImageType> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SubtractFilterType

Internal typedefs

Definition at line 206 of file otbImageToSIFTKeyPointSetFilter.h.

◆ Superclass

template<class TInputImage , class TOutputPointSet >

typedef ImageToPointSetFilter<TInputImage, TOutputPointSet> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::Superclass

Definition at line 121 of file otbImageToSIFTKeyPointSetFilter.h.

◆ VectorPointType

template<class TInputImage , class TOutputPointSet >

typedef itk::Vector<PixelType, 3> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::VectorPointType

Definition at line 142 of file otbImageToSIFTKeyPointSetFilter.h.

Constructor & Destructor Documentation

◆ ImageToSIFTKeyPointSetFilter() [1/2]

template<class TInputImage , class TOutputPointSet >

otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ImageToSIFTKeyPointSetFilter

protected

Constructor

Definition at line 36 of file otbImageToSIFTKeyPointSetFilter.hxx.

◆ ~ImageToSIFTKeyPointSetFilter()

template<class TInputImage , class TOutputPointSet >

otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::~ImageToSIFTKeyPointSetFilter ( )

inlineoverrideprotected

Destructor

Definition at line 240 of file otbImageToSIFTKeyPointSetFilter.h.

◆ ImageToSIFTKeyPointSetFilter() [2/2]

template<class TInputImage , class TOutputPointSet >

otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ImageToSIFTKeyPointSetFilter ( const Self & )

privatedelete

Internal typedefs

Member Function Documentation

◆ ComputeDifferenceOfGaussian()

template<class TInputImage , class TOutputPointSet >

void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ComputeDifferenceOfGaussian ( InputImagePointerType input )

protected

Compute differenec of gaussian

Parameters

input current input in process

Compute the difference of gaussian

Definition at line 171 of file otbImageToSIFTKeyPointSetFilter.hxx.

References otbGenericMsgDebugMacro.

◆ ComputeKeyPointDescriptor()

template<class TInputImage , class TOutputPointSet >

std::vector< typename ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::PixelType > otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ComputeKeyPointDescriptor	(	const NeighborhoodIteratorType &	currentScale,
		const unsigned int	scale,
		const PixelType &	orientation
	)

protected

Compute local image descriptor

Parameters

currentScale	neighborhood iterator
scale
orientation

Returns: histogram descriptor

Compute key point descriptor

Definition at line 664 of file otbImageToSIFTKeyPointSetFilter.hxx.

References otb::CONST_2PI, and otb::CONST_PI_180.

◆ ComputeKeyPointOrientations()

template<class TInputImage , class TOutputPointSet >

std::vector< typename ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::PixelType > otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::ComputeKeyPointOrientations	(	const NeighborhoodIteratorType &	currentScale,
		const unsigned int	scale,
		const PixelType	translation
	)

protected

Assign key point orientation

Parameters

currentScale	neighborhood iterator
scale	current scale
translation	refine offset pixel location

Returns: orientation key point orientation

Compute key point orientation

Definition at line 485 of file otbImageToSIFTKeyPointSetFilter.hxx.

References otb::CONST_2PI.

◆ CreateAnother()

template<class TInputImage , class TOutputPointSet >

virtual::itk::LightObject::Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::CreateAnother ( void ) const

◆ DetectKeyPoint()

template<class TInputImage , class TOutputPointSet >

void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::DetectKeyPoint ( const unsigned int octave )

protected

Localize key point

Definition at line 242 of file otbImageToSIFTKeyPointSetFilter.hxx.

References otbGenericMsgDebugMacro, and otbUnusedMacro.

◆ GenerateData()

template<class TInputImage , class TOutputPointSet >

void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GenerateData

overrideprotected

Actually process the input

Definition at line 92 of file otbImageToSIFTKeyPointSetFilter.hxx.

References otbGenericMsgDebugMacro.

◆ GetDoGThreshold()

template<class TInputImage , class TOutputPointSet >

virtual double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetDoGThreshold ( )

virtual

Internal typedefs

◆ GetEdgeThreshold()

template<class TInputImage , class TOutputPointSet >

virtual double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetEdgeThreshold ( )

virtual

Internal typedefs

◆ GetExpandFactors()

template<class TInputImage , class TOutputPointSet >

virtual unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetExpandFactors ( )

virtual

Internal typedefs

◆ GetNameOfClass()

template<class TInputImage , class TOutputPointSet >

virtual const char* otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetNameOfClass ( ) const

virtual

Type macro

Reimplemented from otb::ImageToPointSetFilter< TInputImage, TOutputPointSet >.

◆ GetOctavesNumber()

template<class TInputImage , class TOutputPointSet >

virtual unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetOctavesNumber ( )

virtual

Internal typedefs

◆ GetScalesNumber()

template<class TInputImage , class TOutputPointSet >

virtual unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetScalesNumber ( )

virtual

Internal typedefs

◆ GetShrinkFactors()

template<class TInputImage , class TOutputPointSet >

virtual unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetShrinkFactors ( )

virtual

Internal typedefs

◆ GetSigma0()

template<class TInputImage , class TOutputPointSet >

virtual double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetSigma0 ( )

virtual

Internal typedefs

◆ GetSigmaFactorDescriptor()

template<class TInputImage , class TOutputPointSet >

virtual double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetSigmaFactorDescriptor ( )

virtual

Internal typedefs

◆ GetSigmaFactorOrientation()

template<class TInputImage , class TOutputPointSet >

virtual double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::GetSigmaFactorOrientation ( )

virtual

Internal typedefs

◆ InitializeInputImage()

template<class TInputImage , class TOutputPointSet >

void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::InitializeInputImage

protected

Initialize input image

Initialize the input image

Definition at line 150 of file otbImageToSIFTKeyPointSetFilter.hxx.

◆ IsLocalExtremum()

template<class TInputImage , class TOutputPointSet >

bool otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::IsLocalExtremum	(	const NeighborhoodIteratorType &	currentScale,
		const NeighborhoodIteratorType &	previousScale,
		const NeighborhoodIteratorType &	nextScale
	)		const

protected

Check local extremum for 26 neighbors (current and adjacents scales)

Parameters

currentScale
previousScale
nextScale

Returns: true if the pixel is extremum

Check local extremum for 26 neighbors

Definition at line 374 of file otbImageToSIFTKeyPointSetFilter.hxx.

◆ New()

template<class TInputImage , class TOutputPointSet >

static Pointer otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::New ( )

static

Creation through object factory macro

◆ operator=()

template<class TInputImage , class TOutputPointSet >

void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::operator= ( const Self & )

privatedelete

Internal typedefs

◆ PrintSelf()

template<class TInputImage , class TOutputPointSet >

void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

PrintSelf method

PrintSelf Method

Definition at line 807 of file otbImageToSIFTKeyPointSetFilter.hxx.

◆ RefineLocationKeyPoint()

template<class TInputImage , class TOutputPointSet >

bool otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::RefineLocationKeyPoint	(	const NeighborhoodIteratorType &	currentScale,
		const NeighborhoodIteratorType &	previousScale,
		const NeighborhoodIteratorType &	nextScale,
		VectorPointType &	solution
	)

protected

Refine location key point

Discard keypoints with low contrats DoG < DoGThreshold
Discard keypoints that have a ratio between the principles curvature greater than EdgeTrhesold (=10)

Parameters

currentScale	iterator
previousScale	iterator
nextScale	iterator
solution

Returns: true if key point is accepted, false otherwise

Refine location key point

Definition at line 414 of file otbImageToSIFTKeyPointSetFilter.hxx.

◆ SetDoGThreshold()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetDoGThreshold ( double _arg )

virtual

Set/Get the Difference of gaussian threshold eliminating low contrast key point

◆ SetEdgeThreshold()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetEdgeThreshold ( double _arg )

virtual

Set/Get Edgethreshold Eliminating edge responses

◆ SetExpandFactors()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetExpandFactors ( unsigned int _arg )

virtual

Set/Get the expand factors

◆ SetOctavesNumber()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetOctavesNumber ( unsigned int _arg )

virtual

Set/Get the number of octaves

◆ SetScalesNumber()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetScalesNumber ( unsigned int _arg )

virtual

Set/Get the number of scales

◆ SetShrinkFactors()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetShrinkFactors ( unsigned int _arg )

virtual

Set/Get the shrink factors

◆ SetSigma0()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetSigma0 ( double _arg )

virtual

Set/Get the sigma 0

◆ SetSigmaFactorDescriptor()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetSigmaFactorDescriptor ( double _arg )

virtual

Set/Get Gauss sigma factor descriptor

◆ SetSigmaFactorOrientation()

template<class TInputImage , class TOutputPointSet >

virtual void otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::SetSigmaFactorOrientation ( double _arg )

virtual

Set/Get Gauss sigma factor orientation

Member Data Documentation

◆ m_ChangeSamplePointsMax

template<class TInputImage , class TOutputPointSet >

unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_ChangeSamplePointsMax

private

Number of change sample max

Definition at line 390 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_DifferentSamplePoints

template<class TInputImage , class TOutputPointSet >

unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_DifferentSamplePoints

private

Number of key point which offset is larger than 0.5 per octave

Definition at line 384 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_DiscardedKeyPoints

template<class TInputImage , class TOutputPointSet >

unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_DiscardedKeyPoints

private

Number of discarded key points

Definition at line 387 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_DoGList

template<class TInputImage , class TOutputPointSet >

ImageListPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_DoGList

private

Difference of gaussian list

Definition at line 360 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_DoGThreshold

template<class TInputImage , class TOutputPointSet >

double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_DoGThreshold

private

Threshold DoG

Definition at line 323 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_EdgeThreshold

template<class TInputImage , class TOutputPointSet >

double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_EdgeThreshold

private

Edge Threshold

Definition at line 326 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_ExpandFactors

template<class TInputImage , class TOutputPointSet >

unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_ExpandFactors

private

Expand factors

Definition at line 317 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_ExpandFilter

template<class TInputImage , class TOutputPointSet >

ExpandFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_ExpandFilter

private

Expand filter

Definition at line 347 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_GradientFilter

template<class TInputImage , class TOutputPointSet >

GradientFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_GradientFilter

private

Gradient filter

Definition at line 372 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_GradientMagnitudeThreshold

template<class TInputImage , class TOutputPointSet >

PixelType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_GradientMagnitudeThreshold

private

Histogram sift keys descriptors gradient magnitude threshold

Definition at line 332 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_HistogramGaussianWeights

template<class TInputImage , class TOutputPointSet >

std::vector<double> otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_HistogramGaussianWeights

private

Gaussian sigma for histogram smoothing

Definition at line 393 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_LastGaussian

template<class TInputImage , class TOutputPointSet >

InputImagePointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_LastGaussian

private

Gaussian image pointer

Definition at line 357 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_MagnitudeFilter

template<class TInputImage , class TOutputPointSet >

MagnitudeFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_MagnitudeFilter

private

Magnitude filter

Definition at line 375 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_MagnitudeList

template<class TInputImage , class TOutputPointSet >

ImageListPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_MagnitudeList

private

Magnitude image list

Definition at line 363 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_OctavesNumber

template<class TInputImage , class TOutputPointSet >

unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_OctavesNumber

private

Number of octaves

Definition at line 311 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_Offsets

template<class TInputImage , class TOutputPointSet >

OffsetType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_Offsets[8]

private

Offsets vector, convenience data

Definition at line 396 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_OrientationFilter

template<class TInputImage , class TOutputPointSet >

OrientationFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_OrientationFilter

private

Orientation filter

Definition at line 378 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_OrientationList

template<class TInputImage , class TOutputPointSet >

ImageListPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_OrientationList

private

Orientation image list

Definition at line 366 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_RatioEdgeThreshold

template<class TInputImage , class TOutputPointSet >

double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_RatioEdgeThreshold

private

Ratio threshold compute

Definition at line 329 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_ScalesNumber

template<class TInputImage , class TOutputPointSet >

unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_ScalesNumber

private

Number of scale for each octave

Definition at line 314 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_ShrinkFactors

template<class TInputImage , class TOutputPointSet >

unsigned int otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_ShrinkFactors

private

Shrink factors

Definition at line 320 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_ShrinkFilter

template<class TInputImage , class TOutputPointSet >

ShrinkFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_ShrinkFilter

private

Shrink filter

Definition at line 350 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_Sigma0

template<class TInputImage , class TOutputPointSet >

GaussianFilterType::ScalarRealType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_Sigma0

private

Sigma 0

Definition at line 335 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_SigmaFactorDescriptor

template<class TInputImage , class TOutputPointSet >

double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_SigmaFactorDescriptor

private

Descriptor size

Definition at line 344 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_SigmaFactorOrientation

template<class TInputImage , class TOutputPointSet >

double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_SigmaFactorOrientation

private

Gauss factor length for key point orientation

Definition at line 341 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_Sigmak

template<class TInputImage , class TOutputPointSet >

double otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_Sigmak

private

Sigma k

Definition at line 338 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_SubtractFilter

template<class TInputImage , class TOutputPointSet >

SubtractFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_SubtractFilter

private

Subtract filter

Definition at line 369 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_ValidatedKeyPoints

template<class TInputImage , class TOutputPointSet >

OutputPointIdentifierType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_ValidatedKeyPoints

private

Number of key points

Definition at line 381 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_XGaussianFilter

template<class TInputImage , class TOutputPointSet >

GaussianFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_XGaussianFilter

private

Gaussian filter

Definition at line 353 of file otbImageToSIFTKeyPointSetFilter.h.

◆ m_YGaussianFilter

template<class TInputImage , class TOutputPointSet >

GaussianFilterPointerType otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >::m_YGaussianFilter

private

Internal typedefs

Definition at line 354 of file otbImageToSIFTKeyPointSetFilter.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

template<class TInputImage, class TOutputPointSet> class otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >

Member Typedef Documentation

◆ ConstPointer

◆ ExpandFilterPointerType

◆ ExpandFilterType

◆ GaussianFilterPointerType

◆ GaussianFilterType

◆ GradientFilterPointerType

◆ GradientFilterType

◆ GradientOutputImageType

◆ ImageListPointerType

◆ ImageListType

◆ InputImagePointerType

◆ InputImageType

◆ MagnitudeFilterPointerType

◆ MagnitudeFilterType

◆ MinimumMaximumCalculatorPointerType

◆ MinimumMaximumCalculatorType

◆ NeighborhoodIteratorType

◆ NeighborhoodType

◆ OffsetType

◆ OrientationFilterPointerType

◆ OrientationFilterType

◆ OutputPixelType

◆ OutputPointIdentifierType

◆ OutputPointSetPointerType

◆ OutputPointSetType

◆ OutputPointType

◆ PixelType

◆ Pointer

◆ RegionIteratorType

◆ Self

◆ ShrinkFilterPointerType

◆ ShrinkFilterType

◆ SubtractFilterPointerType

◆ SubtractFilterType

◆ Superclass

◆ VectorPointType

Constructor & Destructor Documentation

◆ ImageToSIFTKeyPointSetFilter() [1/2]

◆ ~ImageToSIFTKeyPointSetFilter()

◆ ImageToSIFTKeyPointSetFilter() [2/2]

Member Function Documentation

◆ ComputeDifferenceOfGaussian()

◆ ComputeKeyPointDescriptor()

◆ ComputeKeyPointOrientations()

◆ CreateAnother()

◆ DetectKeyPoint()

◆ GenerateData()

◆ GetDoGThreshold()

◆ GetEdgeThreshold()

◆ GetExpandFactors()

◆ GetNameOfClass()

◆ GetOctavesNumber()

◆ GetScalesNumber()

◆ GetShrinkFactors()

◆ GetSigma0()

◆ GetSigmaFactorDescriptor()

◆ GetSigmaFactorOrientation()

◆ InitializeInputImage()

◆ IsLocalExtremum()

◆ New()

◆ operator=()

◆ PrintSelf()

◆ RefineLocationKeyPoint()

◆ SetDoGThreshold()

◆ SetEdgeThreshold()

◆ SetExpandFactors()

◆ SetOctavesNumber()

◆ SetScalesNumber()

◆ SetShrinkFactors()

◆ SetSigma0()

◆ SetSigmaFactorDescriptor()

◆ SetSigmaFactorOrientation()

Member Data Documentation

template<class TInputImage, class TOutputPointSet>
class otb::ImageToSIFTKeyPointSetFilter< TInputImage, TOutputPointSet >
