#include <otbGreyLevelCooccurrenceIndexedList.h>

Inheritance diagram for otb::GreyLevelCooccurrenceIndexedList< TPixel >:

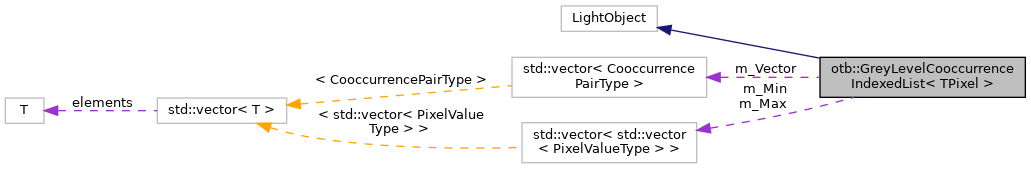

Collaboration diagram for otb::GreyLevelCooccurrenceIndexedList< TPixel >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::pair< IndexType, FrequencyType >	CooccurrencePairType

typedef InstanceIdentifier	FrequencyType

typedef itk::Index< PixelPairSize >	IndexType

typedef itk::IndexValueType	IndexValueType

typedef itk::IdentifierType	InstanceIdentifier

typedef itk::Array< int >	LookupArrayType

typedef itk::FixedArray< PixelValueType, PixelPairSize >	PixelPairType

typedef TPixel	PixelType

typedef itk::NumericTraits< PixelType >::RealType	PixelValueType

typedef itk::SmartPointer< Self >	Pointer

typedef itk::NumericTraits< FrequencyType >::RealType	RelativeFrequencyType

typedef GreyLevelCooccurrenceIndexedList	Self

typedef itk::Size< PixelPairSize >	SizeType

typedef itk::LightObject	Superclass

typedef itk::NumericTraits< FrequencyType >::AccumulateType	TotalFrequencyType

typedef std::vector< CooccurrencePairType >	VectorType

Public Member Functions
void	AddPixelPair (const PixelValueType &pixelvalue1, const PixelValueType &pixelvalue2)

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

RelativeFrequencyType	GetFrequency (IndexValueType i, IndexValueType j)

RelativeFrequencyType	GetFrequency (IndexValueType i, IndexValueType j, const VectorType &vect) const

virtual const char *	GetNameOfClass () const

virtual bool	GetSymmetry ()

virtual TotalFrequencyType	GetTotalFrequency ()

VectorType	GetVector ()

void	Initialize (const unsigned int nbins, const PixelValueType min, const PixelValueType max, const bool symmetry=true)

Static Public Member Functions
static Pointer	New ()

Public Attributes
std::vector< std::vector< PixelValueType > >	m_Max

std::vector< std::vector< PixelValueType > >	m_Min

Static Public Attributes
static const unsigned int	PixelPairSize = 2

Protected Member Functions
void	AddPairToVector (IndexType index)

bool	GetIndex (const PixelPairType &pixelPair, IndexType &index) const

	GreyLevelCooccurrenceIndexedList ()

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	SetBinMax (const unsigned int dimension, const InstanceIdentifier nbin, PixelValueType max)

void	SetBinMin (const unsigned int dimension, const InstanceIdentifier nbin, PixelValueType min)

	~GreyLevelCooccurrenceIndexedList () override=default

Private Member Functions
	GreyLevelCooccurrenceIndexedList (const Self &)=delete

void	operator= (const Self &)=delete

Private Attributes
bool	m_ClipBinsAtEnds

PixelValueType	m_InputImageMaximum

PixelValueType	m_InputImageMinimum

LookupArrayType	m_LookupArray

SizeType	m_Size

bool	m_Symmetry

TotalFrequencyType	m_TotalFrequency

VectorType	m_Vector

Detailed Description

template<class TPixel>
class otb::GreyLevelCooccurrenceIndexedList< TPixel >

This class holds a VectorType of CooccurrencePairType with each pair is a combination of pixel index and frequency.

GreyLevelCooccurrenceIndexedList instance is created for every neighborhood iteration over the given input image. This class keep an internal itk::Array as a lookup array with size as [nbbins x nbbins]. The lookup array stores position CooccurrencePairType in the VectorType. It ensures us that all elements in Vector are unique in terms of the index value in the pair. For any given pixel index, -1 value indicates zero existence of the index in the VectorType. This avoid searching all elements in VectorType for each pixel index added during neighborhood iterator. It is also used to decide whether to update the frequency of pair or to insert a new element in the vector.

Print references: David A. Clausi and Yongping Zhao. 2002. Rapid extraction of image texture by co-occurrence using a hybrid data structure. Comput. Geosci. 28, 6 (July 2002), 763-774. DOI=10.1016/S0098-3004(01)00108-X http://dx.doi.org/10.1016/S0098-3004(01)00108-X

de O.Bastos, L.; Liatsis, P.; Conci, A., Automatic texture segmentation based on k-means clustering and efficient calculation of co-occurrence features. Systems, Signals and Image Processing, 2008. IWSSIP 2008. 15th International Conference on , vol., no., pp.141,144, 25-28 June 2008 doi: 10.1109/IWSSIP.2008.4604387

Definition at line 66 of file otbGreyLevelCooccurrenceIndexedList.h.

Member Typedef Documentation

◆ ConstPointer

template<class TPixel >

typedef itk::SmartPointer<const Self> otb::GreyLevelCooccurrenceIndexedList< TPixel >::ConstPointer

Definition at line 73 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ CooccurrencePairType

template<class TPixel >

typedef std::pair<IndexType, FrequencyType> otb::GreyLevelCooccurrenceIndexedList< TPixel >::CooccurrencePairType

Definition at line 102 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ FrequencyType

template<class TPixel >

typedef InstanceIdentifier otb::GreyLevelCooccurrenceIndexedList< TPixel >::FrequencyType

Definition at line 90 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ IndexType

template<class TPixel >

typedef itk::Index<PixelPairSize> otb::GreyLevelCooccurrenceIndexedList< TPixel >::IndexType

Definition at line 85 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ IndexValueType

template<class TPixel >

typedef itk::IndexValueType otb::GreyLevelCooccurrenceIndexedList< TPixel >::IndexValueType

Definition at line 87 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ InstanceIdentifier

template<class TPixel >

typedef itk::IdentifierType otb::GreyLevelCooccurrenceIndexedList< TPixel >::InstanceIdentifier

Definition at line 89 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ LookupArrayType

template<class TPixel >

typedef itk::Array<int> otb::GreyLevelCooccurrenceIndexedList< TPixel >::LookupArrayType

Lookup array used to store the index of the given pixel pair. Size of LookupArray is equal to the nbins * nbins. Values in the array represents 1D index of the IndexType

Definition at line 107 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ PixelPairType

template<class TPixel >

typedef itk::FixedArray<PixelValueType, PixelPairSize> otb::GreyLevelCooccurrenceIndexedList< TPixel >::PixelPairType

Definition at line 95 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ PixelType

template<class TPixel >

typedef TPixel otb::GreyLevelCooccurrenceIndexedList< TPixel >::PixelType

Definition at line 79 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ PixelValueType

template<class TPixel >

typedef itk::NumericTraits<PixelType>::RealType otb::GreyLevelCooccurrenceIndexedList< TPixel >::PixelValueType

Definition at line 94 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ Pointer

template<class TPixel >

typedef itk::SmartPointer<Self> otb::GreyLevelCooccurrenceIndexedList< TPixel >::Pointer

Definition at line 72 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ RelativeFrequencyType

template<class TPixel >

typedef itk::NumericTraits<FrequencyType>::RealType otb::GreyLevelCooccurrenceIndexedList< TPixel >::RelativeFrequencyType

Definition at line 91 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ Self

template<class TPixel >

typedef GreyLevelCooccurrenceIndexedList otb::GreyLevelCooccurrenceIndexedList< TPixel >::Self

Standard typedefs

Definition at line 70 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ SizeType

template<class TPixel >

typedef itk::Size<PixelPairSize> otb::GreyLevelCooccurrenceIndexedList< TPixel >::SizeType

Definition at line 86 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ Superclass

template<class TPixel >

typedef itk::LightObject otb::GreyLevelCooccurrenceIndexedList< TPixel >::Superclass

Definition at line 71 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ TotalFrequencyType

template<class TPixel >

typedef itk::NumericTraits<FrequencyType>::AccumulateType otb::GreyLevelCooccurrenceIndexedList< TPixel >::TotalFrequencyType

Definition at line 92 of file otbGreyLevelCooccurrenceIndexedList.h.

◆ VectorType

template<class TPixel >

typedef std::vector<CooccurrencePairType> otb::GreyLevelCooccurrenceIndexedList< TPixel >::VectorType

std::vector to hold CooccurrencePairType. Index of the array where the cooccurrence is stored is saved in the LookupArrayType.

Definition at line 111 of file otbGreyLevelCooccurrenceIndexedList.h.

Constructor & Destructor Documentation

◆ GreyLevelCooccurrenceIndexedList() [1/2]

template<class TPixel >

otb::GreyLevelCooccurrenceIndexedList< TPixel >::GreyLevelCooccurrenceIndexedList

protected

Definition at line 30 of file otbGreyLevelCooccurrenceIndexedList.hxx.

◆ ~GreyLevelCooccurrenceIndexedList()

template<class TPixel >

otb::GreyLevelCooccurrenceIndexedList< TPixel >::~GreyLevelCooccurrenceIndexedList ( )

overrideprotecteddefault

◆ GreyLevelCooccurrenceIndexedList() [2/2]

template<class TPixel >

otb::GreyLevelCooccurrenceIndexedList< TPixel >::GreyLevelCooccurrenceIndexedList ( const Self & )

privatedelete

Member Function Documentation

◆ AddPairToVector()

template<class TPixel >

void otb::GreyLevelCooccurrenceIndexedList< TPixel >::AddPairToVector ( IndexType index )

protected

create a cooccurrence pair with given index and frequency = 1 value. Next occurrence of same index is checked via m_LookupArray and the corresponding frequency value is incremented. If m_Symmetry is true the co-occurrence pair is added again with index values swapped

Definition at line 257 of file otbGreyLevelCooccurrenceIndexedList.hxx.

◆ AddPixelPair()

template<class TPixel >

void otb::GreyLevelCooccurrenceIndexedList< TPixel >::AddPixelPair	(	const PixelValueType &	pixelvalue1,
		const PixelValueType &	pixelvalue2
	)

Definition at line 185 of file otbGreyLevelCooccurrenceIndexedList.hxx.

◆ CreateAnother()

template<class TPixel >

virtual::itk::LightObject::Pointer otb::GreyLevelCooccurrenceIndexedList< TPixel >::CreateAnother ( void ) const

◆ GetFrequency() [1/2]

template<class TPixel >

GreyLevelCooccurrenceIndexedList< TPixel >::RelativeFrequencyType otb::GreyLevelCooccurrenceIndexedList< TPixel >::GetFrequency	(	IndexValueType	i,
		IndexValueType	j
	)

Definition at line 221 of file otbGreyLevelCooccurrenceIndexedList.hxx.

◆ GetFrequency() [2/2]

template<class TPixel >

GreyLevelCooccurrenceIndexedList< TPixel >::RelativeFrequencyType otb::GreyLevelCooccurrenceIndexedList< TPixel >::GetFrequency	(	IndexValueType	i,
		IndexValueType	j,
		const VectorType &	vect
	)		const

Definition at line 237 of file otbGreyLevelCooccurrenceIndexedList.hxx.

◆ GetIndex()

template<class TPixel >

bool otb::GreyLevelCooccurrenceIndexedList< TPixel >::GetIndex	(	const PixelPairType &	pixelPair,
		IndexType &	index
	)		const

protected

Get index of the pixelPair combination and save the result in index

Definition at line 98 of file otbGreyLevelCooccurrenceIndexedList.hxx.

◆ GetNameOfClass()

template<class TPixel >

virtual const char* otb::GreyLevelCooccurrenceIndexedList< TPixel >::GetNameOfClass ( ) const

virtual

RTTI

◆ GetSymmetry()

template<class TPixel >

virtual bool otb::GreyLevelCooccurrenceIndexedList< TPixel >::GetSymmetry ( )

virtual

Get the total frequency of Co-occurrence pairs.

◆ GetTotalFrequency()

template<class TPixel >

virtual TotalFrequencyType otb::GreyLevelCooccurrenceIndexedList< TPixel >::GetTotalFrequency ( )

virtual

Get the total frequency of Co-occurrence pairs.

◆ GetVector()

template<class TPixel >

GreyLevelCooccurrenceIndexedList< TPixel >::VectorType otb::GreyLevelCooccurrenceIndexedList< TPixel >::GetVector

Get std::vector containing non-zero co-occurrence pairs

Definition at line 251 of file otbGreyLevelCooccurrenceIndexedList.hxx.

◆ Initialize()

template<class TPixel >

void otb::GreyLevelCooccurrenceIndexedList< TPixel >::Initialize	(	const unsigned int	nbins,
		const PixelValueType	min,
		const PixelValueType	max,
		const bool	symmetry = `true`
	)
