otb::DecisionTree< AttributeValueType, LabelType > Class Template Reference

#include <otbDecisionTree.h>

Inheritance diagram for otb::DecisionTree< AttributeValueType, LabelType >:

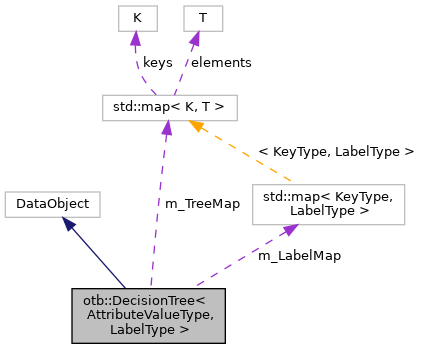

Collaboration diagram for otb::DecisionTree< AttributeValueType, LabelType >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
enum	DecisionTreeTestType {   MIN,   LT = MIN,   LE,   EQ,   GE,   GT,   MAX = GT }
typedef std::vector< AttributeValueType >	ExampleType
typedef std::pair< AttributeValueType, DecisionTreeTestType >	KeyType
typedef std::map< KeyType, LabelType >	LabelMapType
typedef itk::SmartPointer< Self >	Pointer
typedef DecisionTree	Self
typedef itk::DataObject	Superclass
typedef std::map< KeyType, Pointer >	TreeMapType

Public Member Functions
void	AddBranch (AttributeValueType attr, DecisionTreeTestType testType, LabelType label)
void	AddBranch (AttributeValueType attr, DecisionTreeTestType testType, Pointer branch)
void	AddBranch (AttributeValueType attr, LabelType label)
void	AddBranch (AttributeValueType attr, Pointer branch)
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
LabelType	Decide (const ExampleType &example)
virtual unsigned int	GetAttribute ()
virtual const char *	GetNameOfClass () const
virtual void	SetAttribute (unsigned int _arg)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	DecisionTree ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~DecisionTree () override

Private Member Functions
	DecisionTree (const Self &)=delete
void	operator= (const Self &)=delete

Private Attributes
unsigned int	m_Attribute
bool	m_IsFinal
LabelType	m_Label
LabelMapType	m_LabelMap
TreeMapType *	m_TreeMap

Detailed Description

template<class AttributeValueType, class LabelType>
class otb::DecisionTree< AttributeValueType, LabelType >

Models a decision tree.

A decision tree holds an attribute that is being tested and 2 maps (STL): one for subtrees and another for labels (for the case where there are no subtrees). These maps as keys a pair (STL) which holds the value of the attribute being tested as well as the type of test (LT, LE, EQ, GE, GT).

In order to build a tree, one uses the method AddBranch. There are 2 versions of this method: one for adding a subtree, and another for adding labels in the case of leaf nodes. Each of these versions has a syntactic sugar version for the case of EQ test.

This implementation does not use different classes for terminal and non terminal nodes for simplicity and follows the implementation suggested by P. Norvig in the python version of the AIMA code which is available at http://aima-python.googlecode.com/svn/trunk/learning.py

In the case of several terminal nodes being eligible, the first is returned.

See also

DecisionTreeClassifier

DecisionTreeEstimator

Definition at line 61 of file otbDecisionTree.h.

Member Typedef Documentation

ConstPointer

template<class AttributeValueType , class LabelType >

typedef itk::SmartPointer<const Self> otb::DecisionTree< AttributeValueType, LabelType >::ConstPointer

Definition at line 78 of file otbDecisionTree.h.

ExampleType

template<class AttributeValueType , class LabelType >

typedef std::vector<AttributeValueType> otb::DecisionTree< AttributeValueType, LabelType >::ExampleType

Definition at line 89 of file otbDecisionTree.h.

KeyType

template<class AttributeValueType , class LabelType >

typedef std::pair<AttributeValueType, DecisionTreeTestType> otb::DecisionTree< AttributeValueType, LabelType >::KeyType

Definition at line 84 of file otbDecisionTree.h.

LabelMapType

template<class AttributeValueType , class LabelType >

typedef std::map<KeyType, LabelType> otb::DecisionTree< AttributeValueType, LabelType >::LabelMapType

Definition at line 88 of file otbDecisionTree.h.

Pointer

template<class AttributeValueType , class LabelType >

typedef itk::SmartPointer<Self> otb::DecisionTree< AttributeValueType, LabelType >::Pointer

Definition at line 77 of file otbDecisionTree.h.

Self

template<class AttributeValueType , class LabelType >

typedef DecisionTree otb::DecisionTree< AttributeValueType, LabelType >::Self

Standard typedefs

Definition at line 75 of file otbDecisionTree.h.

Superclass

template<class AttributeValueType , class LabelType >

typedef itk::DataObject otb::DecisionTree< AttributeValueType, LabelType >::Superclass

Definition at line 76 of file otbDecisionTree.h.

TreeMapType

template<class AttributeValueType , class LabelType >

typedef std::map<KeyType, Pointer> otb::DecisionTree< AttributeValueType, LabelType >::TreeMapType

Definition at line 87 of file otbDecisionTree.h.

Member Enumeration Documentation

DecisionTreeTestType

template<class AttributeValueType , class LabelType >

enum otb::DecisionTree::DecisionTreeTestType

Enumerator
MIN
LT
LE
EQ
GE
GT
MAX

Definition at line 64 of file otbDecisionTree.h.

Constructor & Destructor Documentation

DecisionTree() [1/2]

template<class AttributeValueType , class LabelType >

otb::DecisionTree< AttributeValueType, LabelType >::DecisionTree

protected

Constructor

Definition at line 34 of file otbDecisionTree.hxx.

~DecisionTree()

template<class AttributeValueType , class LabelType >

otb::DecisionTree< AttributeValueType, LabelType >::~DecisionTree

overrideprotected

Destructor

Definition at line 45 of file otbDecisionTree.hxx.

DecisionTree() [2/2]

template<class AttributeValueType , class LabelType >

otb::DecisionTree< AttributeValueType, LabelType >::DecisionTree ( const Self &  )

privatedelete

Member Function Documentation

AddBranch() [1/4]

template<class AttributeValueType , class LabelType >

void otb::DecisionTree< AttributeValueType, LabelType >::AddBranch	(	AttributeValueType	attr,
		DecisionTreeTestType	testType,
		LabelType	label
	)

Add a leaf node on the tested attribute

Definition at line 67 of file otbDecisionTree.hxx.

AddBranch() [2/4]

template<class AttributeValueType , class LabelType >

void otb::DecisionTree< AttributeValueType, LabelType >::AddBranch	(	AttributeValueType	attr,
		DecisionTreeTestType	testType,
		Pointer	branch
	)

Add a subtree on the tested attribute

Definition at line 51 of file otbDecisionTree.hxx.

AddBranch() [3/4]

template<class AttributeValueType , class LabelType >

void otb::DecisionTree< AttributeValueType, LabelType >::AddBranch	(	AttributeValueType	attr,
		LabelType	label
	)

Add a leaf node on the tested attribute - syntactic sugar for the EQ case

Definition at line 75 of file otbDecisionTree.hxx.

AddBranch() [4/4]

template<class AttributeValueType , class LabelType >

void otb::DecisionTree< AttributeValueType, LabelType >::AddBranch	(	AttributeValueType	attr,
		Pointer	branch
	)

Add a subtree on the tested attribute - syntactic sugar for the EQ case

Definition at line 59 of file otbDecisionTree.hxx.

CreateAnother()

template<class AttributeValueType , class LabelType >

virtual::itk::LightObject::Pointer otb::DecisionTree< AttributeValueType, LabelType >::CreateAnother

(

void

)

const

Decide()

template<class AttributeValueType , class LabelType >

LabelType otb::DecisionTree< AttributeValueType, LabelType >::Decide

(

const ExampleType &

example

)

Definition at line 83 of file otbDecisionTree.hxx.

References otbMsgDevMacro.

GetAttribute()

template<class AttributeValueType , class LabelType >

virtual unsigned int otb::DecisionTree< AttributeValueType, LabelType >::GetAttribute ( )

virtual

GetNameOfClass()

template<class AttributeValueType , class LabelType >

virtual const char* otb::DecisionTree< AttributeValueType, LabelType >::GetNameOfClass ( ) const

virtual

Runtime information macro

New()

template<class AttributeValueType , class LabelType >

static Pointer otb::DecisionTree< AttributeValueType, LabelType >::New ( )

static

Creation through object factory macro

operator=()

template<class AttributeValueType , class LabelType >

void otb::DecisionTree< AttributeValueType, LabelType >::operator= ( const Self &  )

privatedelete

PrintSelf()

template<class AttributeValueType , class LabelType >

void otb::DecisionTree< AttributeValueType, LabelType >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

Output information redefinition PrintSelf method

PrintSelf method

Definition at line 209 of file otbDecisionTree.hxx.

SetAttribute()

template<class AttributeValueType , class LabelType >

virtual void otb::DecisionTree< AttributeValueType, LabelType >::SetAttribute ( unsigned int  _arg )

virtual

Member Data Documentation

m_Attribute

template<class AttributeValueType , class LabelType >

unsigned int otb::DecisionTree< AttributeValueType, LabelType >::m_Attribute

private

The attribute number (in the vector) being tested

Definition at line 133 of file otbDecisionTree.h.

m_IsFinal

template<class AttributeValueType , class LabelType >

bool otb::DecisionTree< AttributeValueType, LabelType >::m_IsFinal

private

Is the tree a final node?

Definition at line 136 of file otbDecisionTree.h.

m_Label

template<class AttributeValueType , class LabelType >

LabelType otb::DecisionTree< AttributeValueType, LabelType >::m_Label

private

Definition at line 138 of file otbDecisionTree.h.

m_LabelMap

template<class AttributeValueType , class LabelType >

LabelMapType otb::DecisionTree< AttributeValueType, LabelType >::m_LabelMap

private

Map holding the labels if final node

Definition at line 130 of file otbDecisionTree.h.

m_TreeMap

template<class AttributeValueType , class LabelType >

TreeMapType* otb::DecisionTree< AttributeValueType, LabelType >::m_TreeMap

private

Map holding the subtrees

Definition at line 127 of file otbDecisionTree.h.

---

The documentation for this class was generated from the following files:

• otbDecisionTree.h
• otbDecisionTree.hxx
