OTB  9.0.0
Orfeo Toolbox
Public Types | Public Member Functions | Static Public Member Functions | Static Public Attributes | Protected Member Functions | Private Member Functions | List of all members
otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage > Class Template Reference
Data Processing Objects » Filters » Image Filters » Image Enhancement FiltersData Processing Objects » Filters » Image Filters » Intensity Image Filters » | Mathematical Morphology Image FiltersGroup Core » | Module OTBLabelMap

#include <otbBandsStatisticsAttributesLabelMapFilter.h>

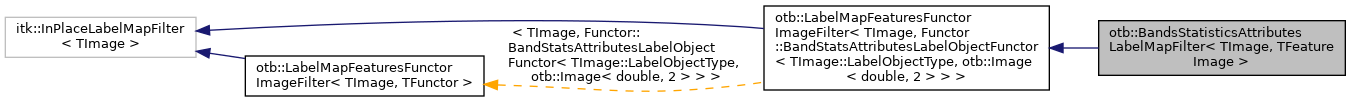

+ Inheritance diagram for otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >:

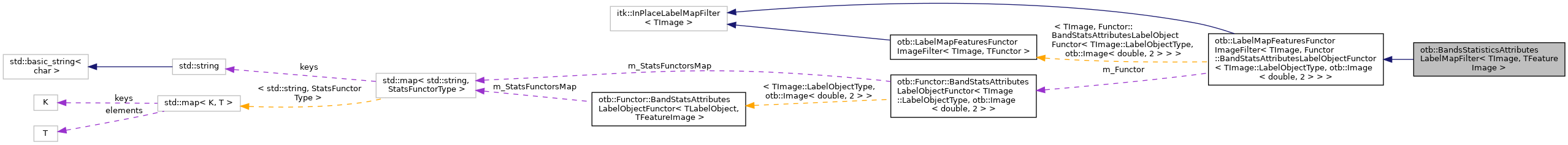

+ Collaboration diagram for otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >:

Public Types

typedef itk::SmartPointer< const Self > ConstPointer

typedef TFeatureImage FeatureImageType

typedef FeatureImageType::InternalPixelType FeatureInternalPixelType

typedef Functor::BandStatsAttributesLabelObjectFunctor< LabelObjectType, InternalImageType > FunctorType

typedef ImageType::Pointer ImagePointer

typedef TImage ImageType

typedef ImageType::RegionType InputImageRegionType

typedef Image< InternalPrecisionType, 2 > InternalImageType

typedef double InternalPrecisionType

typedef ImageType::LabelObjectType LabelObjectType

typedef itk::SmartPointer< Self > Pointer

typedef BandsStatisticsAttributesLabelMapFilter Self

typedef LabelMapFeaturesFunctorImageFilter< ImageType, FunctorType > Superclass

- Public Types inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::BandStatsAttributesLabelObjectFunctor< TImage::LabelObjectType, otb::Image< double, 2 > > >
typedef itk::SmartPointer< const Self > ConstPointer

typedef Functor::BandStatsAttributesLabelObjectFunctor< TImage::LabelObjectType, otb::Image< double, 2 > > FunctorType

typedef TImage ImageType

typedef ImageType::LabelObjectType LabelObjectType

typedef itk::SmartPointer< Self > Pointer

typedef LabelMapFeaturesFunctorImageFilter Self

typedef itk::InPlaceLabelMapFilter< TImage > Superclass


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

const FeatureImageType * GetFeatureImage () const

virtual const char * GetNameOfClass () const

virtual void ReducedAttributeSetOff ()

virtual void ReducedAttributeSetOn ()

void SetFeatureImage (const TFeatureImage *input)

- Public Member Functions inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::BandStatsAttributesLabelObjectFunctor< TImage::LabelObjectType, otb::Image< double, 2 > > >
virtual const char * GetNameOfClass () const

void SetFunctor (FunctorType &functor)

const FunctorType & GetFunctor () const

FunctorType & GetFunctor ()


Static Public Member Functions

static Pointer New ()


Static Public Attributes

static const unsigned int ImageDimension = TImage::ImageDimension

- Static Public Attributes inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::BandStatsAttributesLabelObjectFunctor< TImage::LabelObjectType, otb::Image< double, 2 > > >
static const unsigned int ImageDimension


Protected Member Functions

 BandsStatisticsAttributesLabelMapFilter ()

void EnlargeOutputRequestedRegion (itk::DataObject *) override

 ~BandsStatisticsAttributesLabelMapFilter () override

- Protected Member Functions inherited from otb::LabelMapFeaturesFunctorImageFilter< TImage, Functor::BandStatsAttributesLabelObjectFunctor< TImage::LabelObjectType, otb::Image< double, 2 > > >
 LabelMapFeaturesFunctorImageFilter ()

 ~LabelMapFeaturesFunctorImageFilter () override

void ThreadedProcessLabelObject (LabelObjectType *labelObject) override

void PrintSelf (std::ostream &os, itk::Indent indent) const override


Private Member Functions

 BandsStatisticsAttributesLabelMapFilter (const Self &)=delete

void operator= (const Self &)=delete

void SetReducedAttributeSet (bool flag)

bool GetReducedAttributeSet () const

void AllocateOutputs () override

void GenerateInputRequestedRegion () override

void BeforeThreadedGenerateData () override

void PrintSelf (std::ostream &os, itk::Indent indent) const override


Detailed Description

template<class TImage, class TFeatureImage>
class otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >

This filter computes band statistics attributes for each object.

Images are supposed to be compatible with otb::VectorImage

This filter internally applies the StatisticsAttributesLabelMapFilter on each channel independently

The feature name is constructed as: 'STATS' + '::' + 'Band' + band_index + '::' + statistic_name

The ReducedAttributesSet flag allows telling the internal statistics filter to compute only the main attributes (mean, variance, skewness and kurtosis).

See also
MultiStatsAttributesLabelObjectFunctor AttributesMapLabelObject

Definition at line 139 of file otbBandsStatisticsAttributesLabelMapFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TImage , class TFeatureImage >
typedef itk::SmartPointer<const Self> otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ConstPointer

Definition at line 160 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ FeatureImageType

template<class TImage , class TFeatureImage >
typedef TFeatureImage otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::FeatureImageType

Definition at line 148 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ FeatureInternalPixelType

template<class TImage , class TFeatureImage >
typedef FeatureImageType::InternalPixelType otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::FeatureInternalPixelType

Definition at line 149 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ FunctorType

template<class TImage , class TFeatureImage >
typedef Functor::BandStatsAttributesLabelObjectFunctor<LabelObjectType, InternalImageType> otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::FunctorType

Functor typedef

Definition at line 154 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ ImagePointer

template<class TImage , class TFeatureImage >
typedef ImageType::Pointer otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ImagePointer

Definition at line 161 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ ImageType

template<class TImage , class TFeatureImage >
typedef TImage otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ImageType

Some convenient typedefs.

Definition at line 145 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ InputImageRegionType

template<class TImage , class TFeatureImage >
typedef ImageType::RegionType otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::InputImageRegionType

Definition at line 146 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ InternalImageType

template<class TImage , class TFeatureImage >
typedef Image<InternalPrecisionType, 2> otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::InternalImageType

Definition at line 151 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ InternalPrecisionType

template<class TImage , class TFeatureImage >
typedef double otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::InternalPrecisionType

Definition at line 150 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ LabelObjectType

template<class TImage , class TFeatureImage >
typedef ImageType::LabelObjectType otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::LabelObjectType

Definition at line 147 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ Pointer

template<class TImage , class TFeatureImage >
typedef itk::SmartPointer<Self> otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::Pointer

Definition at line 159 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ Self

template<class TImage , class TFeatureImage >
typedef BandsStatisticsAttributesLabelMapFilter otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::Self

Standard class typedefs.

Definition at line 157 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ Superclass

template<class TImage , class TFeatureImage >
typedef LabelMapFeaturesFunctorImageFilter<ImageType, FunctorType> otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::Superclass

Definition at line 158 of file otbBandsStatisticsAttributesLabelMapFilter.h.

Constructor & Destructor Documentation

◆ BandsStatisticsAttributesLabelMapFilter() [1/2]

template<class TImage , class TFeatureImage >
otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::BandsStatisticsAttributesLabelMapFilter
protected

Constructor

Definition at line 149 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ ~BandsStatisticsAttributesLabelMapFilter()

template<class TImage , class TFeatureImage >
otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::~BandsStatisticsAttributesLabelMapFilter ( )
inlineoverrideprotected

Destructor

Definition at line 191 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ BandsStatisticsAttributesLabelMapFilter() [2/2]

template<class TImage , class TFeatureImage >
otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::BandsStatisticsAttributesLabelMapFilter ( const Self &  )
privatedelete

Member Function Documentation

◆ AllocateOutputs()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::AllocateOutputs
overrideprotected

Set the reduced attribute set

Definition at line 191 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ BeforeThreadedGenerateData()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::BeforeThreadedGenerateData
overrideprotected

Before threaded data generation

Definition at line 240 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ CreateAnother()

template<class TImage , class TFeatureImage >
virtual::itk::LightObject::Pointer otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::CreateAnother ( void  ) const

◆ EnlargeOutputRequestedRegion()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::EnlargeOutputRequestedRegion ( itk::DataObject *  )
inlineoverrideprotected

Definition at line 199 of file otbBandsStatisticsAttributesLabelMapFilter.h.

◆ GenerateInputRequestedRegion()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GenerateInputRequestedRegion
overrideprotected

Set the reduced attribute set

Definition at line 233 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ GetFeatureImage()

template<class TImage , class TFeatureImage >
const BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::FeatureImageType * otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetFeatureImage

Get the feature image

Definition at line 165 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ GetNameOfClass()

template<class TImage , class TFeatureImage >
virtual const char* otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetNameOfClass ( ) const
virtual

Runtime information support.

◆ GetReducedAttributeSet()

template<class TImage , class TFeatureImage >
bool otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetReducedAttributeSet

Get the reduced attribute set

Definition at line 184 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

References otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetReducedAttributeSet().

Referenced by otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::GetReducedAttributeSet().

◆ New()

template<class TImage , class TFeatureImage >
static Pointer otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::New ( )
static

Standard New method.

◆ operator=()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::operator= ( const Self &  )
privatedelete

◆ PrintSelf()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

PrintSelf method

Definition at line 268 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ ReducedAttributeSetOff()

template<class TImage , class TFeatureImage >
virtual void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ReducedAttributeSetOff ( )
virtual

◆ ReducedAttributeSetOn()

template<class TImage , class TFeatureImage >
virtual void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ReducedAttributeSetOn ( )
virtual

◆ SetFeatureImage()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetFeatureImage ( const TFeatureImage *  input)

Set the feature image

Definition at line 156 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

◆ SetReducedAttributeSet()

template<class TImage , class TFeatureImage >
void otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetReducedAttributeSet ( bool  flag)

Set the reduced attribute set

Definition at line 172 of file otbBandsStatisticsAttributesLabelMapFilter.hxx.

References otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetReducedAttributeSet().

Referenced by otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::SetReducedAttributeSet().

Member Data Documentation

◆ ImageDimension

template<class TImage , class TFeatureImage >
const unsigned int otb::BandsStatisticsAttributesLabelMapFilter< TImage, TFeatureImage >::ImageDimension = TImage::ImageDimension
static

ImageDimension constants

Definition at line 164 of file otbBandsStatisticsAttributesLabelMapFilter.h.

The documentation for this class was generated from the following files:
