#include <otbBSplineDecompositionImageFilter.h>

Inheritance diagram for otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >:

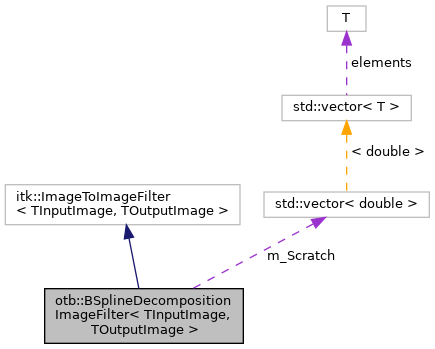

Collaboration diagram for otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef Superclass::InputImageConstPointer	InputImageConstPointer

typedef Superclass::InputImagePointer	InputImagePointer

typedef Superclass::InputImageType	InputImageType

typedef Superclass::OutputImagePointer	OutputImagePointer

typedef itk::SmartPointer< Self >	Pointer

typedef BSplineDecompositionImageFilter	Self

typedef itk::ImageToImageFilter< TInputImage, TOutputImage >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

Static Public Member Functions
static Pointer	New ()

typedef itk::ImageLinearIteratorWithIndex< TOutputImage >	OutputLinearIterator

static const unsigned int	ImageDimension = TInputImage::ImageDimension

static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension

std::vector< double >	m_Scratch

TInputImage::SizeType	m_DataLength

unsigned int	m_SplineOrder

double	m_SplinePoles [3]

int	m_NumberOfPoles

double	m_Tolerance

unsigned int	m_IteratorDirection

void	SetSplineOrder (unsigned int SplineOrder)

virtual int	GetSplineOrder ()

	BSplineDecompositionImageFilter ()

	~BSplineDecompositionImageFilter () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

void	GenerateData () override

	BSplineDecompositionImageFilter (const Self &)=delete

void	operator= (const Self &)=delete

virtual void	SetPoles ()

virtual bool	DataToCoefficients1D ()

void	DataToCoefficientsND ()

virtual void	SetInitialCausalCoefficient (double z)

virtual void	SetInitialAntiCausalCoefficient (double z)

void	CopyImageToImage ()

void	CopyCoefficientsToScratch (OutputLinearIterator &)

void	CopyScratchToCoefficients (OutputLinearIterator &)

Detailed Description

template<class TInputImage, class TOutputImage>
class otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >

This class is an evolution of the itk::BSplineDecompositionImageFilter to handle huge images with this interpolator. For more documentation, please refer to the original class.

See also: itk::BSplineDecompositionImageFilter

Definition at line 43 of file otbBSplineDecompositionImageFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImage , class TOutputImage >

typedef itk::SmartPointer<const Self> otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::ConstPointer

Definition at line 50 of file otbBSplineDecompositionImageFilter.h.

◆ InputImageConstPointer

template<class TInputImage , class TOutputImage >

typedef Superclass::InputImageConstPointer otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::InputImageConstPointer

Definition at line 61 of file otbBSplineDecompositionImageFilter.h.

◆ InputImagePointer

template<class TInputImage , class TOutputImage >

typedef Superclass::InputImagePointer otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::InputImagePointer

Definition at line 60 of file otbBSplineDecompositionImageFilter.h.

◆ InputImageType

template<class TInputImage , class TOutputImage >

typedef Superclass::InputImageType otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::InputImageType

Inherit input and output image types from Superclass.

Definition at line 56 of file otbBSplineDecompositionImageFilter.h.

◆ OutputImagePointer

template<class TInputImage , class TOutputImage >

typedef Superclass::OutputImagePointer otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::OutputImagePointer

Definition at line 62 of file otbBSplineDecompositionImageFilter.h.

◆ OutputLinearIterator

template<class TInputImage , class TOutputImage >

typedef itk::ImageLinearIteratorWithIndex<TOutputImage> otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::OutputLinearIterator

Iterator typedef support

Definition at line 70 of file otbBSplineDecompositionImageFilter.h.

◆ Pointer

template<class TInputImage , class TOutputImage >

typedef itk::SmartPointer<Self> otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::Pointer

Definition at line 49 of file otbBSplineDecompositionImageFilter.h.

◆ Self

template<class TInputImage , class TOutputImage >

typedef BSplineDecompositionImageFilter otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::Self

Standard class typedefs.

Definition at line 47 of file otbBSplineDecompositionImageFilter.h.

◆ Superclass

template<class TInputImage , class TOutputImage >

typedef itk::ImageToImageFilter<TInputImage, TOutputImage> otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::Superclass

Definition at line 48 of file otbBSplineDecompositionImageFilter.h.

Constructor & Destructor Documentation

◆ BSplineDecompositionImageFilter() [1/2]

template<class TInputImage , class TOutputImage >

otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::BSplineDecompositionImageFilter

protected

Constructor

Definition at line 36 of file otbBSplineDecompositionImageFilter.hxx.

◆ ~BSplineDecompositionImageFilter()

template<class TInputImage , class TOutputImage >

otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::~BSplineDecompositionImageFilter ( )

inlineoverrideprotected

Iterator typedef support

Definition at line 80 of file otbBSplineDecompositionImageFilter.h.

◆ BSplineDecompositionImageFilter() [2/2]

template<class TInputImage , class TOutputImage >

otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::BSplineDecompositionImageFilter ( const Self & )

privatedelete

Iterator typedef support

Member Function Documentation

◆ CopyCoefficientsToScratch()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::CopyCoefficientsToScratch ( OutputLinearIterator & Iter )

private

Copies a vector of data from the Coefficients image to the m_Scratch vector.

Copy one line of the output image to the scratch

Definition at line 301 of file otbBSplineDecompositionImageFilter.hxx.

◆ CopyImageToImage()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::CopyImageToImage

private

Used to initialize the Coefficients image before calculation.

Copy the input image into the output image

Definition at line 259 of file otbBSplineDecompositionImageFilter.hxx.

◆ CopyScratchToCoefficients()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::CopyScratchToCoefficients ( OutputLinearIterator & Iter )

private

Copies a vector of data from m_Scratch to the Coefficients image.

Copy the scratch to one line of the output image

Definition at line 284 of file otbBSplineDecompositionImageFilter.hxx.

◆ CreateAnother()

template<class TInputImage , class TOutputImage >

virtual::itk::LightObject::Pointer otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::CreateAnother ( void ) const

◆ DataToCoefficients1D()

template<class TInputImage , class TOutputImage >

bool otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::DataToCoefficients1D

privatevirtual

Converts a vector of data to a vector of Spline coefficients.

Definition at line 58 of file otbBSplineDecompositionImageFilter.hxx.

◆ DataToCoefficientsND()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::DataToCoefficientsND

private

Converts an N-dimension image of data to an equivalent sized image of spline coefficients.

Definition at line 215 of file otbBSplineDecompositionImageFilter.hxx.

◆ GenerateData()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::GenerateData

overrideprotected

Generate data

Definition at line 317 of file otbBSplineDecompositionImageFilter.hxx.

◆ GetNameOfClass()

template<class TInputImage , class TOutputImage >

virtual const char* otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

◆ GetSplineOrder()

template<class TInputImage , class TOutputImage >

virtual int otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::GetSplineOrder ( )

virtual

Iterator typedef support

◆ New()

template<class TInputImage , class TOutputImage >

static Pointer otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::New ( )

static

New macro for creation of through a Smart Pointer

◆ operator=()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::operator= ( const Self & )

privatedelete

Iterator typedef support

◆ PrintSelf()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::PrintSelf	(	std::ostream &	os,
		itk::Indent	indent
	)		const

overrideprotected

Standard "PrintSelf" method

Definition at line 50 of file otbBSplineDecompositionImageFilter.hxx.

◆ SetInitialAntiCausalCoefficient()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::SetInitialAntiCausalCoefficient ( double z )

privatevirtual

Determines the first coefficient for the anti-causal filtering of the data.

Definition at line 205 of file otbBSplineDecompositionImageFilter.hxx.

◆ SetInitialCausalCoefficient()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::SetInitialCausalCoefficient ( double z )

privatevirtual

Determines the first coefficient for the causal filtering of the data.

Definition at line 161 of file otbBSplineDecompositionImageFilter.hxx.

◆ SetPoles()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::SetPoles

privatevirtual

Determines the poles given the Spline Order.

Definition at line 119 of file otbBSplineDecompositionImageFilter.hxx.

◆ SetSplineOrder()

template<class TInputImage , class TOutputImage >

void otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::SetSplineOrder ( unsigned int SplineOrder )

Get/Sets the Spline Order, supports 0th - 5th order splines. The default is a 3rd order spline.

Definition at line 107 of file otbBSplineDecompositionImageFilter.hxx.

Member Data Documentation

◆ ImageDimension

template<class TInputImage , class TOutputImage >

const unsigned int otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::ImageDimension = TInputImage::ImageDimension

static

Dimension underlying input image.

Definition at line 65 of file otbBSplineDecompositionImageFilter.h.

◆ m_DataLength

template<class TInputImage , class TOutputImage >

TInputImage::SizeType otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::m_DataLength

protected

Iterator typedef support

Definition at line 89 of file otbBSplineDecompositionImageFilter.h.

◆ m_IteratorDirection

template<class TInputImage , class TOutputImage >

unsigned int otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::m_IteratorDirection

protected

Iterator typedef support

Definition at line 94 of file otbBSplineDecompositionImageFilter.h.

◆ m_NumberOfPoles

template<class TInputImage , class TOutputImage >

int otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::m_NumberOfPoles

protected

Iterator typedef support

Definition at line 92 of file otbBSplineDecompositionImageFilter.h.

◆ m_Scratch

template<class TInputImage , class TOutputImage >

std::vector<double> otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::m_Scratch

protected

These are needed by the smoothing spline routine.

Definition at line 88 of file otbBSplineDecompositionImageFilter.h.

◆ m_SplineOrder

template<class TInputImage , class TOutputImage >

unsigned int otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::m_SplineOrder

protected

Iterator typedef support

Definition at line 90 of file otbBSplineDecompositionImageFilter.h.

◆ m_SplinePoles

template<class TInputImage , class TOutputImage >

double otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::m_SplinePoles[3]

protected

Iterator typedef support

Definition at line 91 of file otbBSplineDecompositionImageFilter.h.

◆ m_Tolerance

template<class TInputImage , class TOutputImage >

double otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::m_Tolerance

protected

Iterator typedef support

Definition at line 93 of file otbBSplineDecompositionImageFilter.h.

◆ OutputImageDimension

template<class TInputImage , class TOutputImage >

const unsigned int otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >::OutputImageDimension = TOutputImage::ImageDimension

static

Iterator typedef support

Definition at line 66 of file otbBSplineDecompositionImageFilter.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

template<class TInputImage, class TOutputImage> class otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >

Member Typedef Documentation

◆ ConstPointer

◆ InputImageConstPointer

◆ InputImagePointer

◆ InputImageType

◆ OutputImagePointer

◆ OutputLinearIterator

◆ Pointer

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ BSplineDecompositionImageFilter() [1/2]

◆ ~BSplineDecompositionImageFilter()

◆ BSplineDecompositionImageFilter() [2/2]

Member Function Documentation

◆ CopyCoefficientsToScratch()

◆ CopyImageToImage()

◆ CopyScratchToCoefficients()

◆ CreateAnother()

◆ DataToCoefficients1D()

◆ DataToCoefficientsND()

◆ GenerateData()

◆ GetNameOfClass()

◆ GetSplineOrder()

◆ New()

◆ operator=()

◆ PrintSelf()

◆ SetInitialAntiCausalCoefficient()

◆ SetInitialCausalCoefficient()

◆ SetPoles()

◆ SetSplineOrder()

Member Data Documentation

◆ ImageDimension

◆ m_DataLength

◆ m_IteratorDirection

◆ m_NumberOfPoles

◆ m_Scratch

◆ m_SplineOrder

◆ m_SplinePoles

◆ m_Tolerance

◆ OutputImageDimension

template<class TInputImage, class TOutputImage>
class otb::BSplineDecompositionImageFilter< TInputImage, TOutputImage >
